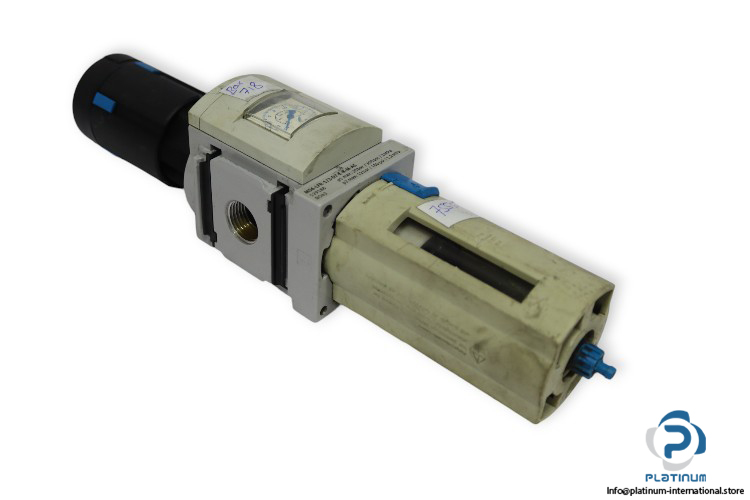

Festo 529188 Filter Regulator

Manufacturer: FESTO
Type: filter regulator

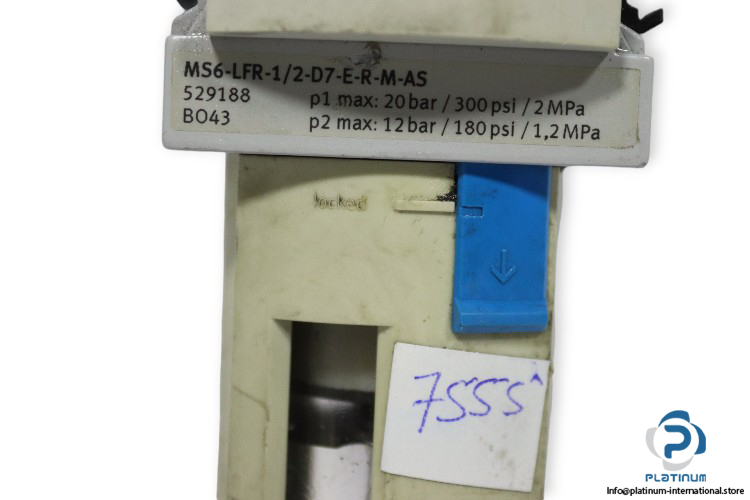

Model: MS6-LFR-1/2-D7-ERM-AS
part no.: 529188

Size: 6
Actuator lock: Rotary knob with detent
Mounting position: Vertical +/- 5°
Grade of filtration: 40 µm
Condensate drain: Manually rotating

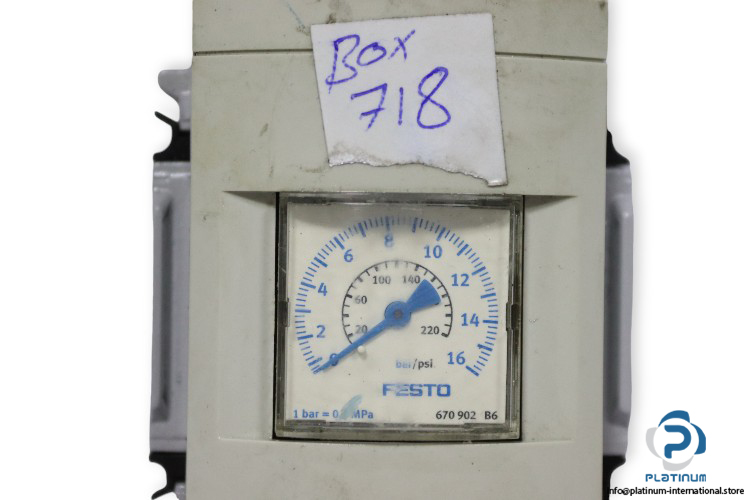

Structural design: Filter regulator with pressure gauge
Max. condensate volume: 38 ml
Controller function: Outlet pressure constant
Bowl guard: Plastic bowl guard
Operating pressure: 0.8 bar … 20 bar
Pressure regulation range: 0.5 bar … 12 bar
Max. pressure hysteresis: 0.025 MPa
