Festo 529539 On/Off Valve
Gebraucht
Auf Lager1 EinheitVersandbereit

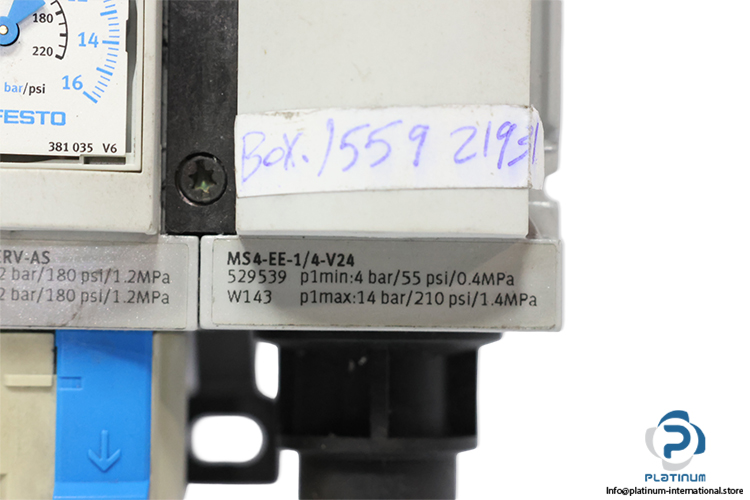

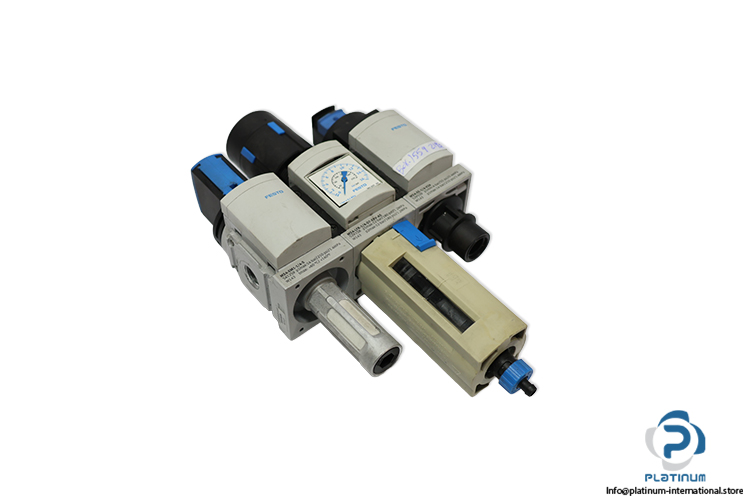

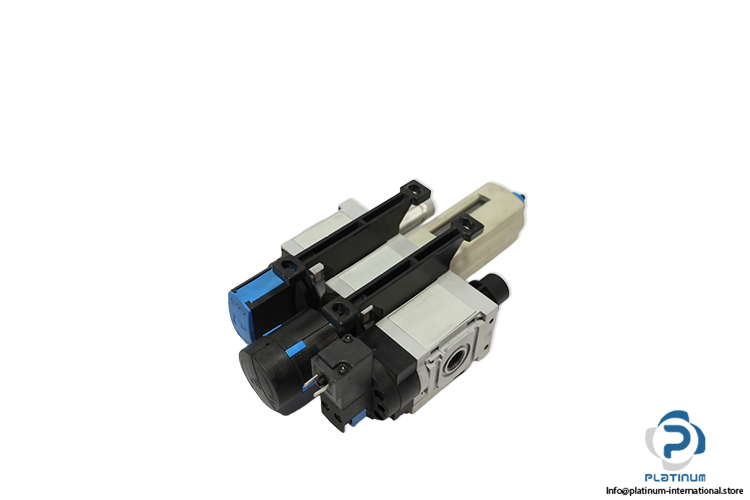

On/Off Valve The FESTO MS4-EE-1/4-V24 is an electrically actuated pneumatic on/off valve with a 2000 l/min flow rate, supplied with a filter regulator, manual valve, and 24 V DC solenoid coil.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Part No. | 529539 |
| Series | MS |
| Size | 9 |
| Fluid | Air |
| Design | Piston slide |
| Function | 3/2 closed, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 4 … 14 bar |
| Nominal Flow Rate | 2000 l/min |
| Pneumatic Connection | G1/4 |
| Material | Die-Cast Aluminum |
| Ambient Temperature | -10 … 60 °C |

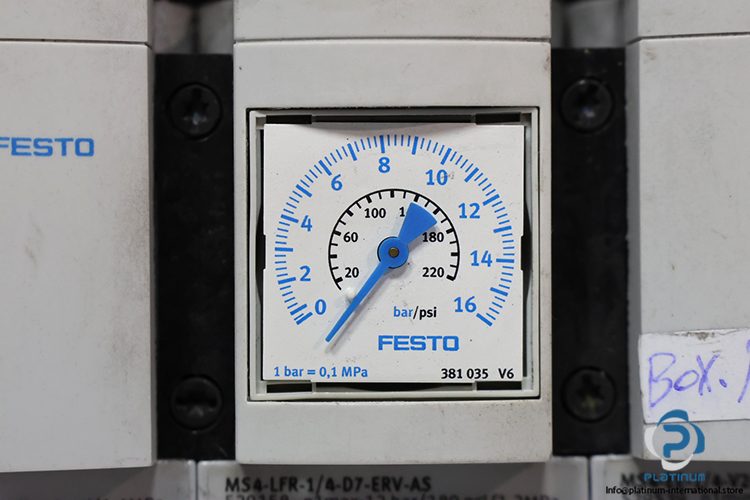

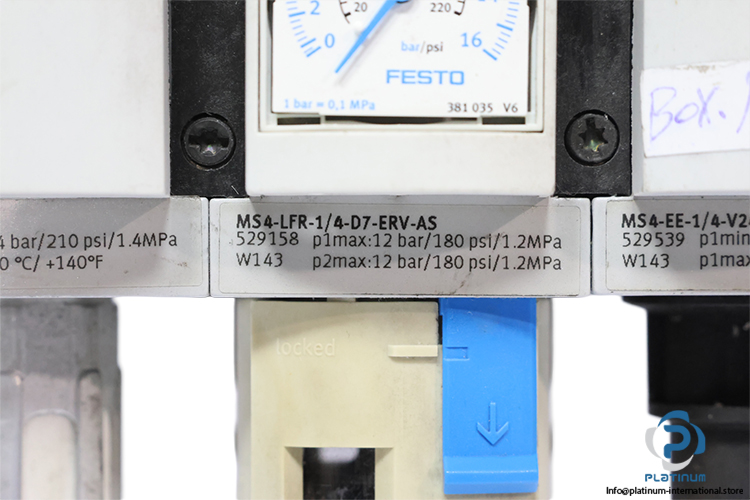

| Attachment 1 | FESTO 529158 FILTER REGULATOR |
| Filter Regulator Manufacturer | FESTO |
| Attachment 1 Type | Filter Regulator |
| Filter Regulator Model | MS4-LFR-1/4-D7-ERV-AS |
| Filter Regulator Part No. | 529158 |
| Filter Regulator Media | Compressed Air |
| Filter Regulator Size | 4 |
| Filter Regulator Actuator Lock | Rotary Knob with Detent |
| Filter Regulator Operating Pressure | 2 … 12 bar |
| Filter Regulator Pressure Regulation Range | 0.5 … 12 bar |
| Filter Regulator Pressure P1/2 Max. | 12 bar / 175 psi / 1.2 MPa |
| Filter Regulator Condensate Volume Max. | 19 ml |
| Filter Regulator Filtration Grade | 40 µm |
| Filter Regulator Flow Rate | 1500 l/min |
| Filter Regulator Pneumatic Connection | G1/4 |
| Filter Regulator Material | Die-Cast Aluminum |
| Filter Regulator Temperature Range | -10 … 60°C |

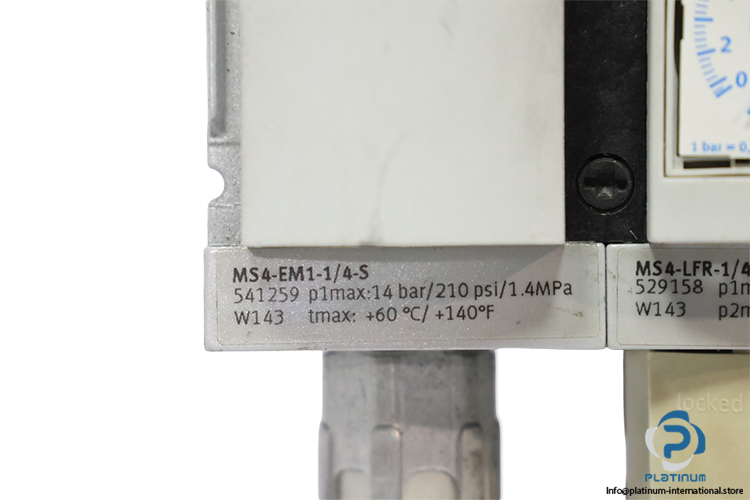

| Attachment 2 | FESTO 541259 ON/OFF VALVE |
| On/Off Valve Manufacturer | FESTO |
| Attachment 2 Type | On/Off Valve |
| On/Off Valve Model | MS4-EM1-1/4-S |
| On/Off Valve Part No. | 541259 |
| On/Off Valve Series | MS |
| On/Off Valve Operating Medium | Compressed Air |
| On/Off Valve Design | Rotary Vane |
| On/Off Valve Function | 3/2-Way, Bistable |
| On/Off Valve Actuation Type | Manual |
| On/Off Valve Operating Pressure Range | 0 ... 14 bar |
| On/Off Valve Pressure P1 Max. | 14 bar / 210 psi / 1.4MPa |
| On/Off Valve Nominal Flow Rate | 2200 l/min |
| On/Off Valve Material | Die-Cast Aluminum |
| On/Off Valve Port Size | G1/4 |
| On/Off Valve Ambient Temperature | -10 … 60 °C |

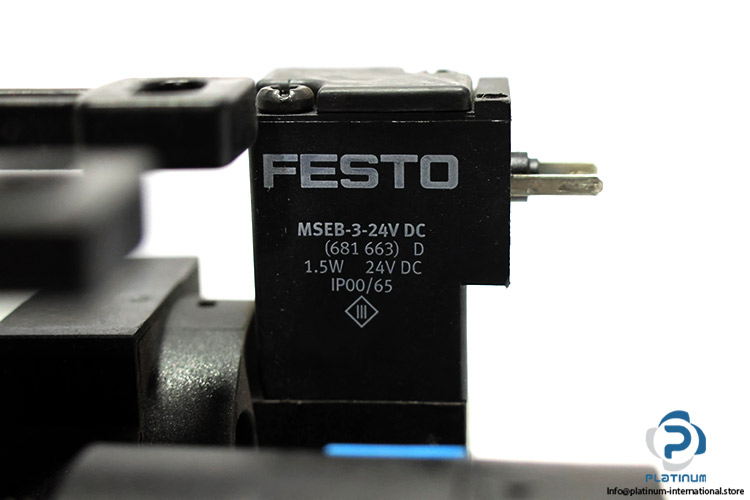

| Attachment 3 | FESTO 681 663 SOLENOID COIL |
| Solenoid Coil Manufacturer | FESTO |
| Attachment 3 Type | Solenoid Coil 1 |
| Solenoid Coil Model | MSEB-3-24V DC |
| Solenoid Coil Part No. | 681 663 |
| Solenoid Coil Supply Voltage | 24 V DC |
| Solenoid Coil Power Consumption | 1.5 W |
| Solenoid Coil Protection Class | IP00/ IP65 |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1104353 |
| Weight | 0,85 |
