Festo 532737 ISO Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
ISO Cylinder
FESTO DNCB-40-25-PPV-A ISO Cylinder is a high-precision pneumatic actuator designed for industrial applications. Featuring a 40 mm bore diameter, 25 mm stroke, and a double-acting operation, it ensures efficient motion control. Equipped with a G 1/8 pneumatic connection and a male piston rod end, it offers superior durability and reliability.1/825mm40mmActuatorAutomationboreconnectionCylinderDNCB-40-25-PPV-Adouble-actingFestoGhigh-pressureIndustrialISOPneumaticprecisiShapeSquareStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

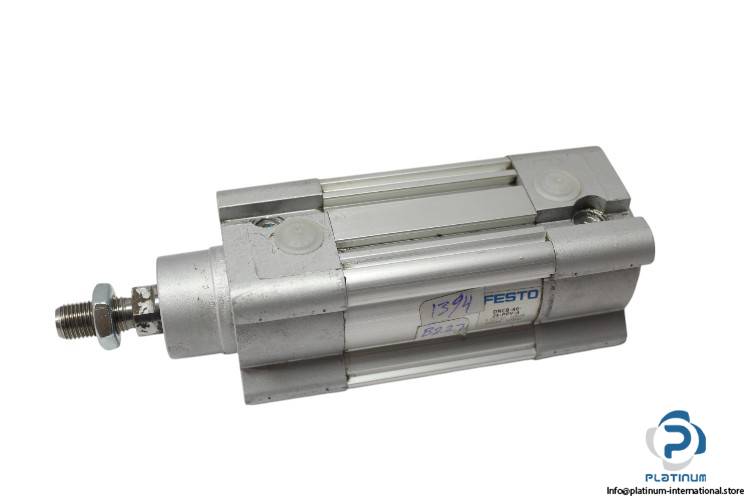

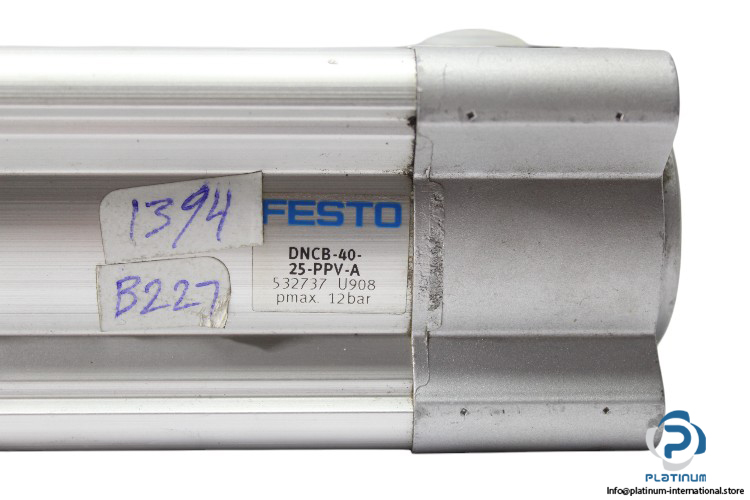

FESTO DNCB-40-25-PPV-A ISO Cylinder
The FESTO DNCB-40-25-PPV-A ISO Cylinder is a high-precision pneumatic actuator designed for industrial automation, providing reliable and efficient motion control. Its robust construction and compliance with ISO standards make it suitable for demanding applications.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DNCB-40-25-PPV-A
Part No.: 532737
| Media | Compressed Air |
| Bore Diameter | 40 mm |
| Stroke | 25 mm |
| Bore x Stroke | 40 x 25 mm |
| Rod Diameter | 16 mm |
| Frame Dimensions | 53 x 155 mm |
| Pneumatic Connection | G 1/8 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
