Festo 532755 ISO Cylinder
Gebraucht
Auf Lager5 EinheitenVersandbereit
ISO Cylinder
FESTO DNCB-50-125-PPV-A ISO Cylinder is a high-precision pneumatic actuator designed for industrial applications. Featuring a 50 mm bore, 125 mm stroke, and double-acting operation, it ensures optimal force transmission and reliability. The male piston rod end and square frame enhance stability and durability.1/4125mm50mmActuatorAirAutomationboreCompressedconnectionControlCylinderDNCB-50-125-PPV-Adouble-actingFFestoGhigh-performanceIndustrialISOMotionPneumaticPrecisionSquareStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

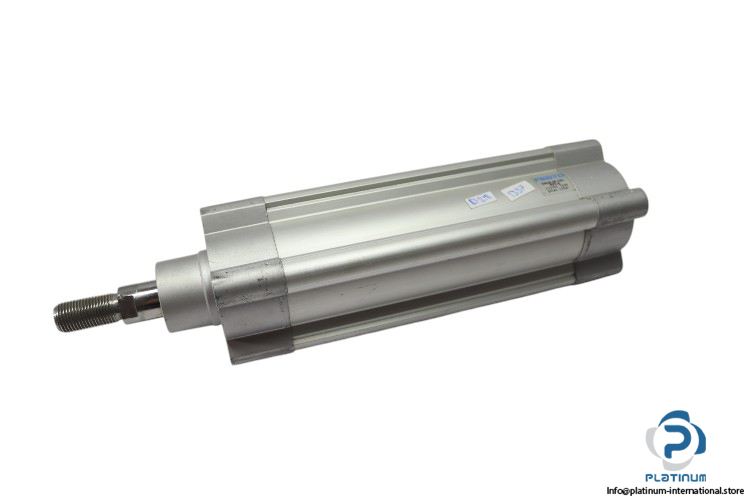

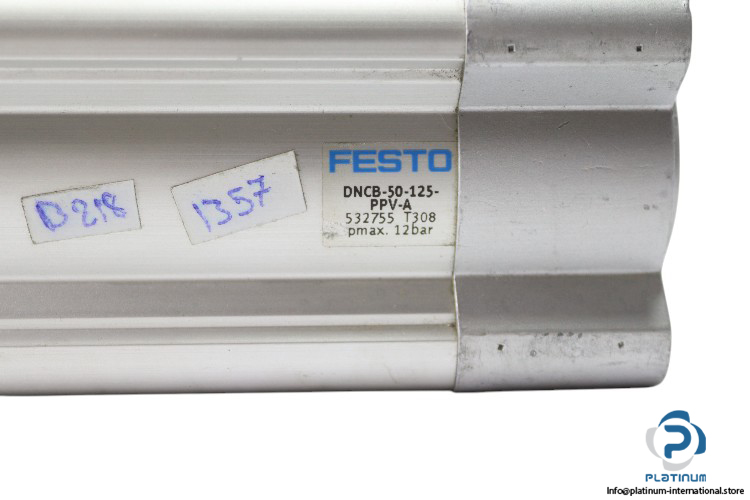

FESTO DNCB-50-125-PPV-A ISO Cylinder
The FESTO DNCB-50-125-PPV-A ISO Cylinder is a high-performance pneumatic actuator engineered for precise motion control in industrial applications. Designed to meet ISO standards, this double-acting cylinder ensures reliability, durability, and efficient operation under demanding conditions.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DNCB-50-125-PPV-A
Part No.: 532755
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke | 125 mm |
| Bore x Stroke | 50 x 125 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 63 x 260 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
