Festo 532767 ISO Cylinder
Gebraucht
Auf Lager3 EinheitenVersandbereit
ISO Cylinder
FESTO DNCB-63-100-PPV-A ISO Cylinder is designed for precise pneumatic motion control. With a 63 mm bore diameter, 100 mm stroke, and double-acting operation, it ensures reliable force transmission. Equipped with a male piston rod end and G 3/8 pneumatic connection, it is ideal for industrial automation.100mm3/863mmActuatorAutomationborecompresseconnectionControlCylinderDNCB-63-100-PPV-Adouble-actingFestoGhigh-performanceIndustrialISOMotionPneumaticSquareStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

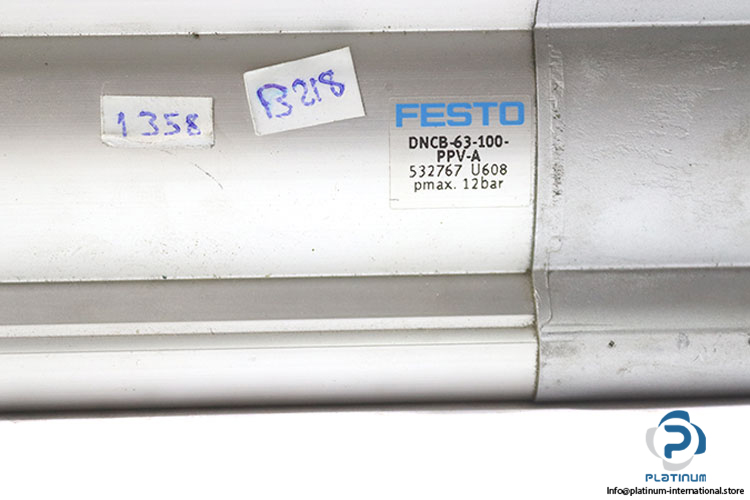

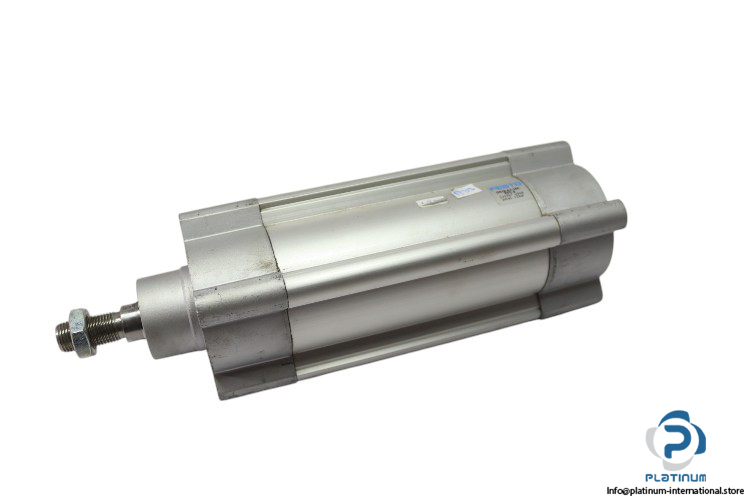

FESTO DNCB-63-100-PPV-A ISO Cylinder
The FESTO DNCB-63-100-PPV-A ISO Cylinder is a high-performance pneumatic actuator designed for industrial applications requiring precision, durability, and efficiency. Engineered to ISO standards, this double-acting cylinder ensures reliable motion control and optimal force transmission in automation systems.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DNCB-63-100-PPV-A
Part No.: 532767
| Media | Compressed Air |
| Bore Diameter | 63 mm |
| Stroke | 100 mm |
| Bore x Stroke | 63 x 100 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 75 x 250 mm |
| Pneumatic Connection | G 3/8 |
| Maximum Pressure | 12 bar |
| Operation Mode | Double-Acting |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
