Festo 536246 Compact Cylinder
Neu
Auf Lager6 EinheitenVersandbereit
Compact Cylinder
FESTO ADN-20-25-I-P-A Compact Cylinder is designed for high-efficiency pneumatic applications. Featuring a 25 mm stroke length, 20 mm piston diameter, and double-acting operation, it ensures smooth and reliable motion control. The female-threaded piston-rod end and compact structure make it suitable for industrial automation.20mm25mm5mmActuatorADN-20-25-I-P-AAutomationCompactconnectionControlCylinderdiameterdouble-actingFemaleFestohigh-performanceHigh-SpeedIndustrialMotionPistonPneumaticRODStrokeThread
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

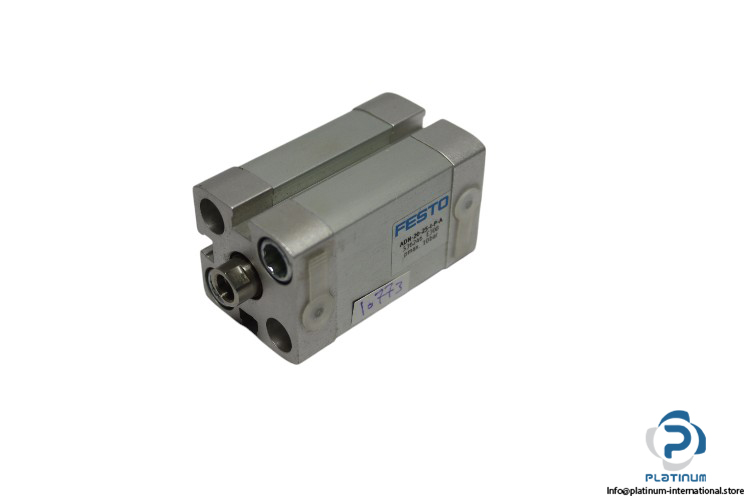

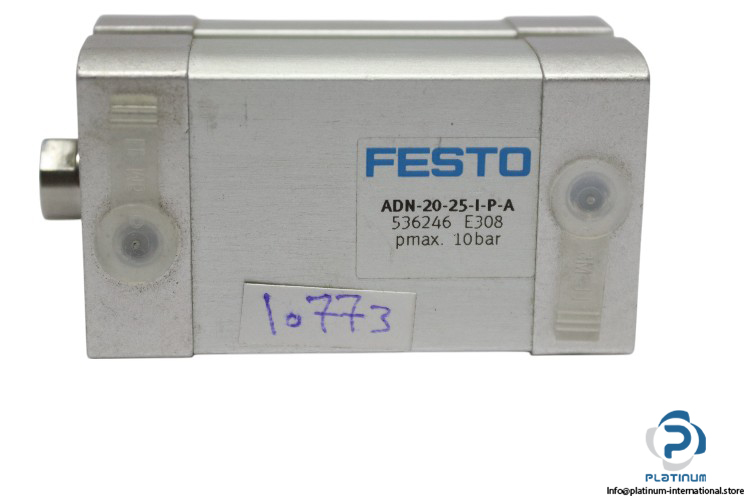

FESTO ADN-20-25-I-P-A Compact Cylinder
The FESTO ADN-20-25-I-P-A Compact Cylinder is a high-precision pneumatic actuator engineered for applications that require compact dimensions and reliable performance. Designed for industrial automation and high-speed motion control, this double-acting cylinder ensures consistent operation with minimal space requirements.
Manufacturer: FESTO
Type: Compact Cylinder
Model: ADN-20-25-I-P-A
Part No.: 536246
| Fluid | Compressed Air |
| Stroke Length | 25 mm |
| Piston Diameter | 20 mm |
| Operating Pressure | 0.6 ... 10 bar |
| Piston-Rod End | Female Thread |
| Operation Mode | Double-Acting |
| Pneumatic Connection | 5 mm |
| Temperature Range | -20 / 80 °C |
