Festo 536277 Compact Cylinder

Name: FESTO 536277 COMPACT CYLINDER
SKU: 1054921
Availability: LimitedAvailability

Neu

Auf Lager2 EinheitenVersandbereit

compact cylinder

The Festo Compact Cylinder ADN-32-80-A-P-A (Part No. 536277) features a 32 mm piston diameter, 80 mm stroke length, and reliable double-acting operation with elastic cushioning for smooth, precise movement.

SKU

1054921

Kategorie

Pneumatic Actuators

Zustand

Neu

32 80 Acting connection Cushioning Cylinder diameter Double Elastic G1/8 Industrial mm Piston Pneumatic Proximity Sensing Stroke

Gebraucht Auf Lager

Dieses Produkt ist auch als gebraucht erhältlich

Gebrauchte Version anzeigen →

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

FESTO COMPACT CYLINDER

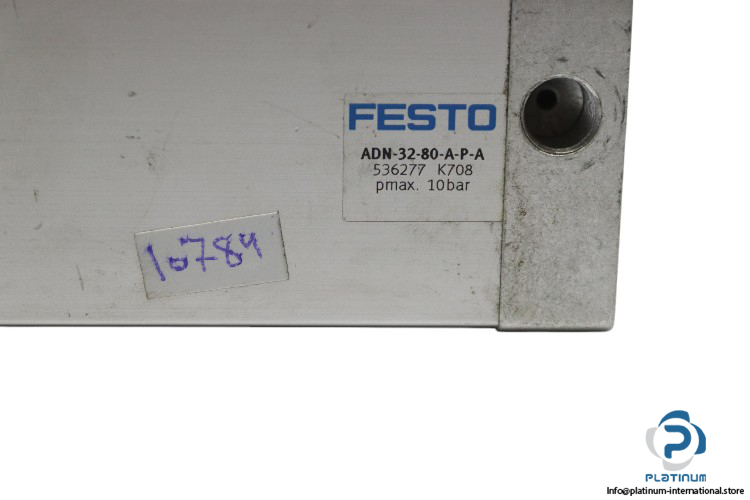

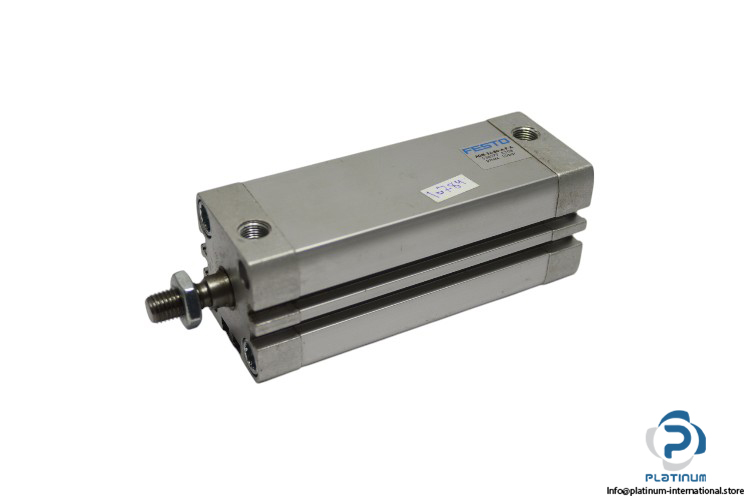

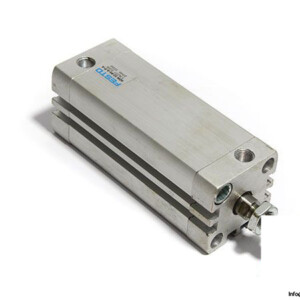

The Festo Compact Cylinder (Model: ADN-32-80-A-P-A, Part No. 536277) is a high-performance pneumatic cylinder designed for reliable operation in industrial automation systems. With a piston diameter of 32 mm and a stroke length of 80 mm, this cylinder provides smooth motion with double-acting operation and elastic cushioning rings for precise control. It is suitable for a wide range of applications, including proximity sensing and systems with a pneumatic connection of G1/8.

Manufacturer: Festo

Type: Compact Cylinder

Model: ADN-32-80-A-P-A

Part No.: 536277

Technical Specifications

Stroke Length: 80 mm
Piston Diameter: 32 mm
Piston Rod Thread: Male
Max. Operating Pressure: 10 bar
Mode of Operation: Double Acting
Material of Cylinder Barrel: Wrought Aluminum Alloy, Smooth-Anodized
Cushioning: Elastic Cushioning Rings/Pads at Both Ends
Position Sensing: For Proximity Sensing
Variant: Piston Rod at One End
Pneumatic Connection: G1/8
Temperature: -20 to 80 °C
