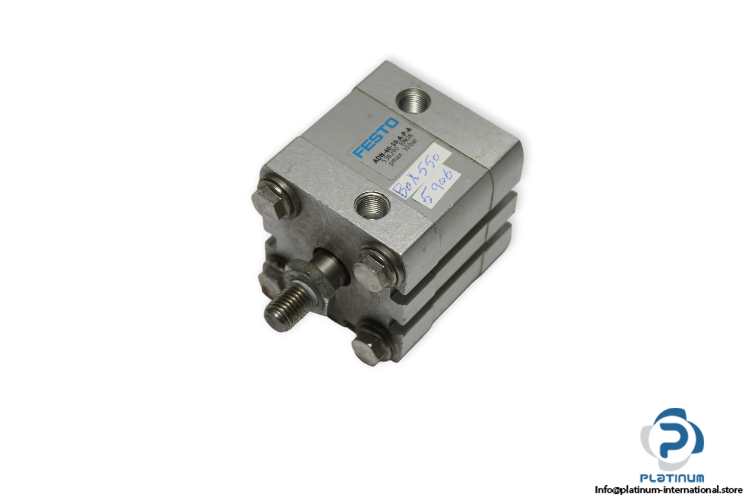

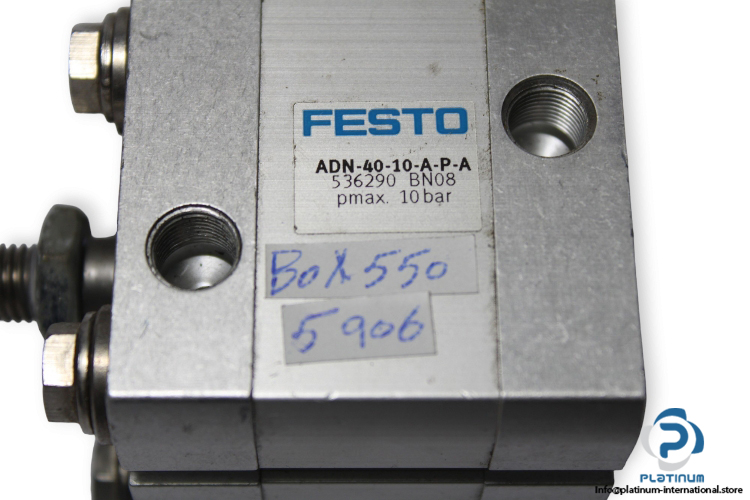

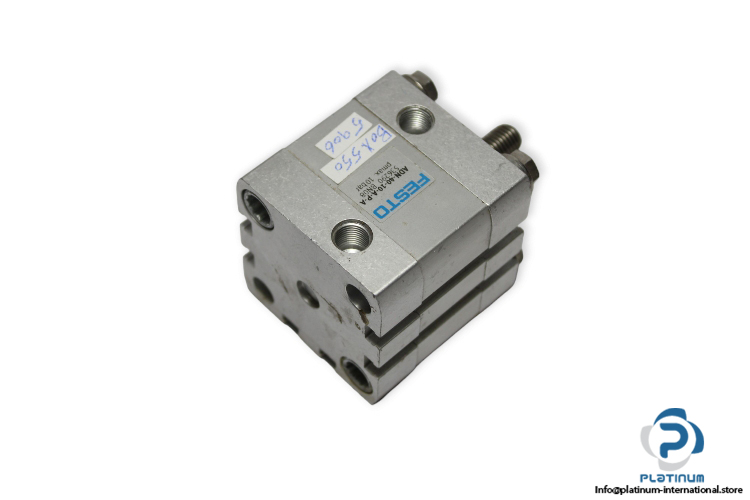

Name: FESTO 536290 COMPACT CYLINDER
SKU: 1041751
Availability: LimitedAvailability

Manufacturer: FESTO
Type: Compact Cylinder
Model: ADN-40-10-A-P-A
Part No.: 536290

Media: Compressed Air
Stroke Length: 10 mm
Piston Diameter: 40 mm
Piston Rod Thread: M10x1.25
Max. Operating Pressure: 0.6 … 10 bar
Max. Operating Pressure: 10 bar
Pneumatic Connection: G 1/8
Mode of operation: Double acting
Cushioning: Elastic cushioning rings/plates at both ends
Ambient Temperature: -20 … 80 °C

Spezifikation	Wert
Weight	0,4 kg
Condition	Used
Type of Product	Compact Cylinder
Shelf No.	240505
Part No.	536290

Preis	Auf Anfrage
Lager	1 Auf Lager
Kategorie	Pneumatic Actuators
Zustand	Gebraucht
SKU	1041751

Weight	0,4 kg
Condition	Used
Type of Product	Compact Cylinder
Shelf No.	240505
Part No.	536290

Festo 536290 Compact Cylinder
