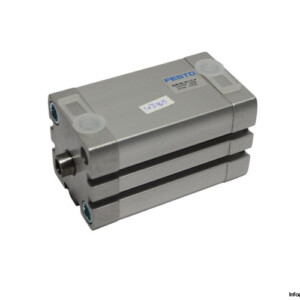

Festo 536306 Compact Cylinder
Gebraucht
Auf Lager6 EinheitenVersandbereit
compact cylinder
The FESTO Compact Cylinder ADN-40-50-I-P-A (Part No. 536306) provides efficient and smooth operation with a 50 mm stroke length, 40 mm piston diameter, and elastic cushioning for industrial pneumatic systems.4050ActingconnectionCushioningCylinderdiameterDoubleElasticG1/8IndustrialmmPistonPneumaticStrokeSystem
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
FESTO COMPACT CYLINDER

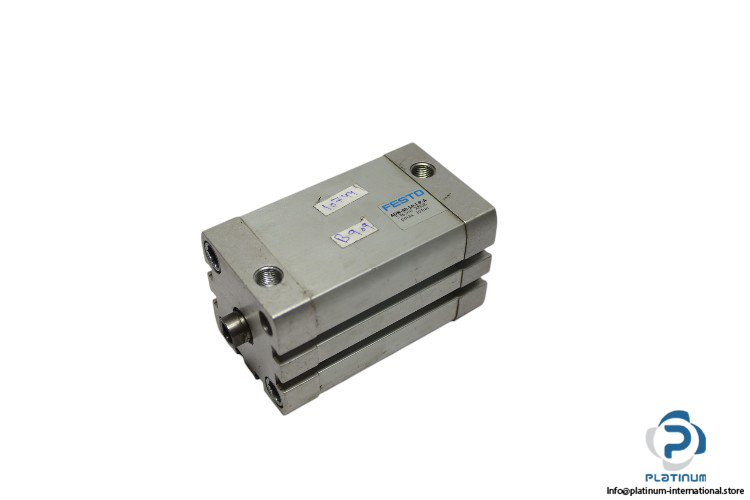

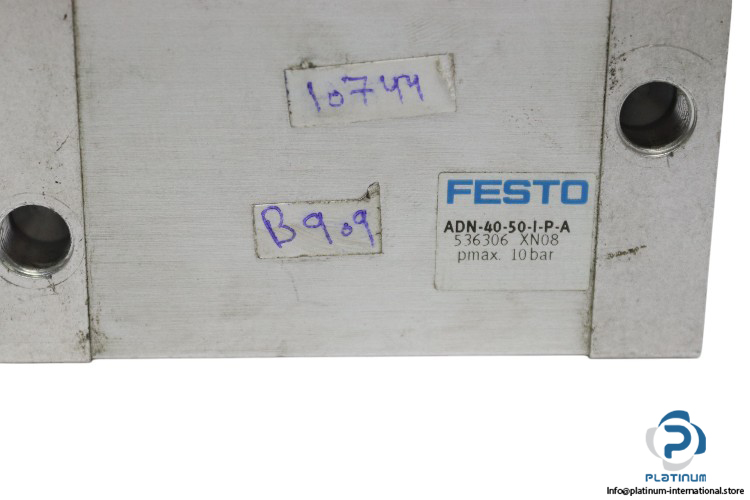

The FESTO Compact Cylinder (Model: ADN-40-50-I-P-A, Part No. 536306) is designed for efficient and reliable motion control in industrial applications. With a 50 mm stroke length and 40 mm piston diameter, this double-acting cylinder offers elastic cushioning at both ends, ensuring smooth operation and durability. It is suitable for use with compressed air and can withstand operating pressures up to 10 bar, making it ideal for a variety of pneumatic systems.
Manufacturer: FESTO
Type: Compact Cylinder
Model: ADN-40-50-I-P-A
Part No.: 536306
Technical Specifications
- Stroke Length: 50 mm
- Piston Diameter: 40 mm
- Piston Rod Thread: Female
- Operating Medium: Compressed air
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensing
- Variant: Piston rod at one end
- Pneumatic Connection: G1/8
- Temperature: -20 … 80 °C
