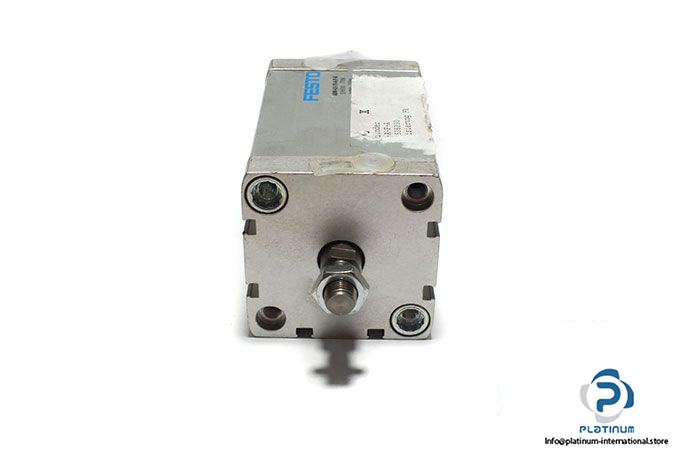

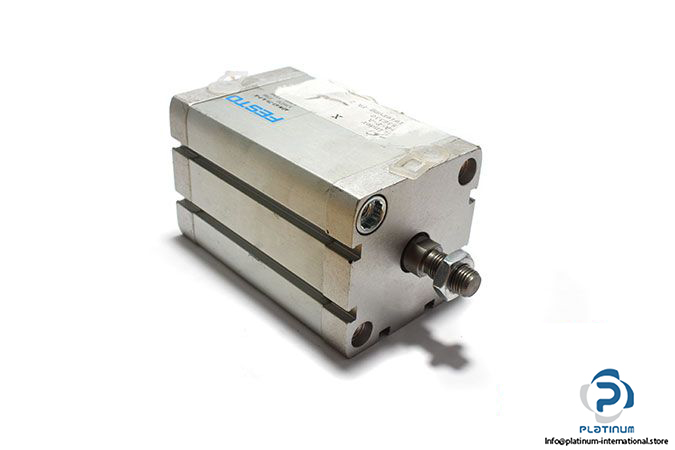

Festo ADN-63-75-A-P-A Compact Cylinder

 Manufacturer: FESTO

Type: Compact Cylinder

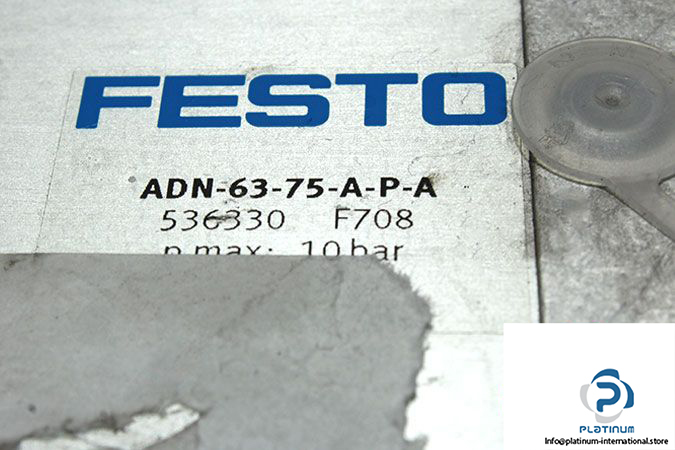

Model: ADN-63-75-A-P-A

Part No.: 536330



Material

Cover material: Aluminum Anodized

Piston rod material: High-alloy steel

Stroke Length: 75 mm

Piston Diameter: 63 mm

Piston rod thread: Male

Max. Operating Pressure: 10 bar

Mode of operation: Double acting

Cushioning: Elastic cushioning rings/pads at both ends

Position Sensing: For proximity sensing

Pneumatic Connection: G1/8

Temperature: -20 … 80 °C

Weight: 1 kg
