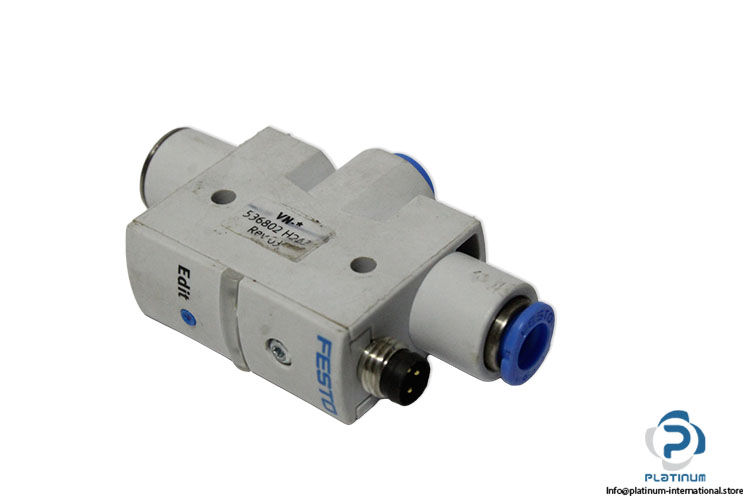

Festo 536802 Vacuum Generator
Neu
Auf Lager2 EinheitenVersandbereit
Vacuum Generator Compact FESTO vacuum generator designed for pneumatic vacuum control, pressure monitoring, and efficient automation performance in industrial systems.
AirAutomationCompressedControlEjectorFestoGeneratorIndustrialMPiezoresistivePneumaticPneumaticsPressureSensorvacuum
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Part No. | 536802 |
| Design | T-Shape |
| Nominal Size, Laval Nozzle | 0.7 mm |
| Grid Dimension | 16 mm |
| Silencer Design | Open |
| Fluid | Compressed Air |
| Pressure Measuring Range | -1 ... 0 bar / -0.1 ... 0 MPa |
| Measured Variable | Relative Pressure |
| Measuring Principle | Piezoresistive |
| Measurement Method | Relative |
| Switching Element Function | NO Contact |
| Operating Pressure | -0.1 ... 0 MPa |
| Nominal Flow Rate | 30.9 l/min |
| Electrical Connection | M8 |
| Pneumatic Connection, Port 1 | G1/8 |
| Pneumatic Connection, Port 3 | Open Silencer |
| Vacuum Connection | QS-6 |
| Material | POM-Reinforced |
| Protection Class | IP40 |
| Ambient Temperature | 0 ... 50 °C |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1092995 |
| Weight | 0,04 |
