Festo 538180 Hand Lever Valve
Gebraucht
Auf Lager1 EinheitVersandbereit
50,00$
HAND LEVER VALVE
FESTO VHER-AH-M04C-G14-LD hand lever valve with 4/3 closed rotary function, ideal for manual pneumatic control up to 10 bar.4/3AluminiumCastClosedconnectionControlDieFestoG1/4HandIndustrialLeverManualPneumaticRotarySlideValveVHER-AH-M04C-G14-LD
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

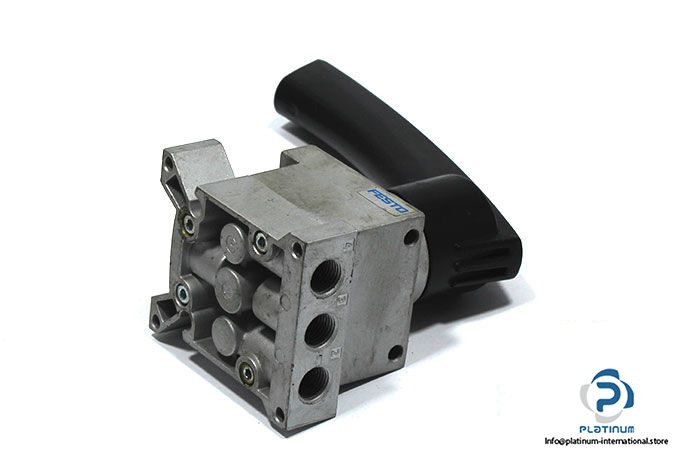

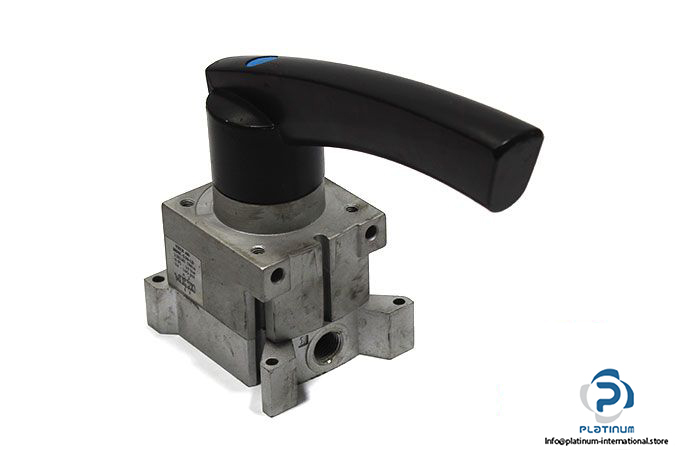

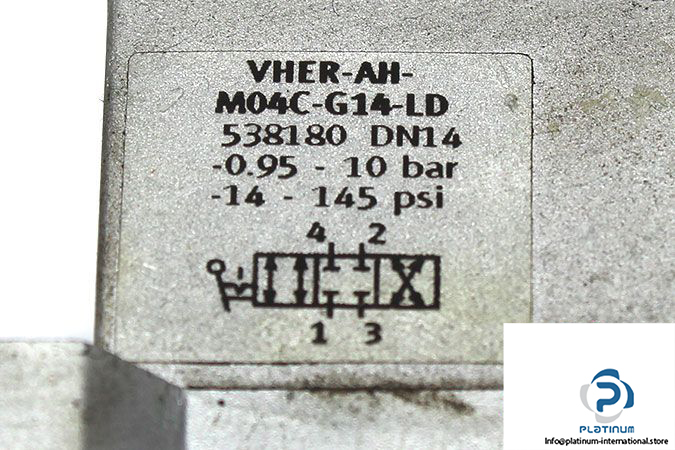

FESTO VHER-AH-M04C-G14-LD HAND LEVER VALVE
The FESTO VHER-AH-M04C-G14-LD is a high-performance hand lever valve designed for manual control of pneumatic systems. Built with durable aluminum die-cast housing, it features a 4/3 closed rotary slide valve function with reliable operation in a wide pressure and temperature range.
Manufacturer: FESTO
Type: Hand Lever Valve
Model: VHER-AH-M04C-G14-LD
Part No.: 538180
| Fluid | Air |
| Design | Rotary slide valve |
| Function | 4/3 closed |
| Type of Actuation | Manually |
| Operating Pressure | -0.95 to 10 bar |
| Nominal Flow Rate | 1150 l/min |
| Pneumatic Connection | G1/4 |
| Material | Aluminium die cast |
| Ambient Temperature | -20 to 80 °C |
