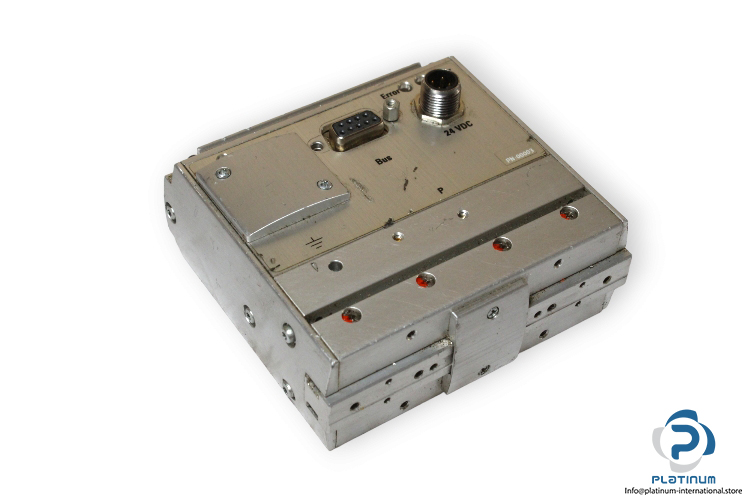

Festo 539054 Parallel Gripper

Manufacturer: FESTO
Type: Parallel Gripper

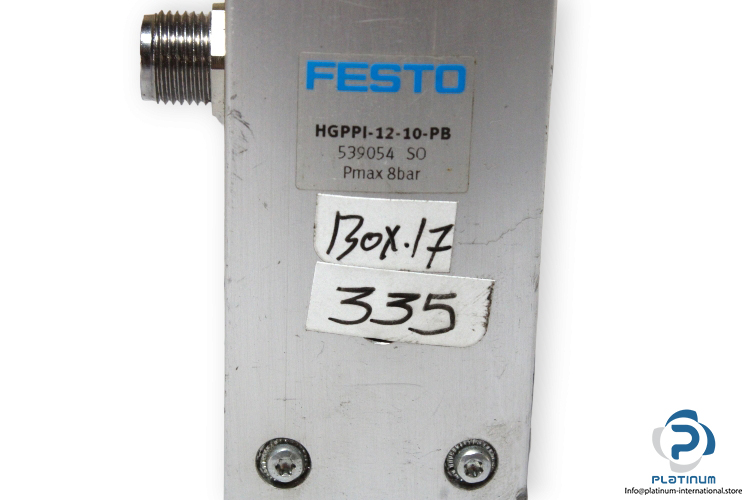

Model: HGPPI-12-10-PB
Part No.:  539054

Media: Dried compressed air, lubricated or unlubricated
Size: 12
Operating Pressure: 5 … 6 bar
Smallest positioning stroke: 0.2 mm
Min. positioning speed: 1 mm/s
Open, close total gripping force at 6 bar: 20 … 120 N
Open, close gripping force at 6 bar for each jaw: 10 … 60 N
Typical positioning time: 150 … 250 ms
Pneumatic Connection: M3
Position detection: For Hall Sensors
Mode Of Operation: Double acting
Nominal voltage, load supply DC: 24 V DC
Ambient  Temperature Range: 5 … 40°C
