Festo 539158 AIR Solenoid Valve
Gebraucht
Auf Lager1 EinheitVersandbereit
AIR SOLENOID VALVE
FESTO VSVA-B-M52-AZD-A1-1T1L 5/2-way monostable valve with 688865 coil, offering 1100 l/min air flow, pneumatic actuation, and IP65 protection.5/2-Way688865AircoilControlFestoIndustrialIP65MonostablePneumaticsolenoidSub-BaseValveVSVA-B-M52-AZD-A1-1T1L
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

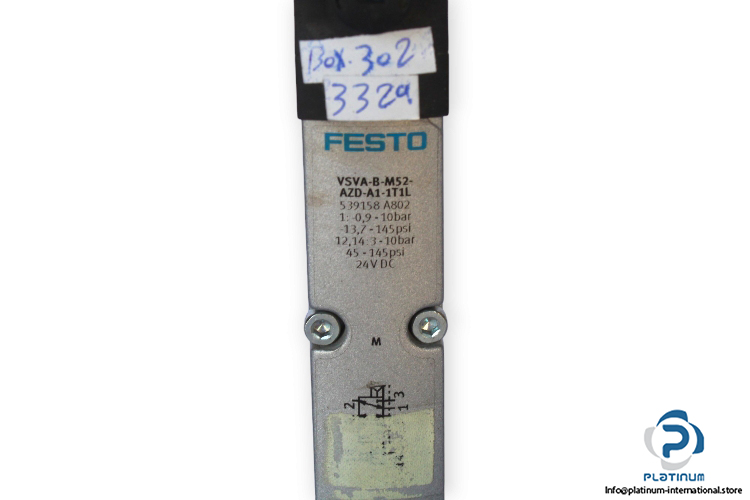

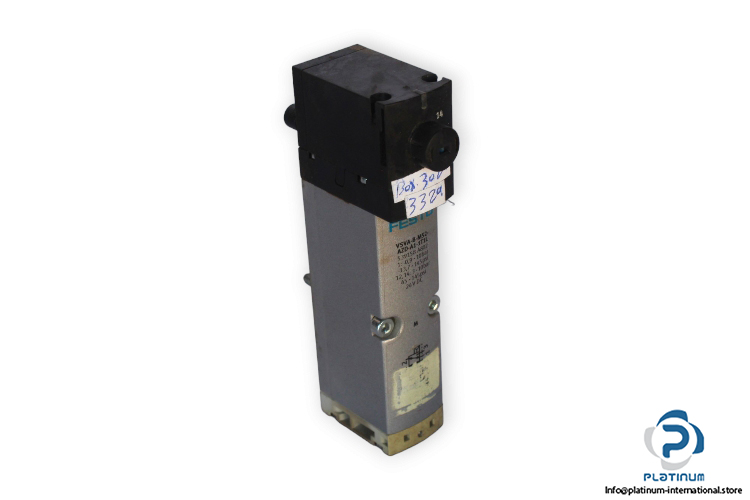

FESTO VSVA-B-M52-AZD-A1-1T1L AIR SOLENOID VALVE WITH 688865 COIL
The FESTO VSVA-B-M52-AZD-A1-1T1L is a high-performance 5/2-way monostable air solenoid valve designed for demanding pneumatic applications. Featuring a piston gate valve design, it delivers excellent flow capacity and operational reliability in a compact footprint. This valve comes with a FESTO 688865 solenoid coil for precise actuation and robust protection.
Manufacturer: FESTO
Type: Air Solenoid Valve
Model: VSVA-B-M52-AZD-A1-1T1L
Part No.: 539158
| Fluid | Air |
| Design | Piston gate valve |
| Function | 5/2-way, monostable |
| Type of Actuation | Pneumatically |
| Operating Pressure | -0.9 ... 10 bar |
| Pilot Pressure | 3 ... 10 bar |
| Nominal Flow Rate | 1100 l/min |
| Pneumatic Connection | Sub-base size 26 mm |
| Material | Die-cast aluminum / PA |
| Ambient Temperature | -5 / 50 °C |

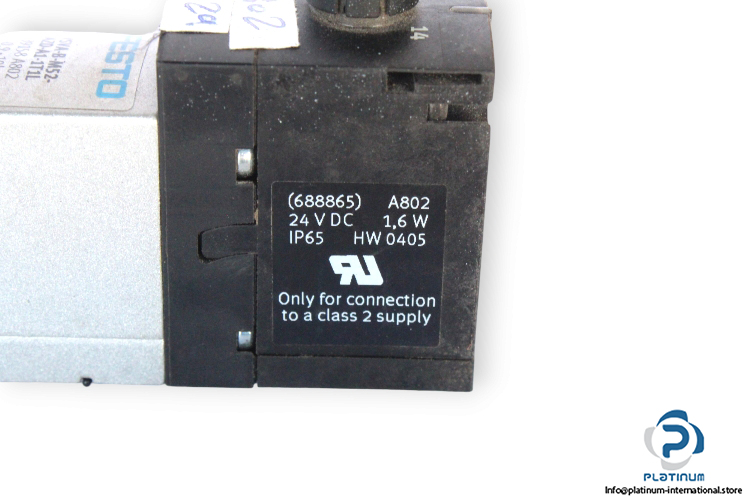

| Attachment | FESTO 688865 SOLENOID COIL |
| Voltage | 24 V DC |
| Power Consumption | 1.6 W |
| Protection Class | IP65 |
