Festo 539188 Single Solenoid Valve
Neu
Auf Lager2 EinheitenVersandbereit
75,00$
SINGLE SOLENOID VALVE
FESTO VSVA-B-P53C-ZD-A2-1T1L 5/3 way solenoid valve with 24 V DC coil, designed for efficient air control with IP65 protection and sub-base connection.
Gebraucht
Auf Lager 70,00$
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

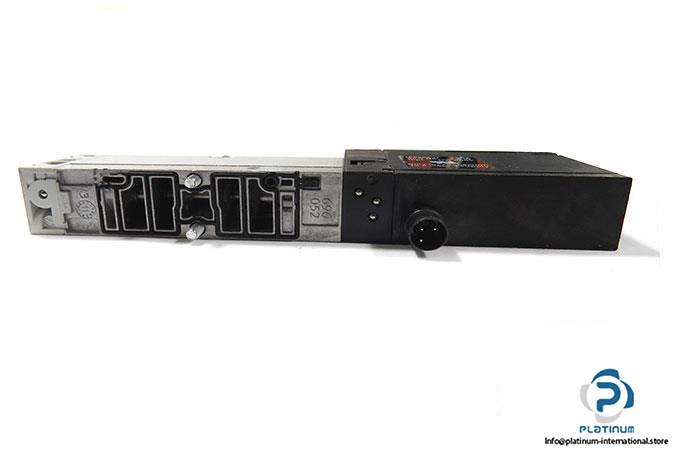

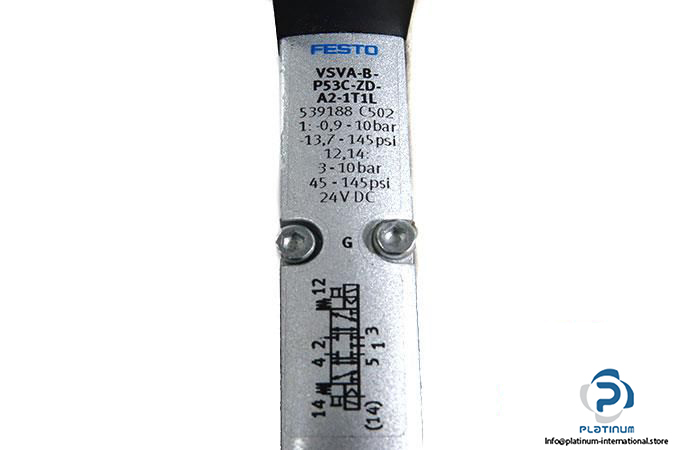

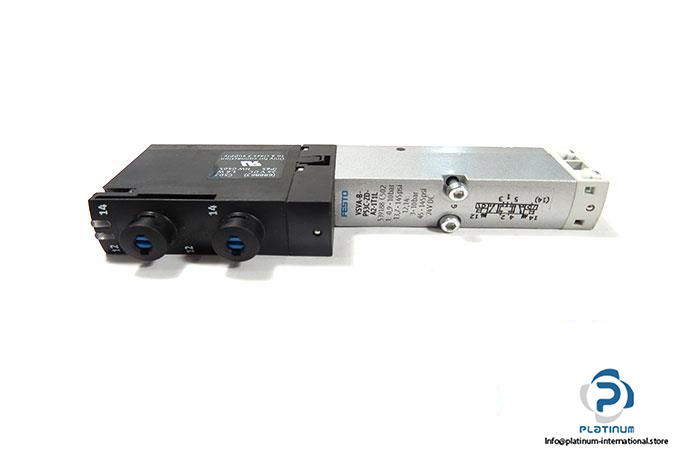

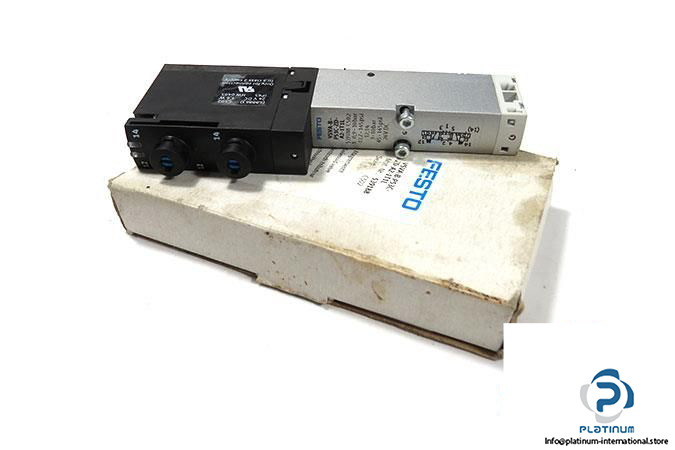

FESTO VSVA-B-P53C-ZD-A2-1T1L SINGLE SOLENOID VALVE WITH COIL
The FESTO VSVA-B-P53C-ZD-A2-1T1L is a high-performance 5/3 way single solenoid valve designed for precise pneumatic control. It is equipped with a sub-base connection and operates reliably across a wide pressure and temperature range. The valve is paired with the FESTO 688863 solenoid coil, ensuring energy-efficient electrical actuation with a high protection rating.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: VSVA-B-P53C-ZD-A2-1T1L
Part No.: 539188
Coil Technical Information
| Fluid | Air |
| Valve Function | 5/3 Way, Closed |
| Type of Actuation | Electrical |
| Working Pressure | -0.9 / 10 bar |
| Flow Rate | 700 l/min |
| Hydraulic Connection | Sub-base |
| Fluid Temperature Range | -20 / 80 °C |
| Attachment | FESTO 688863 Solenoid Coil |
| Supply Voltage | 24 V DC |
| Power Consumption | 1 W |
| Protection Class | IP65 |
