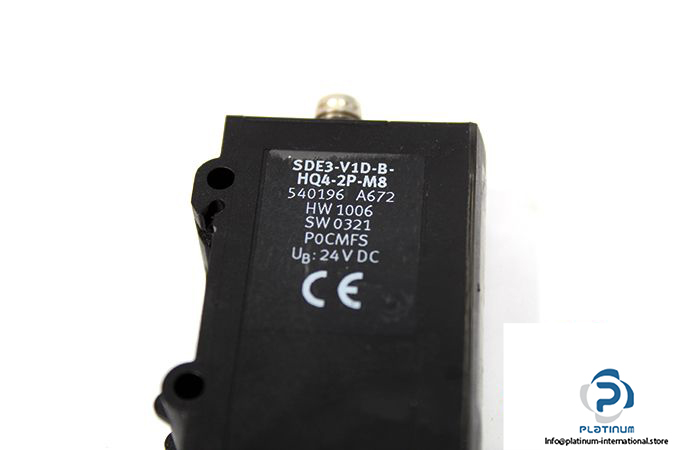

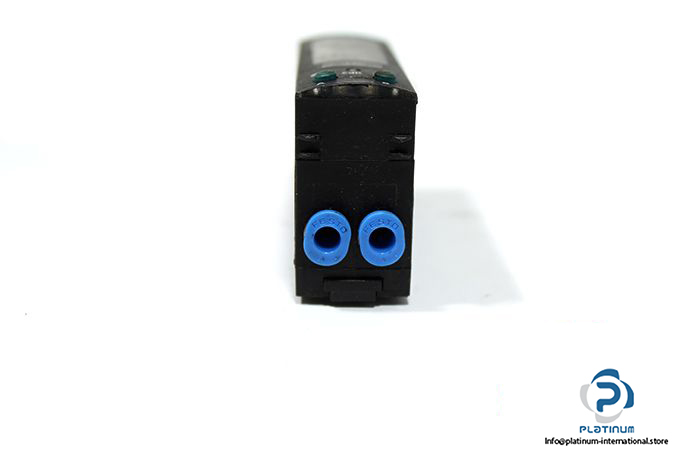

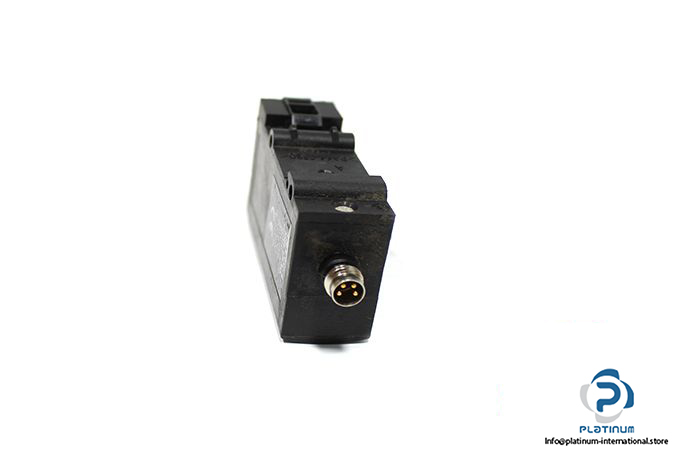

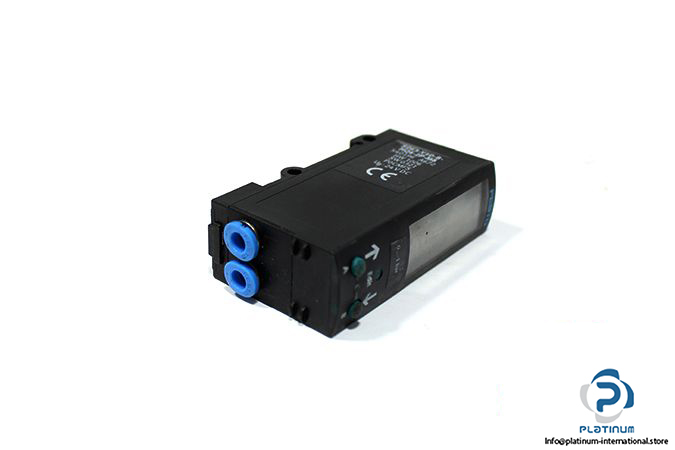

Festo 540196 Pressure Sensor
Gebraucht
Auf Lager17 EinheitenVersandbereit
120,00$
Pressure Sensor FESTO pressure sensor with -1 to 0 bar measuring range, 2xPNP switching outputs, M8 connector, and IP65 protection for pneumatic automation.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Part No. | 540196 |
| Pressure Measuring Range | -1 … 0 bar |
| Operating Voltage | 15 … 30 V DC |
| Output Current Max. | 100 mA |
| Switching Output | 2xPNP |
| Material | PA-Reinforced |
| Electrical Connection | M8 Connector 4-Pin |
| Pneumatic Connection | 4 mm |
| Protection Class | IP65 |
| Ambient Temperature | 0 ... 50 °C |
| Dimensions | 65 x 20 x 37 mm |
| Condition | Used |
| SKU | 974156 |
| Weight | 0.03 |
