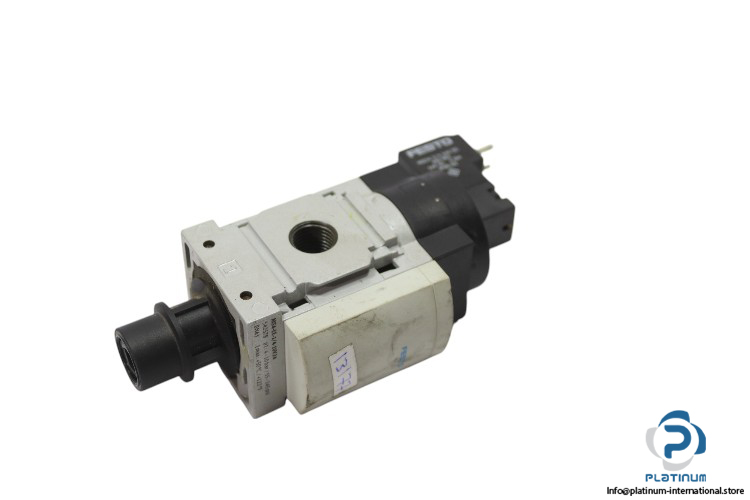

Festo 542578 Shut OFF Valve
ON/OFF VALVE WITH SOLENOID COIL
FESTO MS4-EE-1/4-10V24 ON/OFF Valve provides 3/2-way control of compressed air with electric actuation and 2000 l/min flow rate. Includes MSCH-3/2-24V DC solenoid coil for responsive and reliable operation.FESTO MS4-EE-1/4-10V24 ON/OFF VALVE WITH SOLENOID COIL
The FESTO MS4EE1410V24 ON/OFF Valve is designed for precise control of compressed air and inert gases in pneumatic systems. With a 3/2-way closed, monostable function and electrical actuation, it provides reliable operation across a wide pressure range. This valve is constructed from durable die-cast aluminum and includes a FESTO solenoid coil for efficient and responsive performance.
Manufacturer: FESTO
Type: ON/OFF Valve

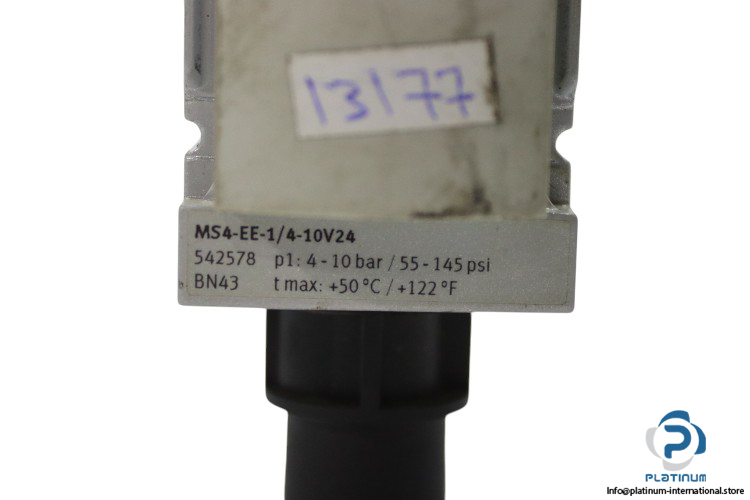

Model: MS4-EE-1/4-10V24
Part No.: 542578
Fluid: Compressed Air, Inert Gas
Valve Function: 3/2 Way, Closed, Monostable
Type of Actuation: Electrically
Operating Pressure: 4 / 10 bar / 55 / 145 PSI
Flow Rate: 2000 l/min
Material: Die-Cast Aluminum
Pneumatic Connection: G 1/4
Attachment:

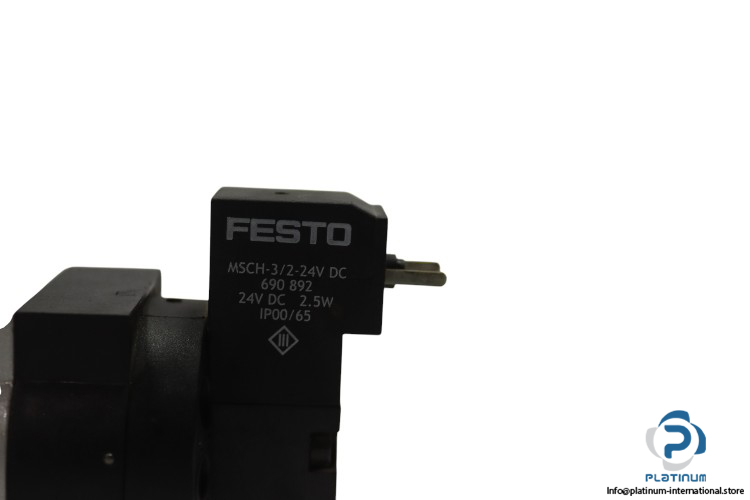

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSCH-3/2-24V DC
Part No.: 690 892
Supply Voltage: 24 V DC
Power Consumption: 2.5 W
Protection Class: IP00/65
