Festo 546452 Basic Valve
Neu
Auf Lager1 EinheitVersandbereit
Basic Valve
The Festo LR-D-7-MINI is a compact basic valve with a nominal flow rate of 4449.15 l/min and pressure regulation range from 0.5 to 7 bar. It features a rotary knob actuator, ideal for industrial automation and fluid control applications.4449.15AutomationBasicControldie-castFestoflowFluidIndustrialKnobl/minMiniPressureregulatedRotaryValveZinc
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

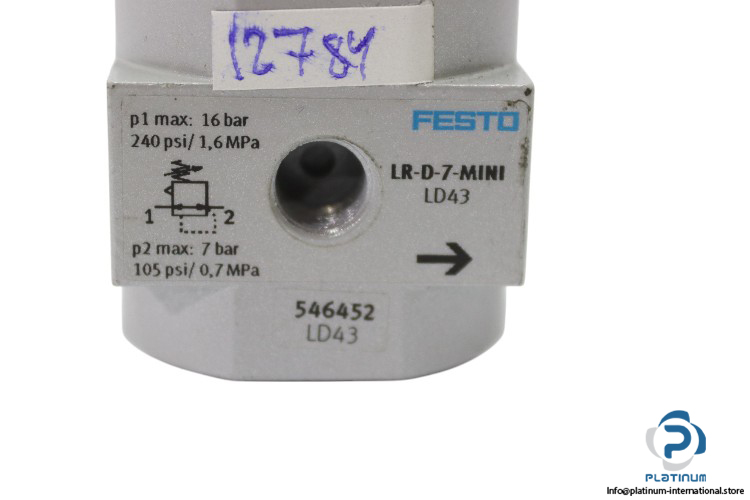

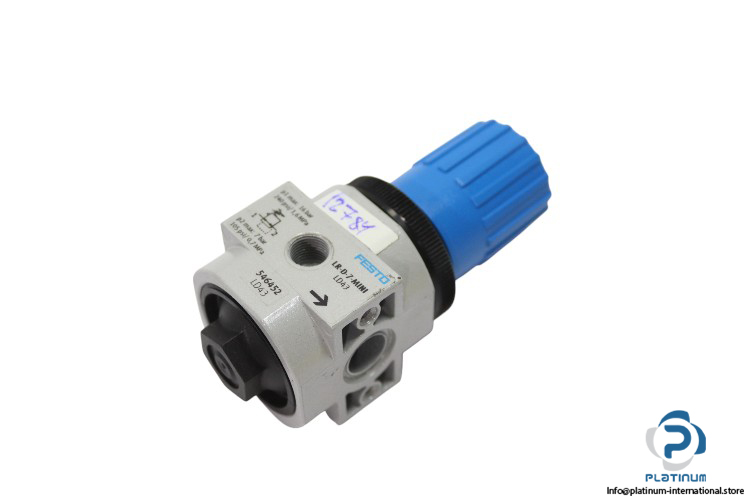

Festo LR-D-7-MINI Basic Valve
The Festo LR-D-7-MINI is a compact and efficient basic valve designed for precision control in industrial automation applications. With a nominal flow rate of 4449.15 l/min and adjustable pressure regulation range from 0.5 bar to 7 bar, this valve offers high flexibility and reliability for controlling air or fluid systems.
Manufacturer: FESTO
Type: Basic Valve
Model: LR-D-7-MINI
Part No.: 546452
Technical Data:
- Standard Nominal Flow Rate: 4449.15 l/min
- Pressure Regulation Range: 0.5 bar – 7 bar
- Max. Pressure Hysteresis: 0.2 bar
- Size: Mini
- Series: D
- Actuator Lock: Rotary knob with detent
- Operating Pressure: 1 bar … 16 bar
- Ambient Temperature: -10 °C … 60 °C
- Housing Material: Die-cast zinc
