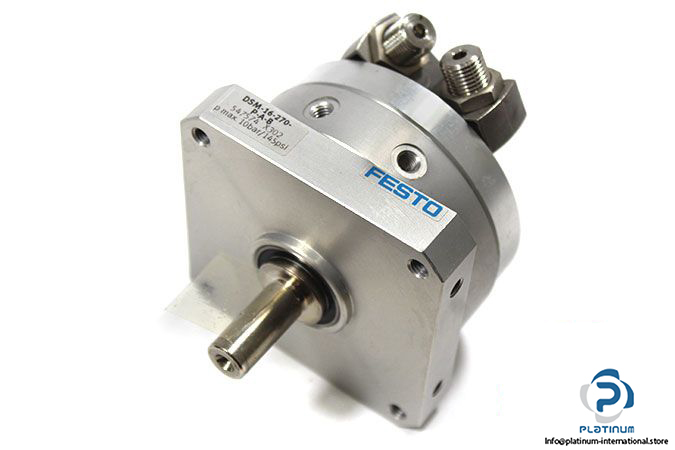

Festo 547574 Rotary Actuator

Manufacturer: FESTO

Type: Rotary Actuator

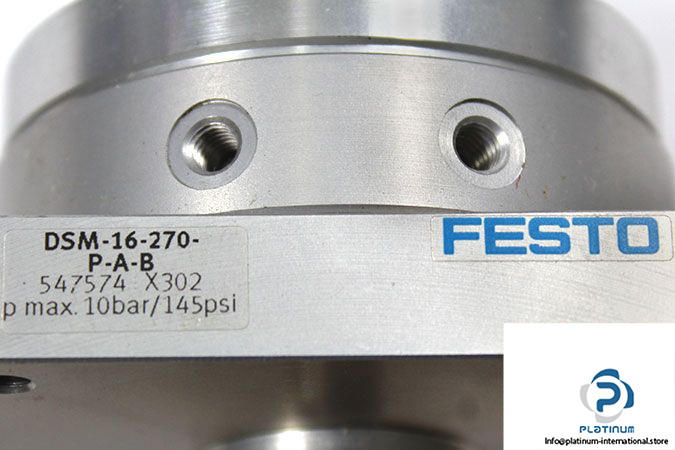

Model: DSM-16-270-P-A-B

Part No.: 547574

Materials

  Housing: Wrought Aluminum Alloy

  Drive Shaft Material: Steel, Nickel-Plated

Size: 16

Cushioning Angle: 1.4 deg

Range of Swivel Angle: 0…270 deg

Fluid: Air

Operating Pressure: 1.8…10 bar

Ambient and Fluid Temperature: -10…60 °C

Max. Axial Force: 30 N

Max. Radial Force: 75 N

Design: Rotary

Mode of Operation: Double-acting

Position Sensing: For Proximity Sensor

Pneumatic Connection: M5

Weight: 0.46 kg
