Festo 550237 AIR Solenoid Valve
Gebraucht
Auf Lager1 EinheitVersandbereit
AIR SOLENOID VALVE
FESTO CPE14-M1CH-5L-1/8 air solenoid valve with monostable 5/2-way control and aluminum body, paired with 24 V DC solenoid coil for reliable pneumatic actuation.5/2-WayActuationAirAluminumcoilControlCPE14-M1CH-5L-1/8dcFestoG1/8IndustrialMonostableMSZG-3-24PneumaticsolenoidValve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

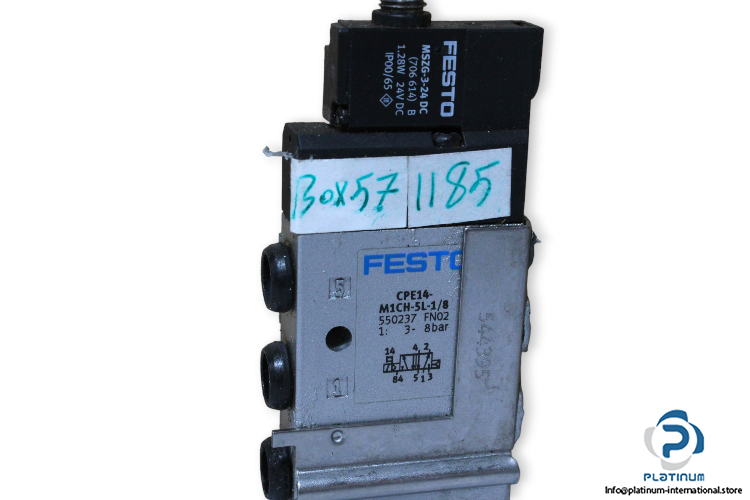

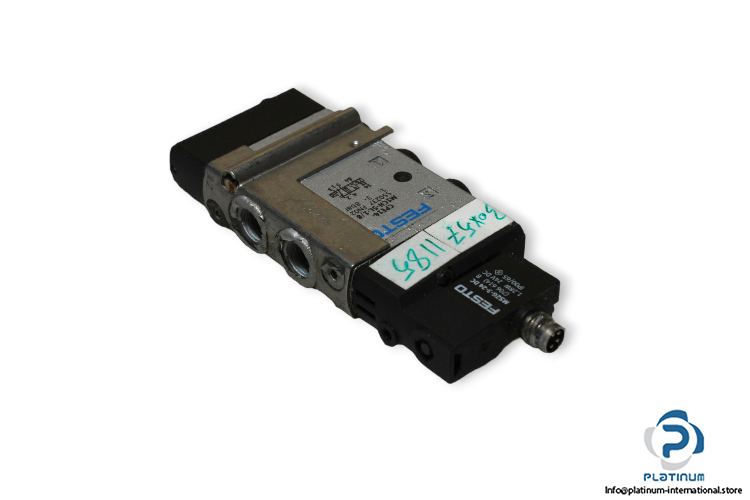

FESTO CPE14-M1CH-5L-1/8 AIR SOLENOID VALVE WITH SOLENOID COIL
The FESTO CPE14-M1CH-5L-1/8 is a high-performance 5/2-way air solenoid valve with monostable actuation, engineered for fast and reliable switching in pneumatic systems. Its aluminum die-cast construction and high nominal flow rate make it ideal for demanding industrial automation environments. Comes complete with the FESTO MSZG-3-24 DC solenoid coil for efficient electrical control.
Manufacturer: FESTO
Type: Air Solenoid Valve
Model: CPE14-M1CH-5L-1/8
Part No.: 550237
Solenoid Coil Technical Information
| Fluid | Air |
| Design | Piston gate valve |
| Valve Function | 5/2-way, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 3 ... 8 bar |
| Nominal Flow Rate | 800 l/min |
| Pneumatic Connection | G1/8 |
| Material | Aluminum die cast |
| Ambient Temperature | -5 / 50 °C |
| Solenoid Coil | FESTO MSZG-3-24 DC |
| Part No. | 706614 |
| Supply Voltage | 24 V DC |
| Power Consumption | 1.28 W |
| Protection Class | IP00 / IP65 |
