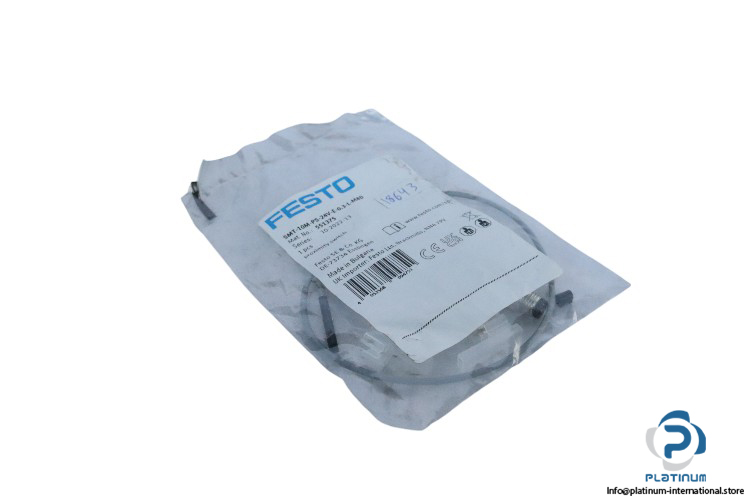

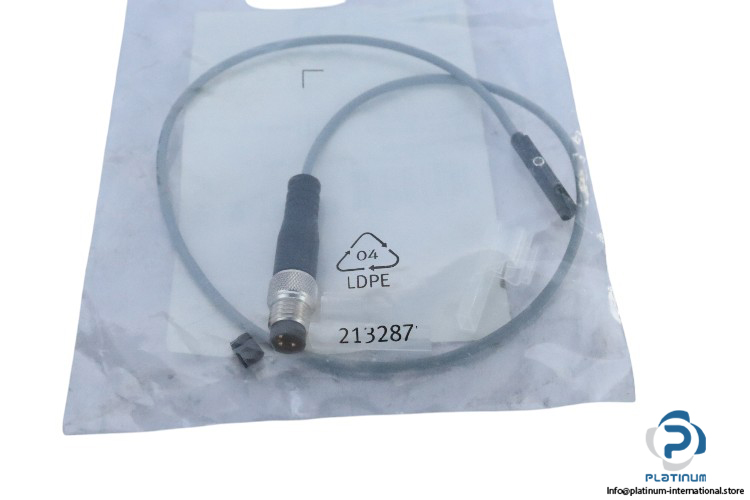

Festo 551375 Proximity Sensor
Der Festo SMT-10M-PS-24V-E-0,3-L-M8D Näherungssensor bietet präzise Positionsmessung mit magnetoresistiver Technologie, PNP Schaltausgang und robustem IP65/IP68 Schutz. Er arbeitet mit einer 24 V DC Versorgung und einem Ausgangsstrom von 100 mA.
Product Overview
Manufacturer: Festo
Type: Proximity Sensor

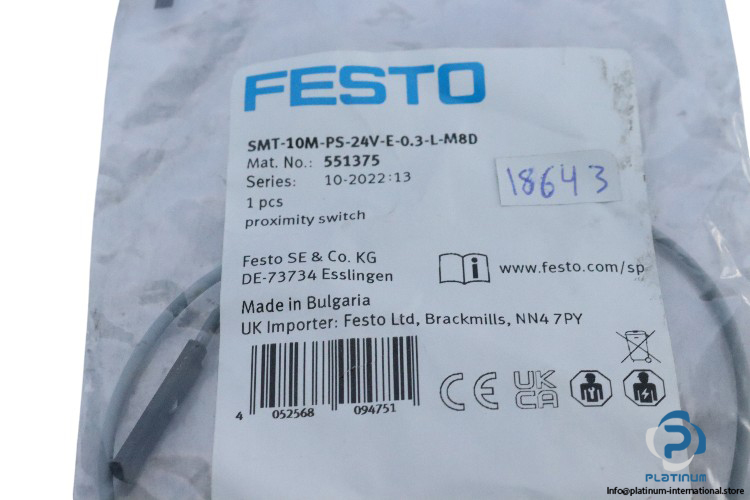

Model: SMT-10M-PS-24V-E-0,3-L-M8D
Part No.: 551375
The Festo SMT-10M-PS-24V-E-0,3-L-M8D Proximity Sensor is designed for position measurement using the magnetoresistive principle. It operates with a nominal voltage of 24 V DC and supports an operating voltage range from 5 to 30 V DC. The sensor provides a PNP switching output with a normally open function and ensures high switching accuracy with a repetition accuracy of ±0.1 mm. The sensor’s maximum output current is 100 mA, and its maximum switching capacity is 2.8 W. The device offers robust protection with an IP65/IP68 rating, making it suitable for use in demanding environments.
Key Specifications:
- Design: For round slot
- Measured Variable: Position
- Measuring Principle: Magnetoresistive
- Nominal Operating Voltage: 24 V DC
- Operating Voltage Range: 5 … 30 V DC
- Max. Output Current: 100 mA
- Switch Output: PNP, Normally Open
- Max. Switching Capacity DC: 2.8 W
- Max. Switching Capacity in Mounting Kits: 1.5 W
- Protection Class: IP65, IP68
- Housing Material: PA-reinforced High Alloy Steel, Non-corrosive
- Ambient Temperature: -40 … 70 °C
- Max. Tightening Torque: 0.4 Nm
- Switching Output Repetition Accuracy: ±0.1 mm
With its reliable switching performance and robust design, the Festo SMT-10M-PS-24V-E-0,3-L-M8D Proximity Sensor is ideal for industrial applications requiring precise position detection in harsh environments.
