Festo 551674 ISO Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
ISO-Zylinder doppeltwirkend, Festo pneumatischer ISO-Zylinder mit 25 mm Hub und 25 mm Kolbendurchmesser, ausgestattet mit flexiblen Dämpfungsringen und Näherungssensor zur Positionsdetektion für industrielle Automatisierungssysteme.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

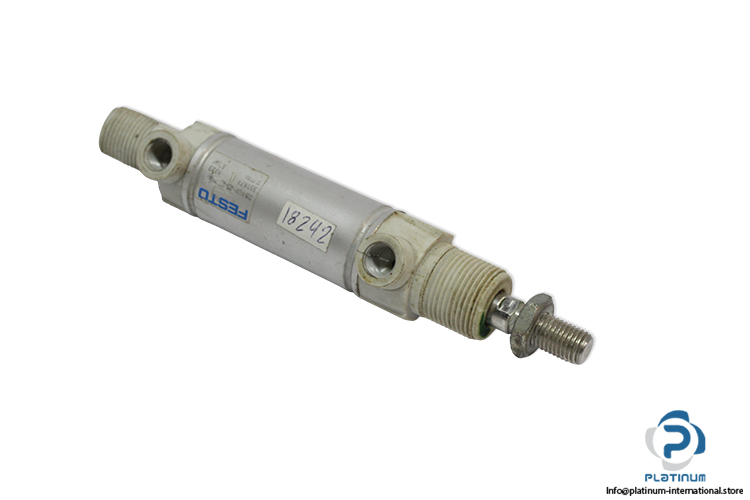

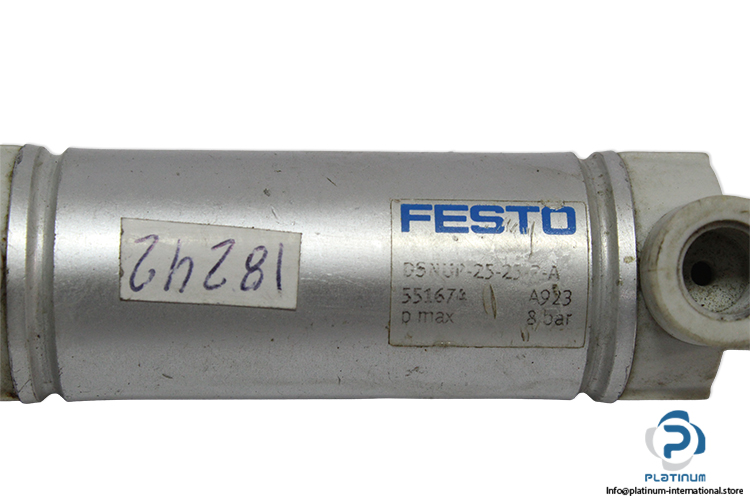

Festo DSNUP-25-25-P-A ISO Cylinder
The Festo DSNUP-25-25-P-A is a compact ISO standard pneumatic cylinder designed for reliable linear motion in industrial automation and pneumatic systems. This double-acting cylinder operates using compressed air and features integrated cushioning rings for smooth movement and reduced impact at the end positions.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNUP-25-25-P-A
Part No.: 551674
| Stroke | 25 mm |
| Piston Diameter | 25 mm |
| Cushioning | Flexible cushioning rings/pads at both ends |
| Position Sensing | Via proximity sensor |
| Piston Rod Thread | M10 |
| Piston-Rod End | Male Thread |
| Max Operating Pressure | 8 bar |
| Mode of Operation | Double-acting |
| Ambient Temperature | -20 to 80 °C |
| Operating Medium | Compressed Air |
| Connection | G1/8 |
