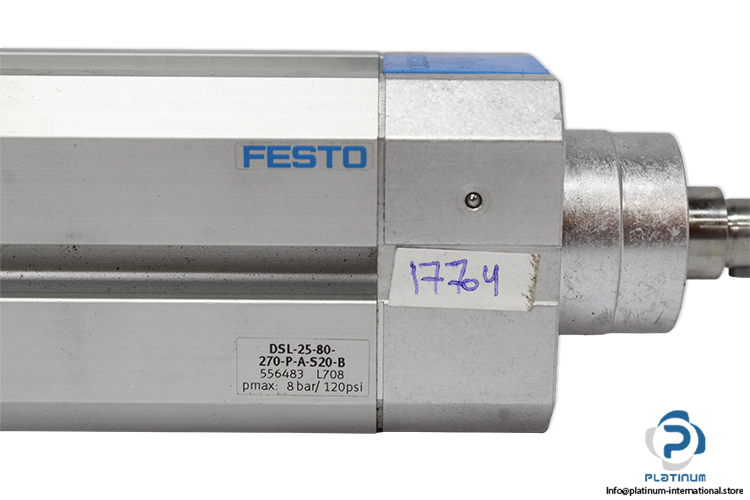

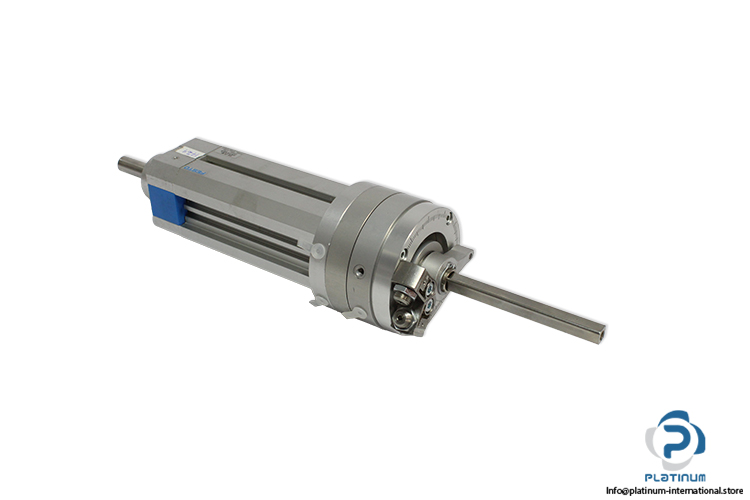

Festo 556483 Swivel/Linear Unit
Pneumatic Swivel/Linear Unit
Compact FESTO rotary“linear actuator designed for synchronized motion, high repeatability, and smooth pneumatic operation.Festo DSL-25-80-270-P-A-S20-B Swivel/Linear Unit
A high-precision pneumatic swivel/linear unit engineered by Festo for synchronized rotary and linear motion. Designed for compact automation tasks requiring accuracy, repeatability, and reliable performance. Manufacturer: Festo
Type: Swivel/Linear Unit
Model: DSL-25-80-270-P-A-S20-B
Part No.: 556483
Code: L708
Series: DSL
Operating medium: Compressed air
Stroke Length: 80 mm
Piston Diameter: 25 mm
Max. swivel angle: 270 degree
Max. Operating Pressure: 8 bar
Design: Rotary cylinder with vane combined with a double-acting linear cylinder
Cushioning: P, Flexible cushioning components at both ends
Position sensing: Via proximity switch
Suffix: S20 – Through, hollow piston rod
Pneumatic Connection: 5 mm
Ambient Temperature: -10 to 60°C
Material piston rod: Nickel plated stainless steel
Piston material: Brass
Recommendation:
This unit is ideal for applications requiring synchronized rotary“linear motion with high accuracy. It integrates perfectly with modern automation systems and delivers reliable performance even in demanding environments. For best results, pair this unit with high-quality Pneumatic Actuators and precise Sensors to enhance positioning accuracy and ensure long-term operational stability.
