Festo 559284 ISO Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
ISO Cylinder
The Festo DSNU-25-50-PPS-A is a robust ISO-standard pneumatic cylinder with a 25 mm bore and 50 mm stroke. Featuring stainless steel construction and self-adjusting end cushioning, it’s ideal for precision linear actuation in industrial settings.2550ActingActuatorboreconnectionCylinderDoubleDSNU-25-50-PPS-AFestoG1/8IndustrialISOmmPneumaticstainlessSteelStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

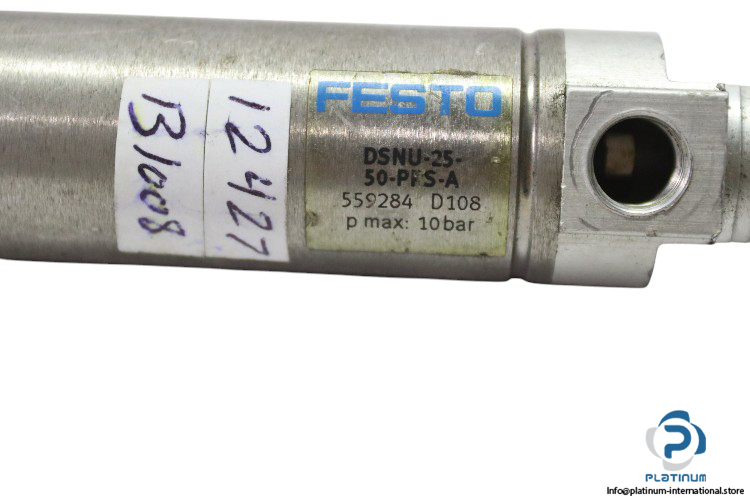

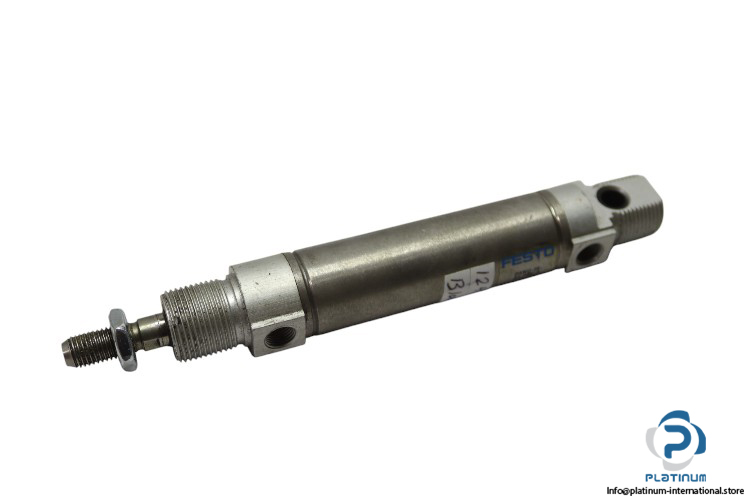

Festo DSNU-25-50-PPS-A “ ISO Cylinder
The Festo DSNU-25-50-PPS-A is a high-quality ISO cylinder engineered for reliable and consistent pneumatic actuation in industrial applications. Designed with durable materials and self-adjusting cushioning, it supports high-pressure operation and efficient linear motion control.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-25-50-PPS-A
Part No.: 559284
| Bore Diameter | 25 mm |
| Stroke | 50 mm |
| Operating Medium | Compressed air |
| Cushioning | Self-adjusting pneumatic end-position cushioning |
| Pneumatic Connection | G1/8 |
| Variants | Piston rod at one end |
| Mode of Operation | Double acting |
| Shape | Circular |
| Ambient Temperature | -20 to 80 °C |
| Max. Operating Pressure | 10 bar |
| Materials “ Cover | Wrought aluminum alloy |
| Materials “ Seals | NBR |
| Materials “ Piston Rod | High-alloy stainless steel |
| Materials “ Cylinder Barrel | High-alloy stainless steel |
