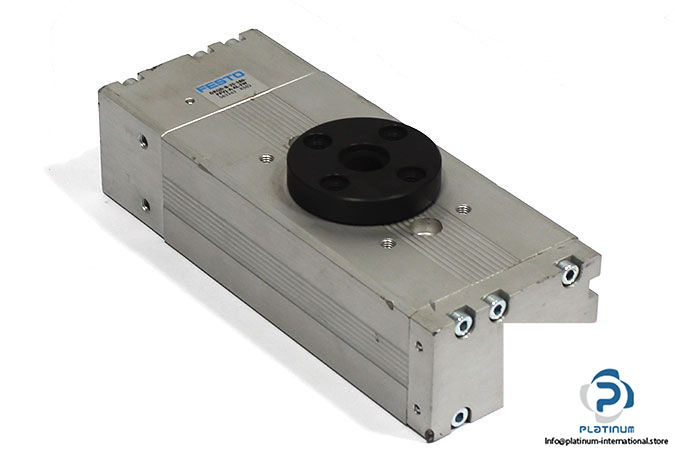

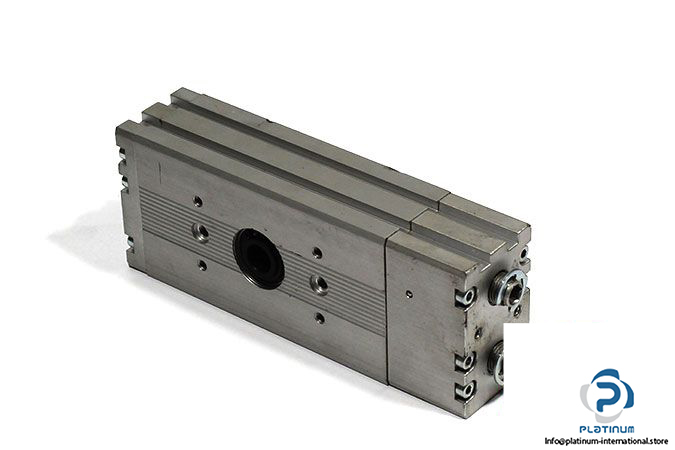

Festo 563343 Semi-Rotary Drive

Manufacturer: Festo
Type: Semi-Rotary Drive

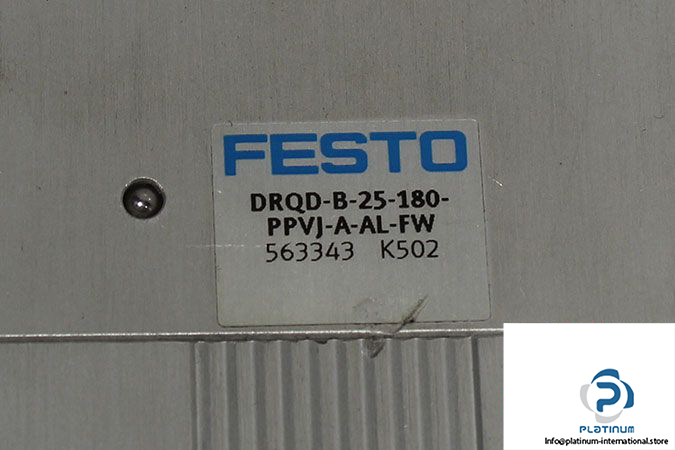

Model: DRQD-B-25-180-PPVJ-A-AL-FW
Alternative Model: DRRD-25-180-FH-PA
Part No.: 563343
Alternative Part No: 1359980

Size: 25
Rotation Angle Adjustment Range: -20…6 deg
Swivel Angle: 180 deg
Operating Pressure: 1…10 bar
Fluid: Air
Design: Rack and Pinion
Torque At 6 bar: 6.1 Nm
Pneumatic Connection: M5
Ambient Temperature: -10…60 °C
Mode of Operation: Double-Acting
Materials: Aluminum
