Festo 566499 Single Solenoid Valve
Neu
Auf Lager14 EinheitenVersandbereit
Festo VUVG-L14-M52-AT-G18-1P3 Solenoid Valve “ Compact 14 mm 5/3 valve with 24 VDC actuation. Delivers 700“780 l/min flow, fast switching, and robust aluminum housing for industrial pneumatic systems.
1424VDC5/3AirAluminumAutomationCompressedFastFestoG1/8IndustrialmmPneumaticPortsolenoidSwitchingValveVUVG-L14-M52-AT-G18-1P3
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

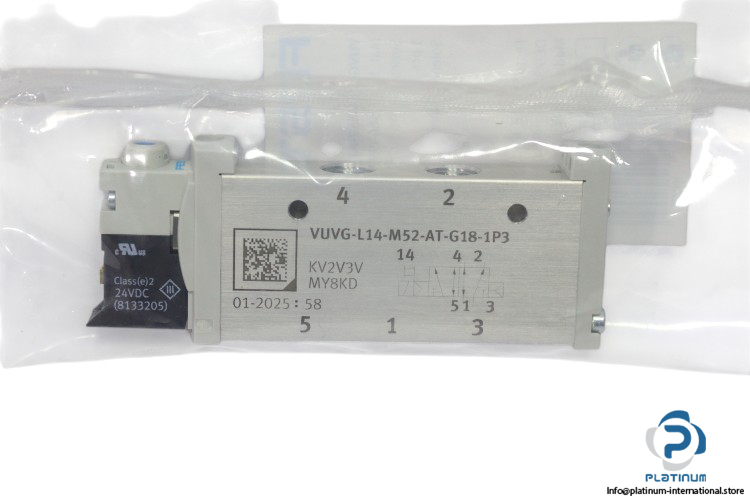

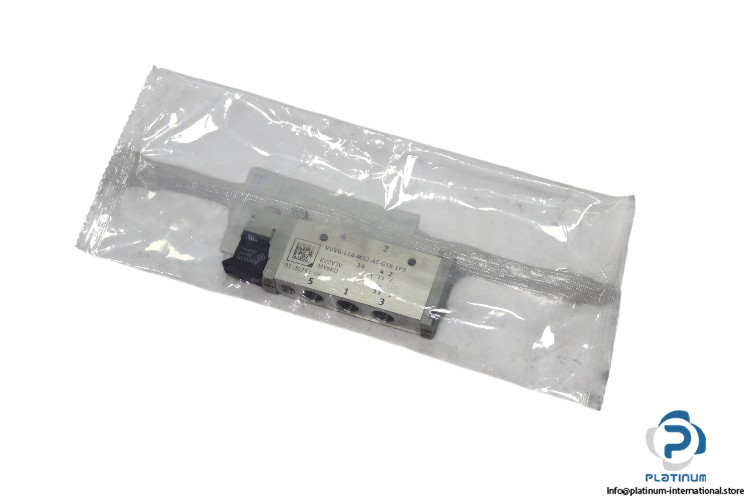

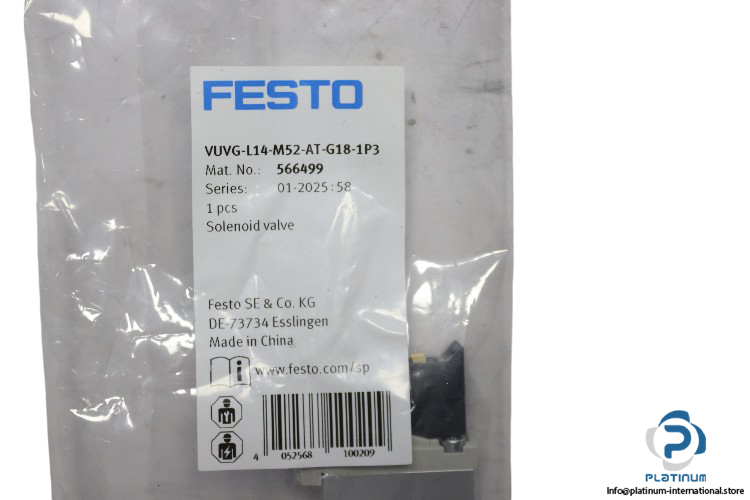

Festo VUVG-L14-M52-AT-G18-1P3 Single Solenoid Valve
The Festo VUVG-L14-M52-AT-G18-1P3 is a high-performance single solenoid valve designed for precision control in pneumatic systems. Engineered with a compact 14 mm valve size, this model ensures fast switching times and high flow efficiency, making it ideal for demanding industrial automation applications.
Manufacturer: Festo
Type: Single Solenoid Valve
Model: VUVG-L14-M52-AT-G18-1P3
Part No.: 566499
| Type of Actuation | Electrically |
| Valve Size | 14 mm |
| Valve Function | 5/3 |
| Standard Nominal Flow Rate | 700 l/min to 780 l/min |
| Operating Pressure | 0.25 MPa to 0.8 MPa |
| Switching Time On | 14 ms |
| Switching Time Off | 22 ms |
| Operating Medium | Compressed air |
| Material Housing | Wrought aluminum alloy |
| Ambient Temperature | -5 to 60 °C |
| Port Size | G1/8 |
| Voltage | 24 VDC |
