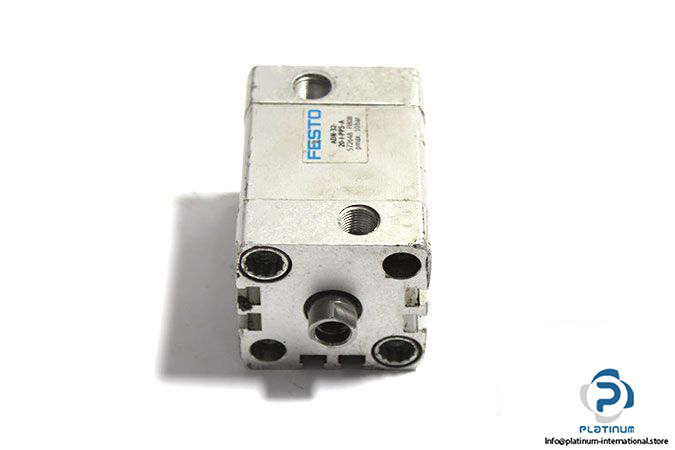

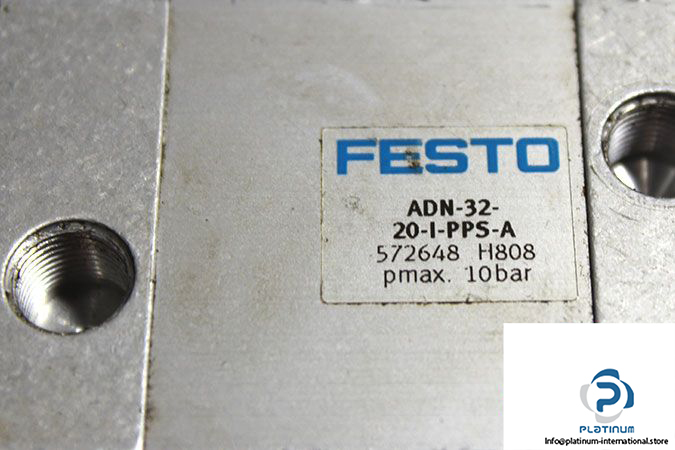

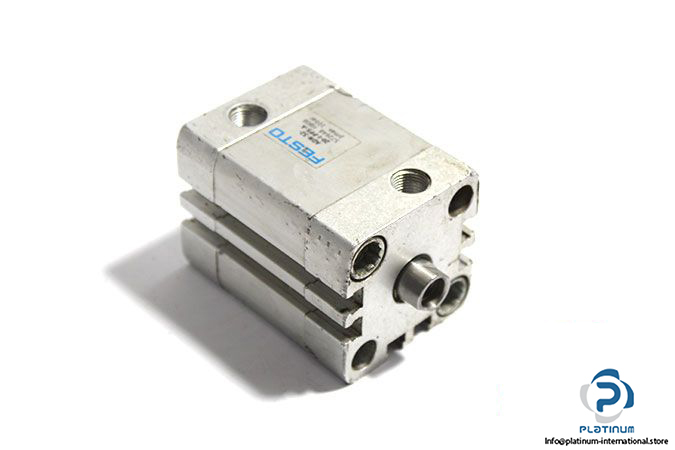

Festo 572648 Compact Cylinder

Manufacturer: FESTO

Type: Double-Acting Compact Cylinder

Model: ADN-32-20-I-PPS-A

Part No.: 572648

Materials

,,Cylinder Tube: Aluminium wrought alloy Smooth anodised

,,Piston rod: High-alloy steel

Stroke Length: 20 mm

Piston Diameter: 32 mm

Piston rod thread: Female thread

Operating Pressure: 0.6 … 10 bar

Cushioning: Pneumatic cushioning, self-adjusting at both ends

Position Sensing: Via proximity sensor

Pneumatic Connection: G1/8

Mode of operation: Double-Acting

Temperature: -20 … 80 °C

Weight: 0.28 kg
