Festo 573467 Double Solenoid Valve
Neu
Auf Lager2 EinheitenVersandbereit
DOUBLE SOLENOID VALVE
FESTO VUVG-S14-T32C-MZT-G18-1T1L double solenoid valve with 2×3/2-way function and 520 l/min flow, including 22 V DC coils for electrical actuation.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
FESTO VUVG-S14-T32C-MZT-G18-1T1L DOUBLE SOLENOID VALVE WITH COILS

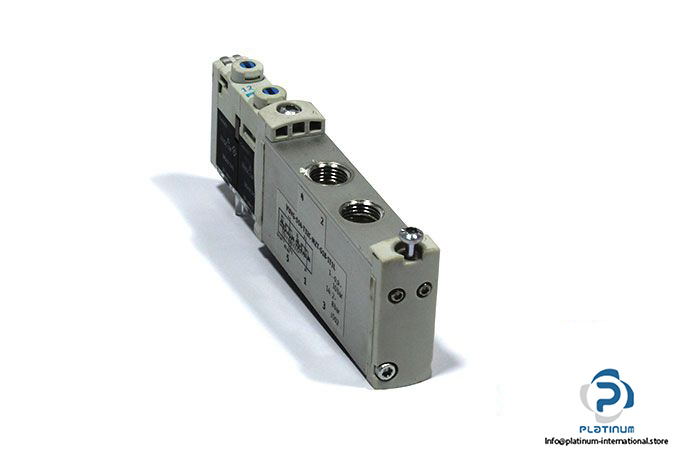

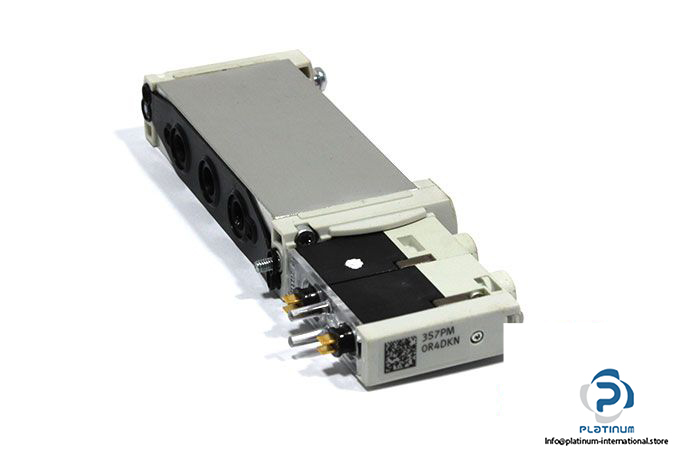

The FESTO VUVG-S14-T32C-MZT-G18-1T1L is a compact and powerful double solenoid valve designed for precise pneumatic applications. Featuring a piston gate valve design and monostable 2x3/2-way function, this valve ensures controlled air flow under a wide range of pressures. It comes complete with FESTO solenoid coils (8049398 and 8049399) for reliable electrical actuation.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: VUVG-S14-T32C-MZT-G18-1T1L
Part No.: 573467
Attachments
| Fluid | Air |
| Design | Piston Gate Valve |

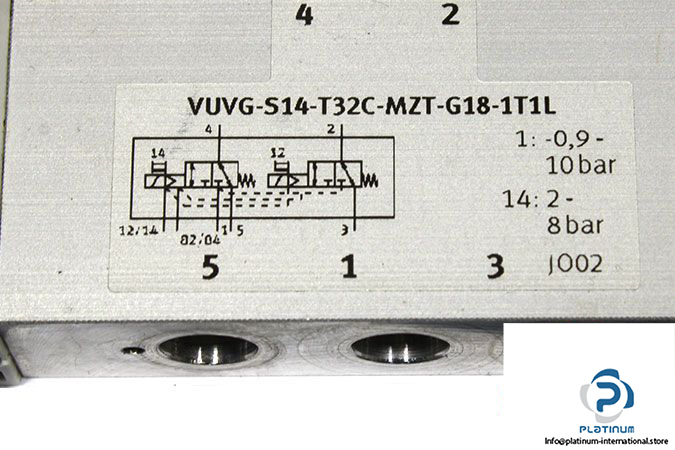

| Function | 2x3/2-way, monostable, closed |
| Type of Actuation | Electrically |
| Operating Pressure | -0.9 to 10 bar |
| Pilot Pressure | 2 to 8 bar |
| Flow Rate | 520 l/min |
| Pneumatic Connection | G1/8 |
| Material | Wrought aluminium alloy |
| Ambient Temperature | -5 to 60 °C |

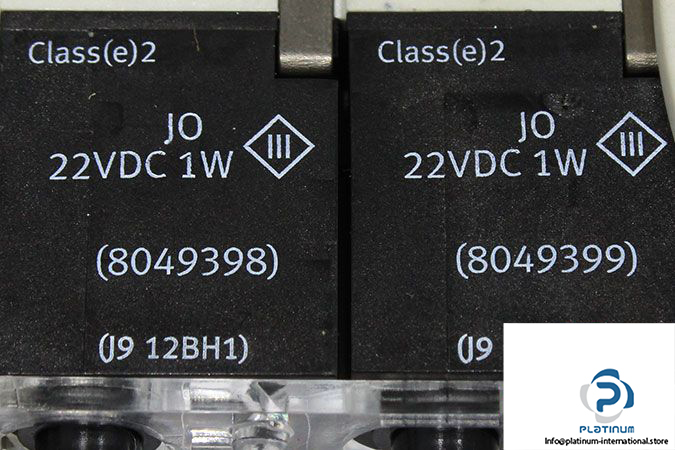

| FESTO 8049398 Solenoid Coil Manufacturer | FESTO |
| Supply Voltage | 22 V DC |
| Power Consumption | 1 W |
| FESTO 8049399 Solenoid Coil Manufacturer | FESTO |
| Supply Voltage | 22 V DC |
| Power Consumption | 1 W |
