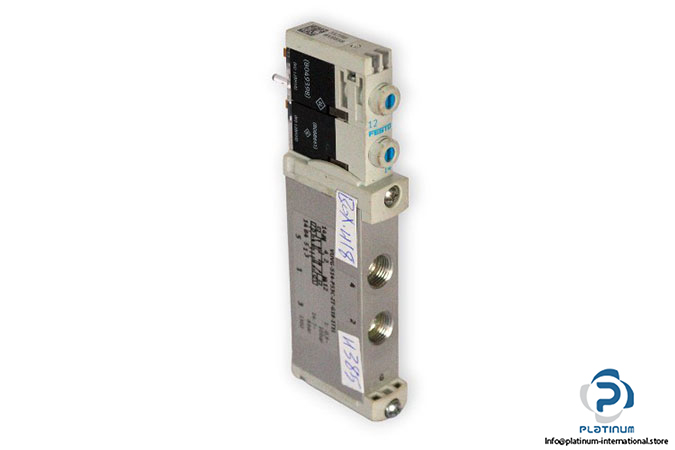

Festo 573473 Double Solenoid Valve
Neu
Auf Lager4 EinheitenVersandbereit
DOUBLE SOLENOID VALVE
FESTO VUVG-S14-P53C-ZT-G18-1T1L 5/3 closed valve with electrical actuation, piston gate design, and high flow performance up to 590 l/min.24v5/3AirClosedconnectiondcDoubleFestoflowG1/8GateHighPistonPneumaticsolenoidValveVUVG-S14-P53C-ZT-G18-1T1L
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

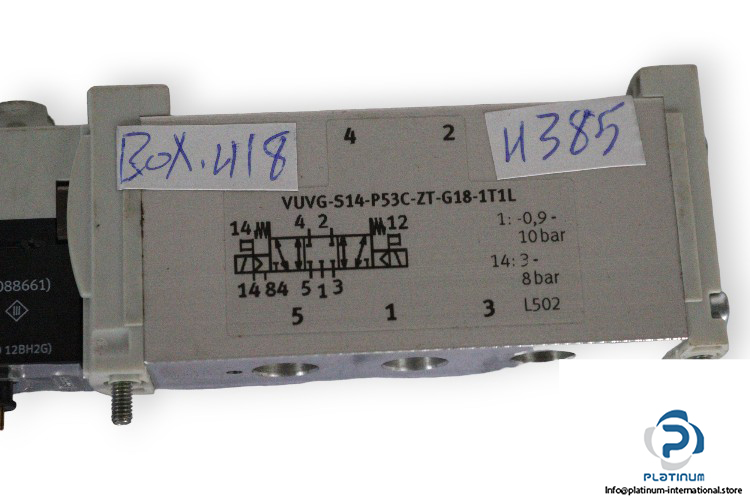

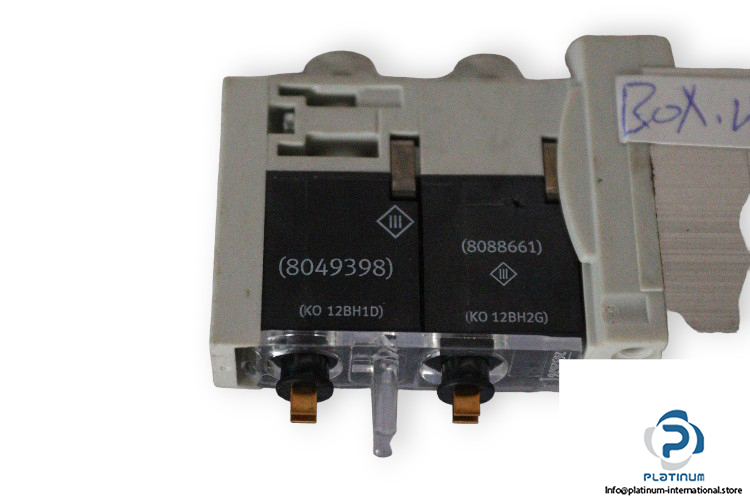

FESTO VUVG-S14-P53C-ZT-G18-1T1L DOUBLE SOLENOID VALVE
The FESTO VUVG-S14-P53C-ZT-G18-1T1L is a high-performance double solenoid valve designed for demanding pneumatic systems. Built with a durable piston gate design, this 5/3 closed valve offers efficient air control, reliable switching, and long service life.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: VUVG-S14-P53C-ZT-G18-1T1L
Part No.: 573473
| Fluid | Air |
| Design | Piston gate valve |
| Function | 5/3 closed |
| Type of Actuation | Electrically |
| Operating Pressure | -0.9 to 10 bar |
| Pilot Pressure | 3 to 8 bar |
| Nominal Flow Rate | 590 l/min |
| Supply Voltage | 24 V DC |
| Pneumatic Connection | G1/8 |
| Material | Wrought aluminum alloy |
| Ambient Temperature | -5 to 60 °C |
