Festo 5736 Pneumatic Valve
Gebraucht
Auf Lager5 EinheitenVersandbereit
PNEUMATIC VALVE
FESTO CJ-5/2-1/4 is a 5/2 bistable pneumatic valve with 1400 l/min flow rate and G1/4 connection, suitable for air-operated systems up to 16 bar.
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

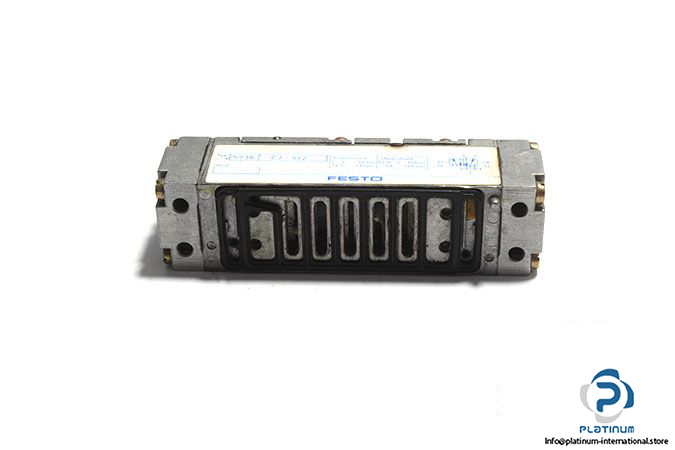

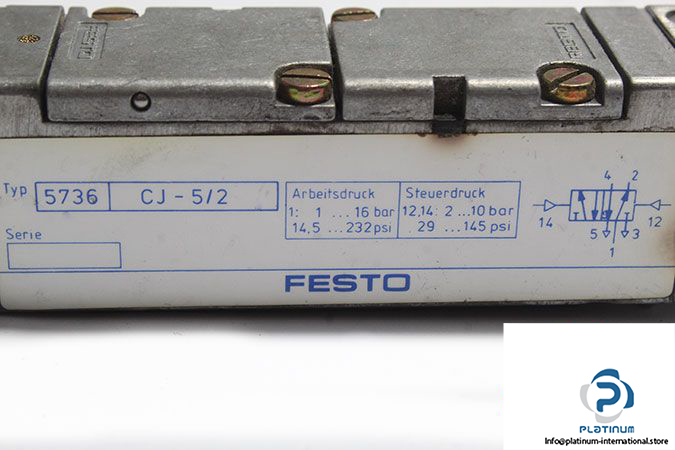

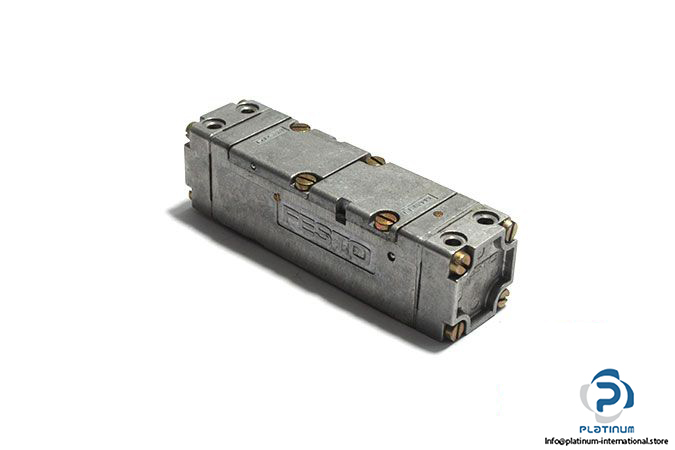

FESTO CJ-5/2-1/4 PNEUMATIC VALVE
The FESTO CJ5214 pneumatic valve is a robust and efficient bistable 5/2 valve ideal for high-flow industrial air applications. Engineered from high-quality wrought aluminum alloy, it offers excellent durability and precise pneumatic control in demanding environments.
Manufacturer: FESTO
Type: Pneumatic Valve
Model: CJ-5/2-1/4
Part No.: 5736
| Fluid | Air |
| Valve Function | 5/2 Bistable |
| Type of Actuation | Pneumatically |
| Operating Pressure | 1 ... 16 bar |
| Pilot Pressure | 2 ... 10 bar |
| Nominal Flow Rate | 1400 l/min |
| Pneumatic Connection | G1/4 |
| Material | Wrought Aluminum Alloy |
| Ambient Temperature | -10 / 60 °C |
