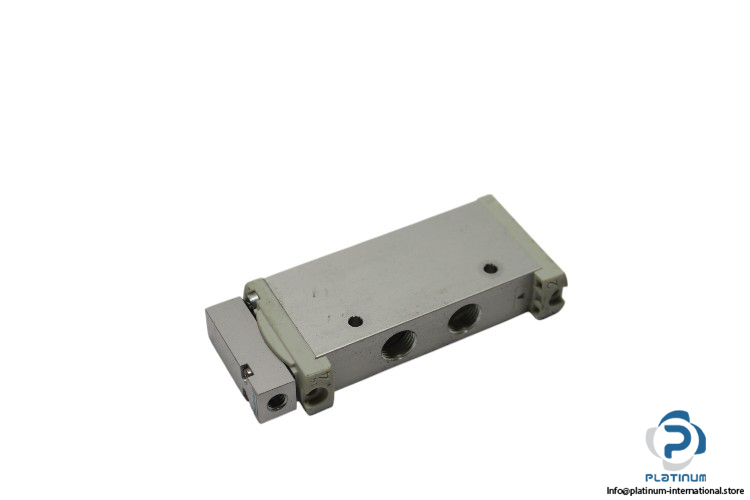

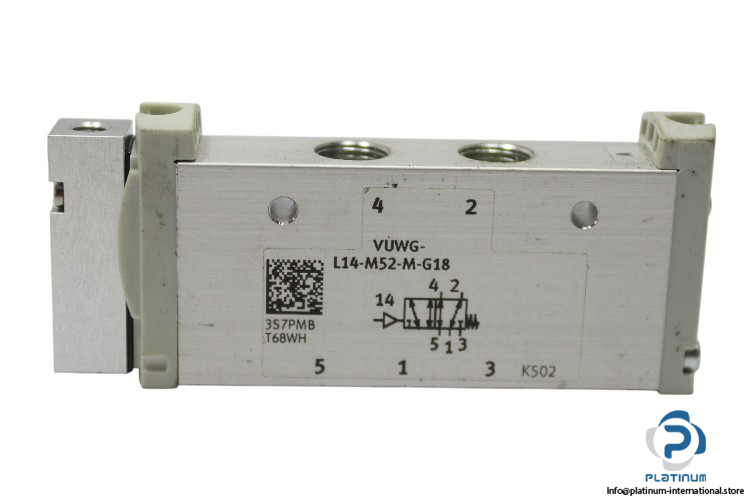

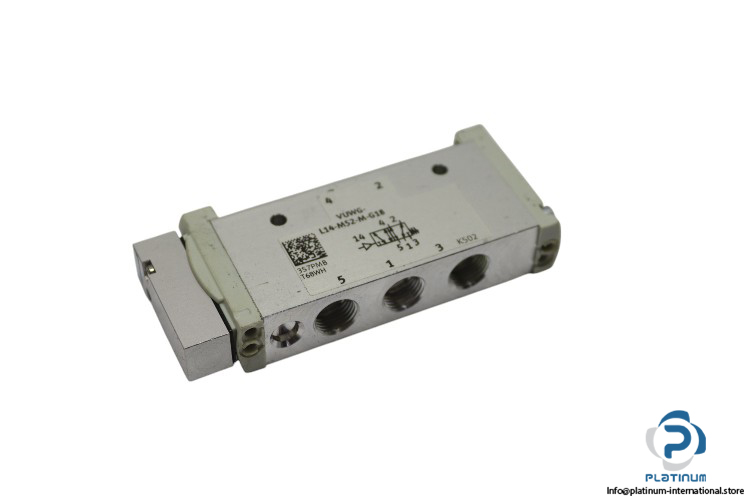

Festo 574262 Pneumatic Valve
Neu
Auf Lager1 EinheitVersandbereit
Pneumatic Valve
FESTO VUWG-L14-M52-M-G18 Pneumatic Valve is a compact and efficient valve designed for air flow control in automation systems. With a 14 mm valve size, a flow rate of 780 l/min, and an aluminum anodized housing, it delivers high performance and durability in demanding environments.14780AirAluminumAnodizedControlFestoflowG1/8high-performanceIndustriall/minM5mmPneumaticPortRateValve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
FESTO VUWG-L14-M52-M-G18 Pneumatic Valve
The FESTO VUWG-L14-M52-M-G18 Pneumatic Valve is a high-performance valve designed for efficient air flow control in industrial automation systems. With its compact 14 mm valve size and aluminum anodized housing, it ensures durability and reliable operation under varying pressure conditions. Suitable for a wide range of pneumatic applications.
- Manufacturer: FESTO
- Type: Pneumatic Valve
- Model: VUWG-L14-M52-M-G18
- Part No.: 574262
Technical Specifications
- Type of Actuation: Pneumatic
- Valve Size: 14 mm
- Standard Nominal Flow Rate: 780 l/min
- Operating Pressure: -0.9 bar … 8 bar
- Pilot Pressure: 3 bar … 10 bar
- Fluid: Air
- Housing Material: Aluminum Anodized
- Ambient Temperature: -5 °C … 60 °C
- Port Size: G1/8 , M5
