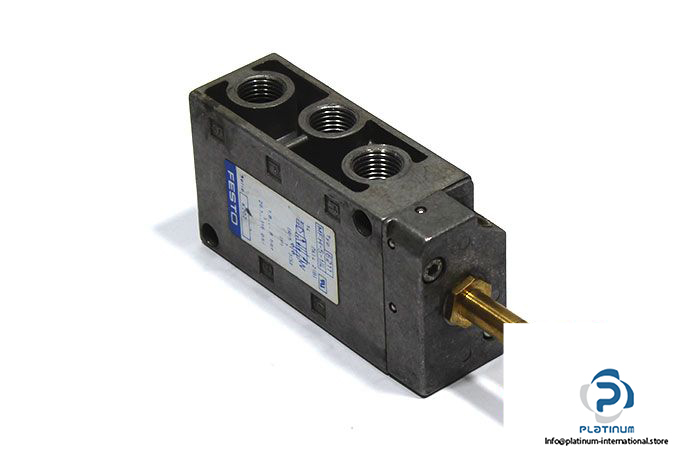

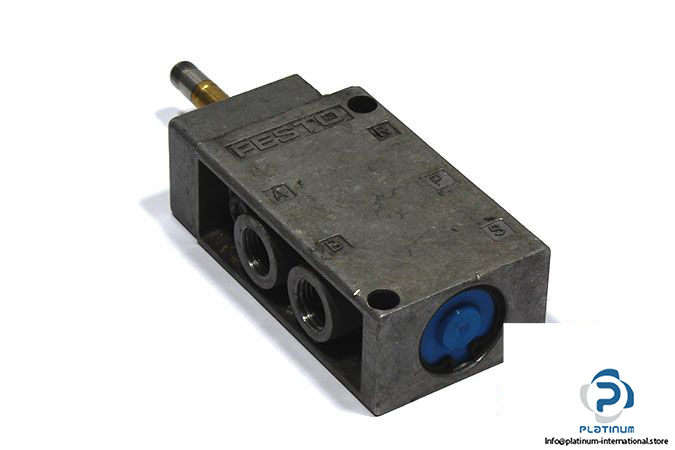

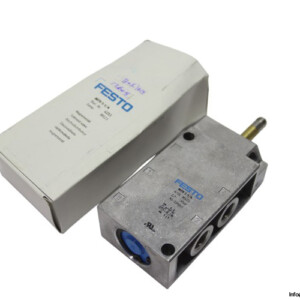

Festo 6211 Single Solenoid Valve
Gebraucht
Auf Lager10 EinheitenVersandbereit
33,33$
Air Solenoid Valve
Electrically actuated Festo MFH-5-1/4 air solenoid valve with 5/2 monostable function, high flow rate, and robust die-cast aluminum body for pneumatic applications.
Neu
Auf Lager 44,44$
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Festo MFH-5-1/4 Air Solenoid Valve
The Festo MFH-5-1/4 is a high-performance air solenoid valve designed for precise and reliable pneumatic control. Featuring a monostable 5/2 valve function and plate seat design, this valve ensures stable switching performance and efficient airflow in industrial pneumatic systems.
Manufacturer: Festo
Type: Air Solenoid Valve
Model: MFH-5-1/4
Part No.: 6211
Port Size:
| Type of Actuation | Electrically |
| Width | 30.5 mm |
| Operating Pressure | 1.8 bar to 8 bar |
| Fluid | Air |

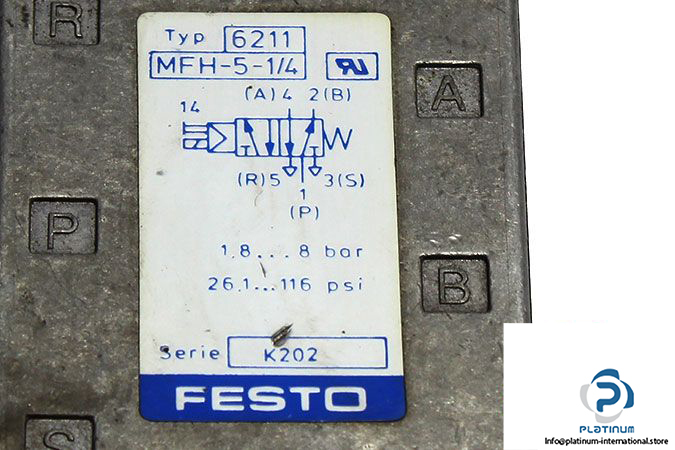

| Valve Function | 5/2, Monostable |
| Flow Rate | 1000 l/min |
| Design | Plate Seat |
| Ambient Temperature | -5 to 40°C |
| 1-2-3-4-5 | G 1/4 |
| Pilot Exhaust Air Port 84 | M5 |
| Material | Die-Cast Aluminum |
