Hydraulics & Pneumatics Pneumatic Valves

Festo 6686 Double Solenoid Valve

Name: FESTO 6686 DOUBLE SOLENOID VALVE
SKU: 973480
Availability: LimitedAvailability

Gebraucht

Auf Lager9 EinheitenVersandbereit

DOUBLE SOLENOID VALVE

FESTO BMCH-2-3-1/8 double solenoid valve with poppet design, spring return, and 2×3/2-way monostable function for air control systems.

SKU

973480

Kategorie

Pneumatic Valves

Zustand

Gebraucht

2x3/2-way Air BMCH-2-3-1/8 connection Control Double Festo G1/4 G1/8 Industrial Pneumatic Poppet Return solenoid spring Valve With

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

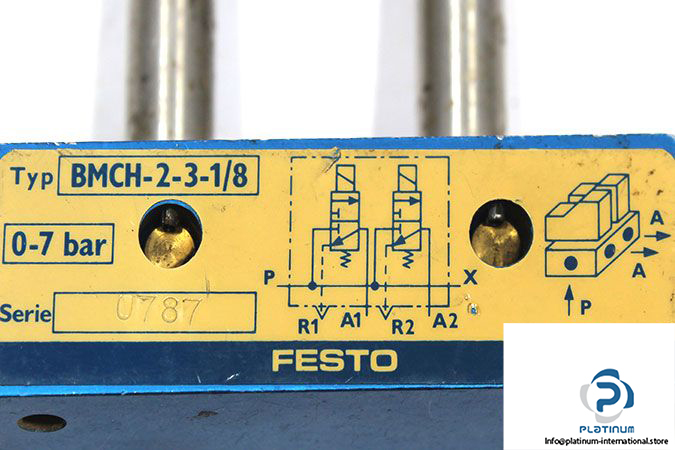

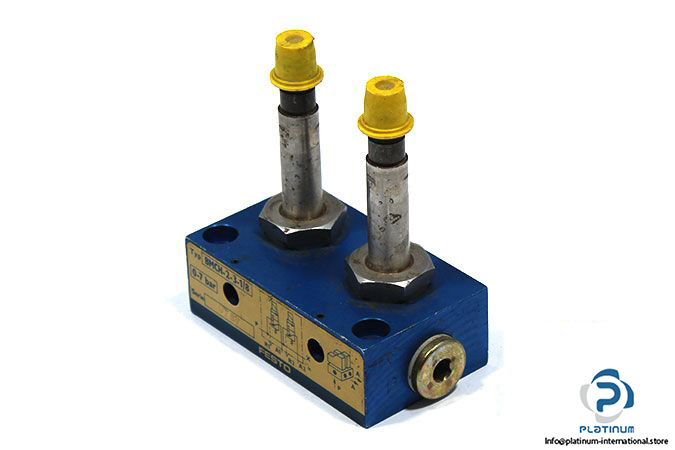

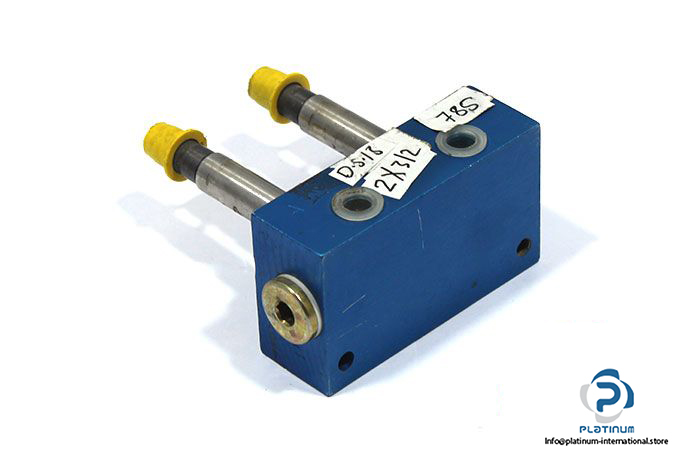

FESTO BMCH-2-3-1/8 DOUBLE SOLENOID VALVE

The FESTO BMCH-2-3-1/8 is a robust and compact double solenoid valve engineered for reliable pneumatic control. Featuring a poppet valve design with spring return, this unit is electrically actuated and suitable for a wide range of air applications.

Manufacturer: FESTO

Type: Double Solenoid Valve

Model: BMCH-2-3-1/8

Part No.: 6686

Fluid	Air
Design	Poppet valve with spring return
Function	2x3/2-way, monostable, closed
Type of Actuation	Electrically
Operating Pressure	-0.95 to 7 bar
Nominal Flow Rate	160 l/min
Pneumatic Connection	G1/8 / G1/4
Material	Aluminum
Ambient Temperature	-5 to 40 °C
