Festo 6711 Round Cylinder
Gebraucht
Auf Lager2 EinheitenVersandbereit
Round Cylinder
The Festo DSN-25-50–P-S2 is a stainless steel double-acting round cylinder with a 25 mm bore and 50 mm stroke. It features dual rod output and non-adjustable internal cushioning for efficient pneumatic control in industrial settings.25ActingAutomationboreCylinderDoubleDSN-25-50--P-S2FestoIndustrialmmPneumaticPneumaticsRoundstainlessSteel
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

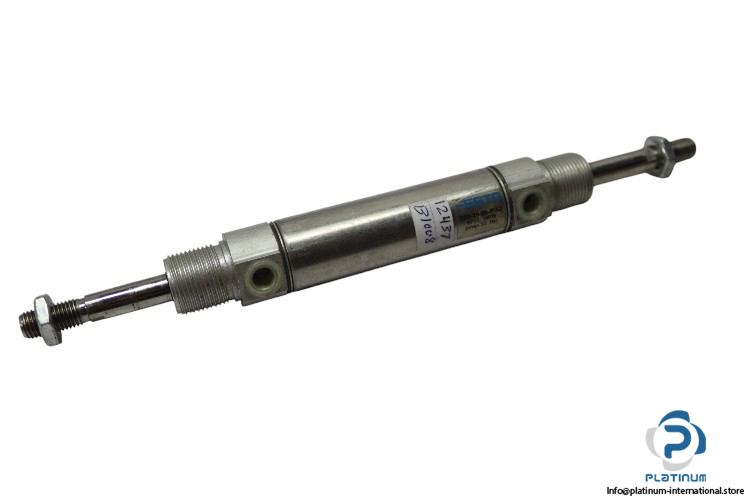

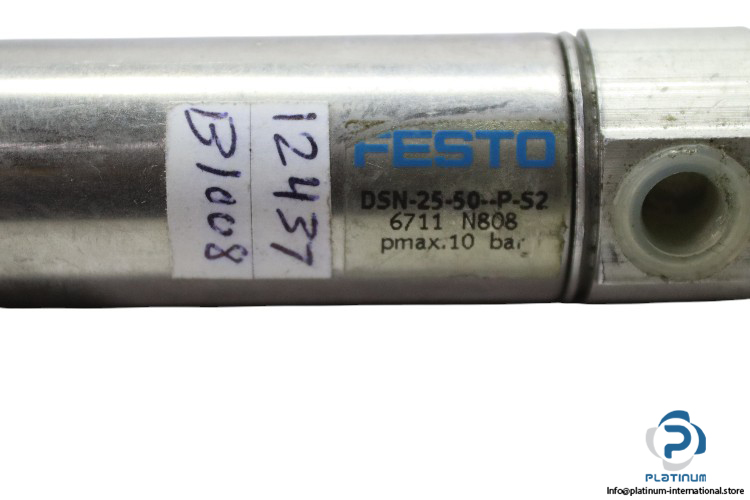

Festo DSN-25-50--P-S2 “ Round Cylinder
The Festo DSN-25-50--P-S2 is a double-acting pneumatic round cylinder engineered for compact and efficient motion control in industrial automation. Built with high-grade materials and designed for reliable performance, it supports precise linear movement with internal cushioning and dual rod output.
Manufacturer: Festo
Type: Round Cylinder
Model: DSN-25-50--P-S2
Part No.: 6711
| Bore Diameter | 25 mm |
| Stroke | 50 mm |
| Operating Medium | Compressed air |
| Pneumatic Connection | G1/8 |
| Type of Cushioning | Internal cushioning ring (non-adjustable) |
| Mode of Operation | Double acting |
| Variants | Rod on both sides |
| Shape | Circular |
| Max. Operating Pressure | 10 bar |
| Ambient Temperature | -20 to 80°C |
| Material of Cap | Wrought aluminum alloy |
| Material of Seals | NBR, TPE-U(PU) |
| Material of Piston Rod | Stainless high-alloy steel |
| Material of Barrel/Housing | Stainless high-alloy steel |
