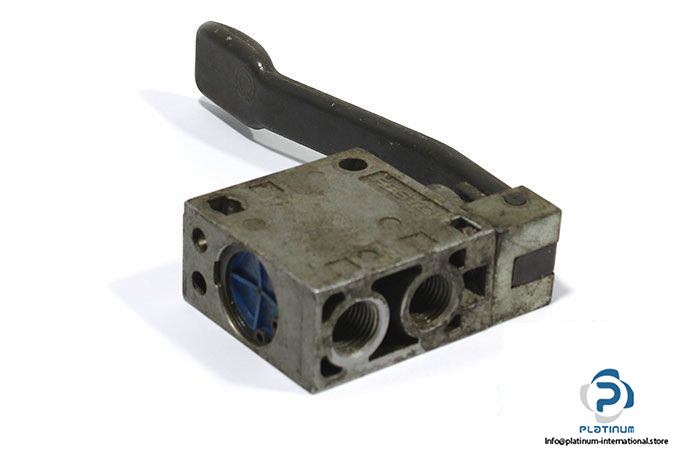

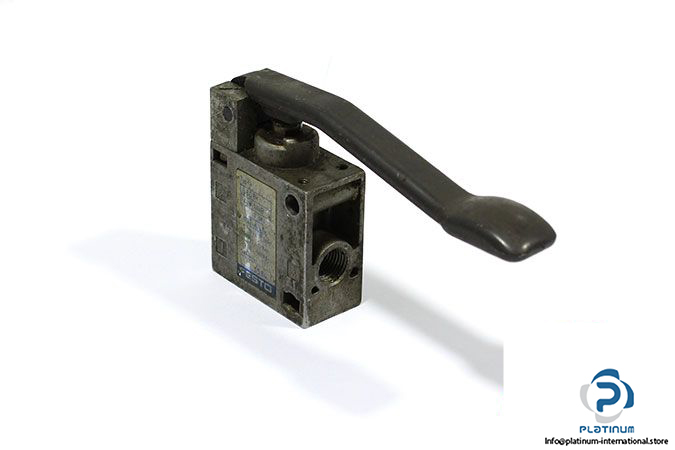

Festo 6808 Stem Actuated Valve With Lever

Name: FESTO 6808 STEM ACTUATED VALVE WITH LEVER
SKU: 990518
Availability: LimitedAvailability

Gebraucht

Auf Lager1 EinheitVersandbereit

STEM ACTUATED VALVE

FESTO V-3-1/4B stem actuated valve with 3/2-way monostable function, poppet seat design, and mechanical actuation for air systems up to 10 bar.

SKU

990518

Kategorie

Pneumatic Valves

Zustand

Gebraucht

3/2-way Actuated Aluminium Cast Control Die Festo G1/4 Mechanical Pneumatic Poppet Seat Stem V-3-1/4-B Valve

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

FESTO V-3-1/4B STEM ACTUATED VALVE

The FESTO V-3-1/4 B is a durable and precise stem actuated valve, engineered for effective mechanical control in pneumatic applications. With a robust aluminium die cast body and reliable 3/2-way monostable function, it offers dependable performance under varying pressure and temperature conditions.

Manufacturer: FESTO

Type: Stem Actuated Valve

Model: V-3-1/4-B

Part No.: 6808

Fluid	Air
Design	Poppet seat
Function	3/2-way, closed, monostable
Type of Actuation	Mechanically
Medium Pressure	-0.95 ... 10 bar
Nominal Flow Rate	600 l/min
Actuating Force	70 N
Pneumatic Connection	G1/4
Material	Aluminium die cast
Ambient Temperature	-10 / 60 °C
