INTELLIGENT SERVO MOTOR
Festo MTR-ECI-52S-EG14-R2CO-SA delivers 4.12 Nm torque with integrated encoder and gear ratio of 13.73, designed for industrial automation, paired with a Kählig synchronous servo motor for precise performance.24VDCAutomationDriveECM63X60/I+P52I+IGO500/2EncoderFestoHighIndustrialIntegratedIntelligentKähligmotorMTR-ECI-52S-EG14-R2CO-SAServoSynchronousTorque
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

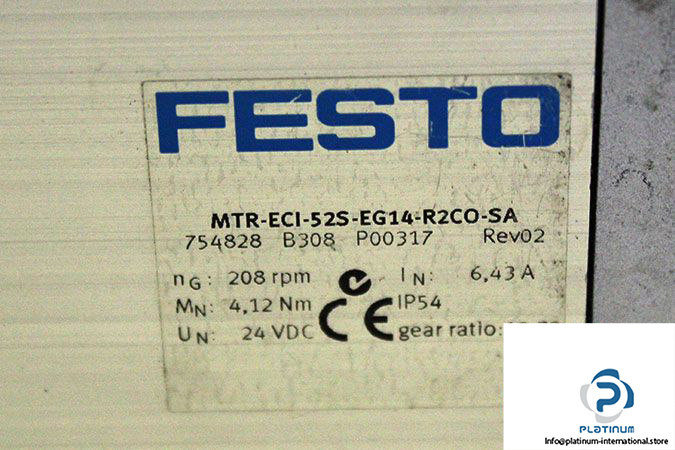

FESTO MTR-ECI-52S-EG14-R2CO-SA INTELLIGENT SERVO MOTOR
The Festo MTR-ECI-52S-EG14-R2CO-SA is a high-efficiency intelligent servo motor designed for advanced automation systems. With integrated magnetic absolute encoder and optimized gearing unit, it offers high torque, precision, and compact integration. Paired with a Kählig synchronous servo motor, this unit is ideal for demanding industrial environments requiring synchronized motion control.
Manufacturer: Festo
Type: Intelligent Servo Motor
Model: MTR-ECI-52S-EG14-R2CO-SA
Part No: 754828
Attachment Details
| Size | 52 |
| Nominal Voltage | 24 VDC |
| Nominal Current | 6.43 A |
| Peak Current | 15 A |
| Rated Speed | 208 rpm |
| Rated Torque | 4.12 Nm |
| Nominal Power | 125 W |
| Gear Ratio | 13.73 |
| Gearing Unit Output Speed | 290 rpm |
| Gearing Unit Output Torque | 3.08 Nm |
| Encoder Type | Magnetic Absolute Encoder (integrated) |
| Ambient Temperature | 0 / 40 °C |
| Material | Aluminum |
| Insulation Class | F |
| Protection Class | IP54 |

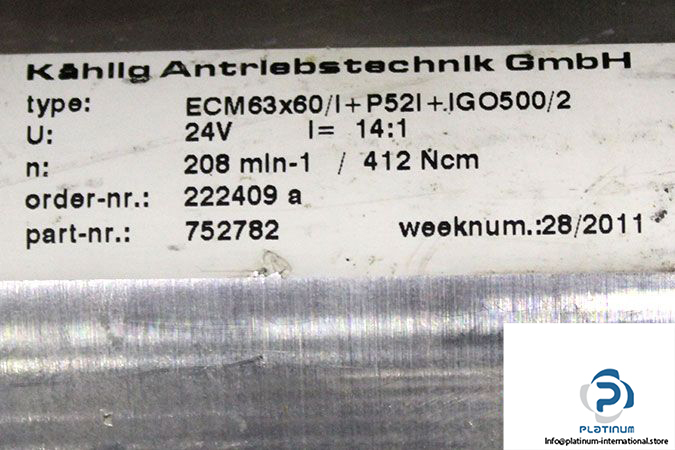

| Part No. | 222409 a |
| Part No. | 752782 |
| Voltage | 24 VDC |
| Speed | 208 rpm |
| Torque | 412 Ncm |
| Ratio | 14:1 |
