PNEUMATIC VALVE
FESTO VL/O-3-1/8-B 3/2-way monostable pneumatic valve with poppet seat design, G1/8 connection, and wide pressure range for air control applications.
Gebraucht
Auf Lager 50,00$
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

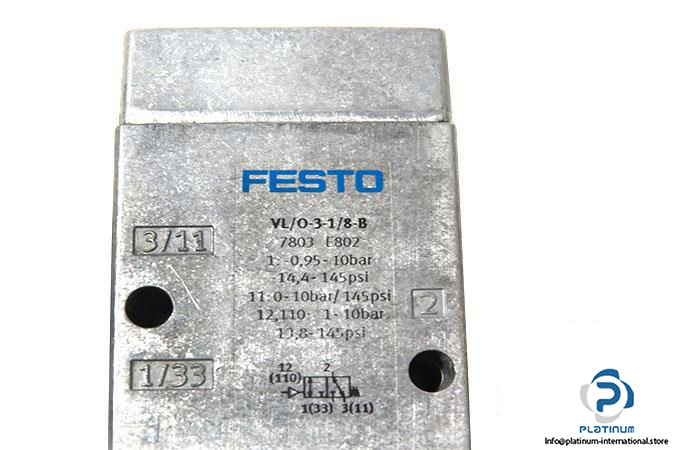

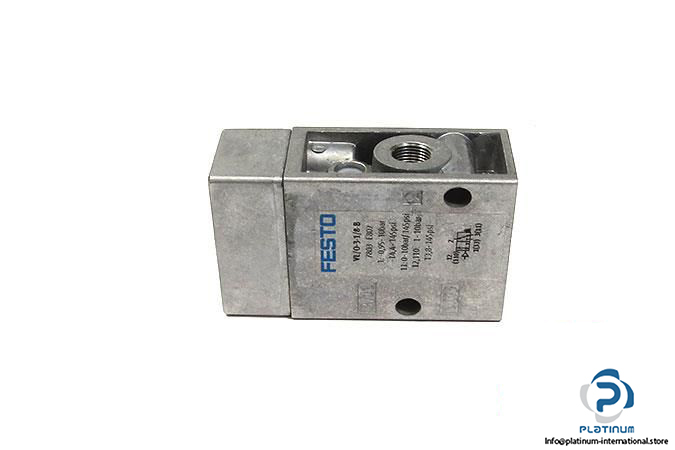

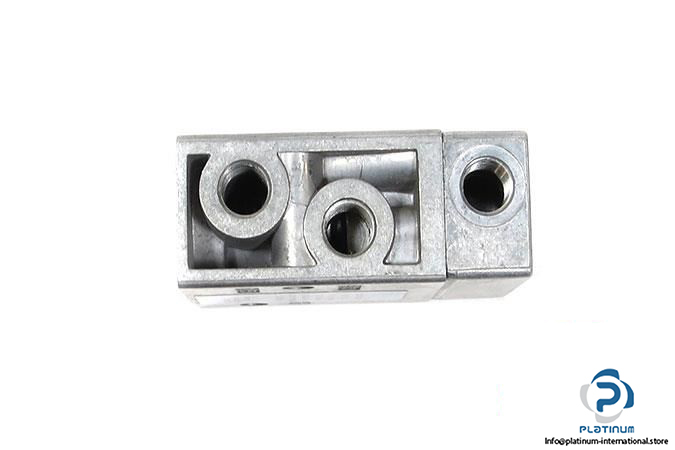

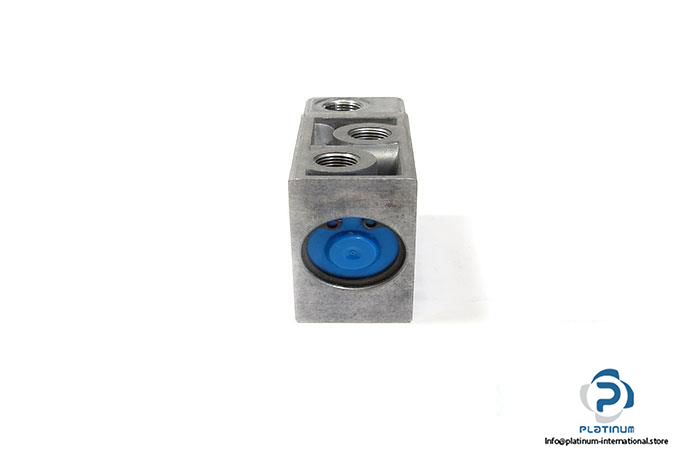

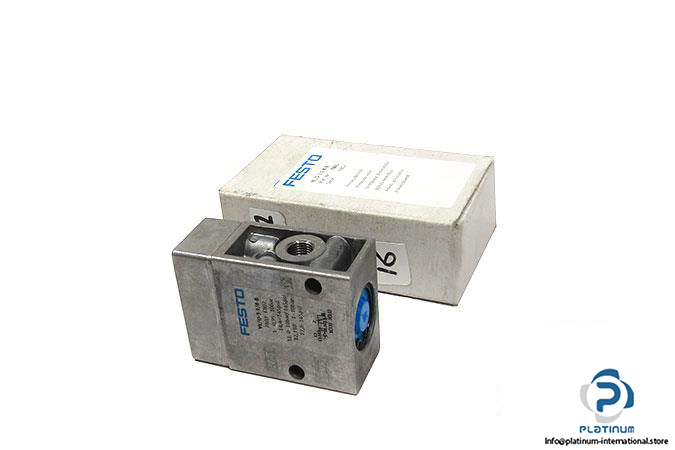

FESTO VL/O-3-1/8-B PNEUMATIC VALVE
The FESTO VL/O-3-1/8-B is a high-performance pneumatic valve engineered for precision air control in industrial applications. Its 3/2-way, monostable design with poppet seat configuration ensures reliable operation across a wide pressure range, making it ideal for demanding environments.
Manufacturer: FESTO
Type: Pneumatic Valve
Model: VL/O-3-1/8-B
Part No.: 7803
| Fluid | Air |
| Design | Poppet seat |
| Valve Function | 3/2-way, monostable, open/closed |
| Type of Actuation | Pneumatically |
| Operating Pressure | -0.95 to 10 bar |
| Pilot Pressure | 1 to 10 bar |
| Nominal Flow Rate | 500 l/min |
| Pneumatic Connection | G1/8 |
| Material | Die-cast aluminium |
| Ambient Temperature | -10 to 60 °C |
