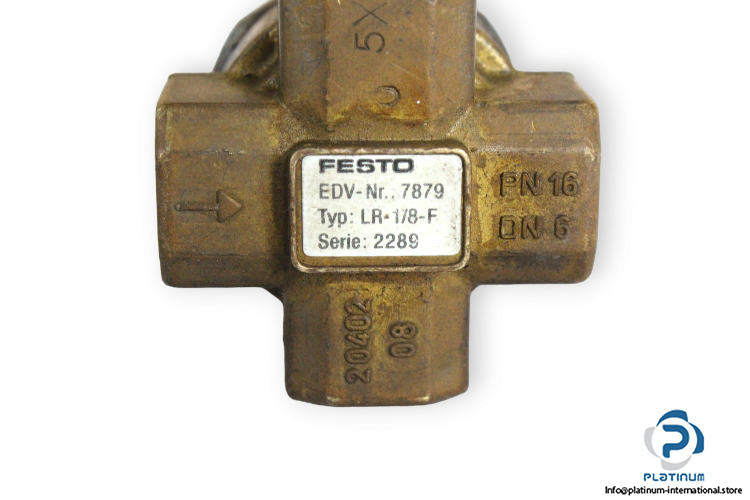

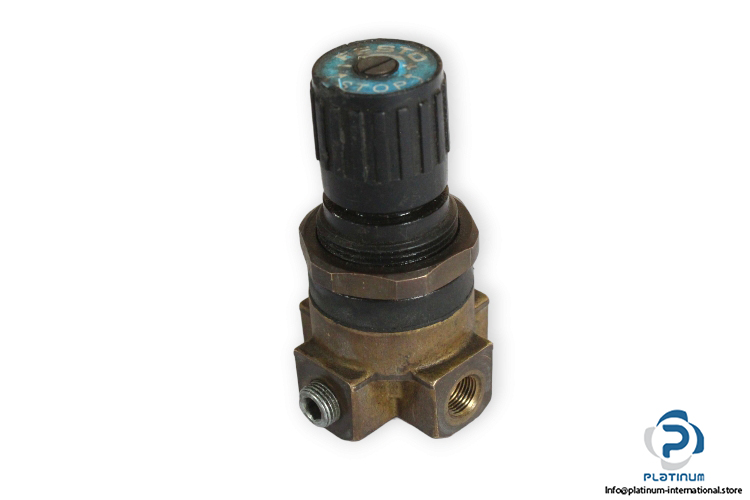

Festo 7879 Pressure Regulator

Manufacturer: FESTO
Type: Pressure Regulator
Model: LR-1/8-F
Part No.: 7879

Actuator lock: Rotary knob with lock
Design structure: Diaphragm regulator
Pressure gauge: Prepared for G1/8
Pressure regulation range: 0.5 … 12 bar
Inlet pressure 1: 1 … 20 bar
Max. pressure hysteresis: 0.2 bar
Standard nominal flow rate: 420 l/min
Medium: Compressed air
Ambient temperature: -10 … 80 °C
Pneumatic connection, port 1: G1/8
Pneumatic connection, port 2: G1/8
Housing Material: Copper alloy
