Festo 7959 Single Solenoid Valve
Neu
Auf Lager4 EinheitenVersandbereit
75,00$
SINGLE SOLENOID VALVE
FESTO MFH-3-1/4-S single solenoid valve with poppet seat design, 3/2-way function, and 800 l/min flow rate for efficient pneumatic control.
Gebraucht
Auf Lager
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

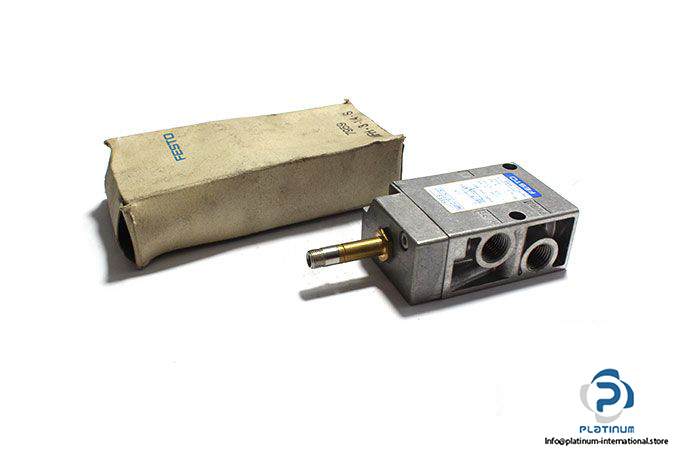

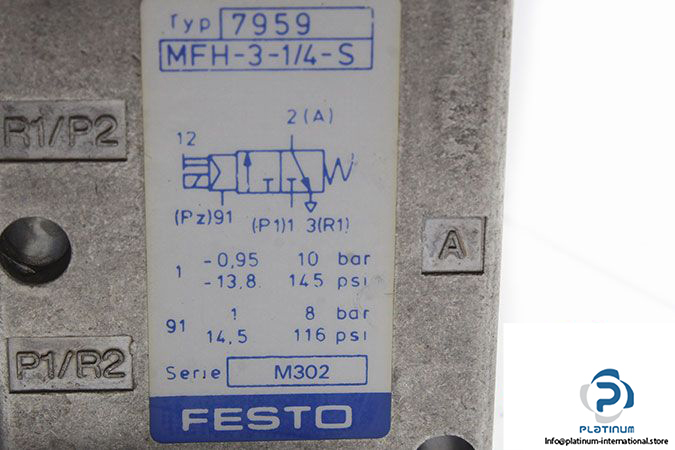

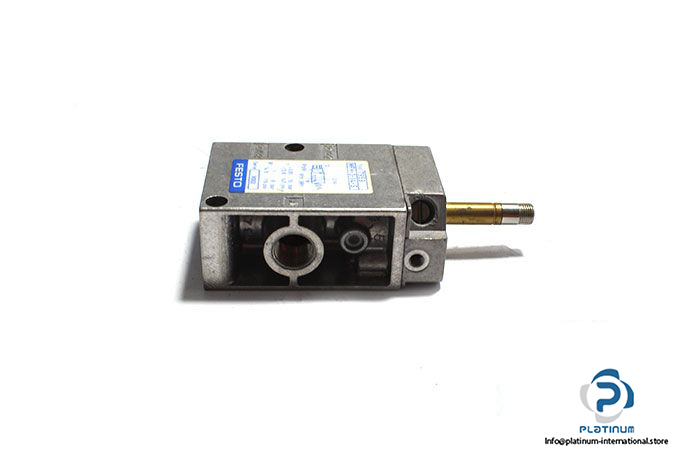

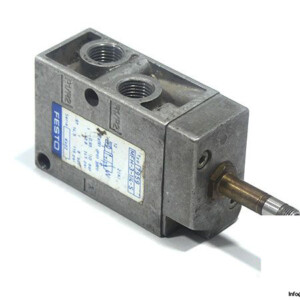

FESTO MFH-3-1/4-S SINGLE SOLENOID VALVE
The FESTO MFH-3-1/4-S is a high-performance single solenoid valve designed for fast and precise pneumatic control. Engineered with a poppet seat design and robust die-cast aluminium body, this valve supports high flow rates and reliable operation under varying industrial conditions.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MFH-3-1/4-S
Part No.: 7959
| Fluid | Air |
| Design | Poppet seat |
| Function | 3/2-way, closed, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | -0.95 to 10 bar |
| Pilot Pressure | 1 to 8 bar |
| Nominal Flow Rate | 800 l/min |
| Pneumatic Connection | G1/4 |
| Material | Die-cast aluminium |
| Ambient Temperature | -5 to 40 °C |
