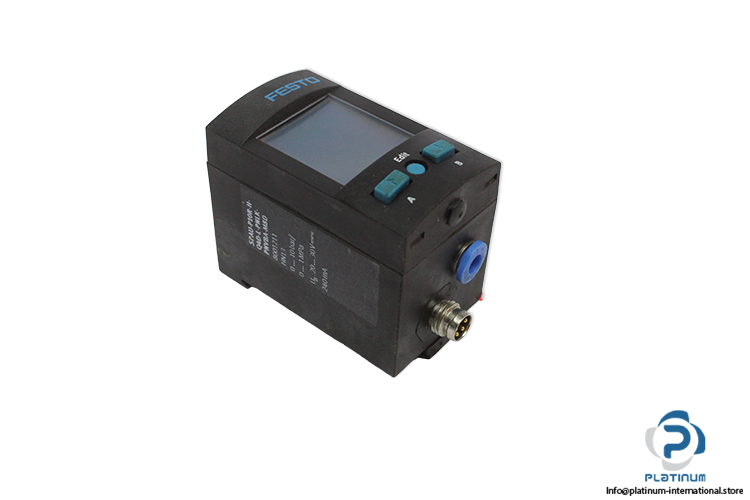

Festo 8001211 Pressure Sensor

Auf Lager1 EinheitVersandbereit

Pressure Sensor Electronic pressure sensor from Festo for compressed air applications, featuring dual switch outputs, analog output options, illuminated LCD display, and Io-Link® communication for industrial automation systems.

Hersteller
FESTO
SKU
1102421
Zustand
Gebraucht
Teilen
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Part No.8001211
Pressure Measuring Range0 … 10 bar / 0 … 1 MPa
MediumCompressed Air
Switching Output2 x PNP or 2 x NPN Switchable
Switching Element FunctionNC / NO Contact Switchable
Analog Output0 - 10 V / 4 - 20 mA / 1 - 5 V
Output Current Max.100 mA
Operating Voltage Range20 … 30 V DC

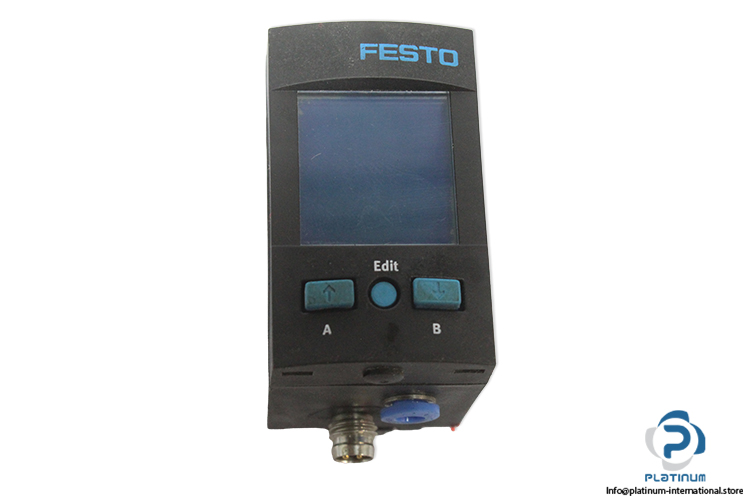

Display TypeIlluminated LCD
Displayable UnitMPa / bar / inH2O / inHg / kPa / kgf/cm² / mmHg / psi
Io-Link®, Protocol Version DeviceV 1.1
Io-Link®, ProfileSmart Sensor Profile
Io-Link® Communication ModeCom2 (38,4 KBd)
Io-Link®, Process Data Width Out0 Byte
Io-Link® Process Data Width In2 Byte
Io-Link® Process Data Content In14 Bit PDV (Pressure Measurement) / 2 Bit BDC (Pressure Monitoring)
Io-Link® Data Memory Required500 Byte

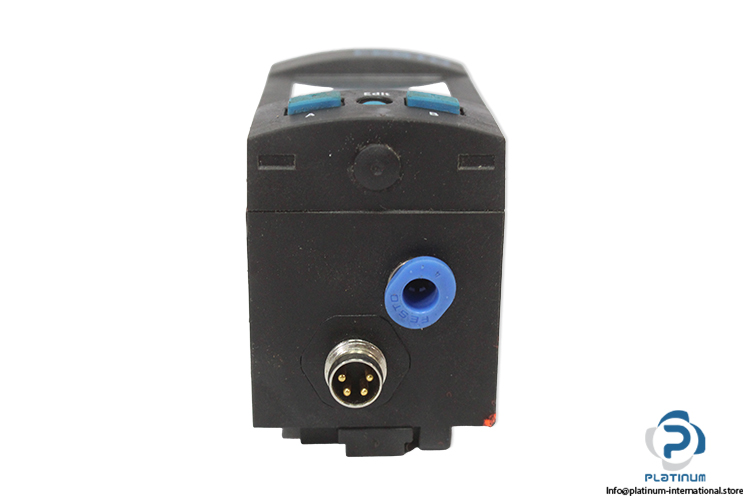

Electrical ConnectionM8 Connector 4-Pin A-Coded
MaterialPA-Reinforced
Protection ClassIP65
Medium / Ambient Temperature0 … 50 °C
Stock KeyJO-004
ConditionUsed
SKU1102421
Weight0,05
Festo 563796 Flow Sensor
Neu

FESTO

Festo 563796 Flow Sensor

SKU: 1104550

Menge: 1

811,11$
Festo 529817 Soft Start Valve
Neu

FESTO

Festo 529817 Soft Start Valve

SKU: 1104610

Menge: 1

Auf Anfrage erhältlich
Festo 563796 Flow Sensor
Neu

FESTO

Festo 563796 Flow Sensor

SKU: 1104551

Menge: 1

888,88$
Festo 11911410 Pneumatic Service Unit Combination
Neu

FESTO

Festo 11911410 Pneumatic Service Unit Combination

SKU: 1104553

Menge: 2

Auf Anfrage erhältlich
Festo 162635 Fine Filter
Neu

FESTO

Festo 162635 Fine Filter

SKU: 1104536

Menge: 3

Auf Anfrage erhältlich
Gefran TKG-E-1-M-B2V5-H Pressure Switch
NeuAuf Anfrage verfügbar

Gefran TKG-E-1-M-B2V5-H Pressure Switch

SKU: 984066

Auf Anfrage verfügbar

190,00$
Filter-Profitlich V08 Pressure Switch
Neu

FILTER-PROFILTICH

Filter-Profitlich V08 Pressure Switch

SKU: 1003606

Menge: 1

120,00$
Amot 4140CK1E11AAO-EE Single Step Pressure Switch
Gebraucht

Amot 4140CK1E11AAO-EE Single Step Pressure Switch

SKU: 572360

Menge: 2

Auf Anfrage erhältlich
Johnson Controls P233A-10-PA Pressure Switch
Neu

JOHNSON

Johnson Controls P233A-10-PA Pressure Switch

SKU: 981218

Menge: 1

75,00$
Rexroth 0 821 100 022 Pressure Switch
Gebraucht

REXROTH

Rexroth 0 821 100 022 Pressure Switch

SKU: 1055838

Menge: 1

Auf Anfrage erhältlich
Platinum International
Überschuss, Neu & Gebraucht – Immer zuverlässig
FESTO SKU: 1102421
Festo 8001211 Pressure Sensor
Festo 8001211 Pressure Sensor
PreisAuf Anfrage
Lager1 Auf Lager
HerstellerFESTO
KategoriePressure Switches
ZustandGebraucht
SKU1102421
Pressure Sensor Electronic pressure sensor from Festo for compressed air applications, featuring dual switch outputs, analog output options, illuminated LCD display, and Io-Link® communication for industrial automation systems.
Beschreibung
Part No.8001211
Pressure Measuring Range0 … 10 bar / 0 … 1 MPa
MediumCompressed Air
Switching Output2 x PNP or 2 x NPN Switchable
Switching Element FunctionNC / NO Contact Switchable
Analog Output0 - 10 V / 4 - 20 mA / 1 - 5 V
Output Current Max.100 mA
Operating Voltage Range20 … 30 V DC
Display TypeIlluminated LCD
Displayable UnitMPa / bar / inH2O / inHg / kPa / kgf/cm² / mmHg / psi
Io-Link®, Protocol Version DeviceV 1.1
Io-Link®, ProfileSmart Sensor Profile
Io-Link® Communication ModeCom2 (38,4 KBd)
Io-Link®, Process Data Width Out0 Byte
Io-Link® Process Data Width In2 Byte
Io-Link® Process Data Content In14 Bit PDV (Pressure Measurement) / 2 Bit BDC (Pressure Monitoring)
Io-Link® Data Memory Required500 Byte
Electrical ConnectionM8 Connector 4-Pin A-Coded
MaterialPA-Reinforced
Protection ClassIP65
Medium / Ambient Temperature0 … 50 °C
Stock KeyJO-004
ConditionUsed
SKU1102421
Weight0,05
Technische Spezifikationen
Weight0,05 kg
ManufacturerFESTO
Type of ProductPressure Sensor

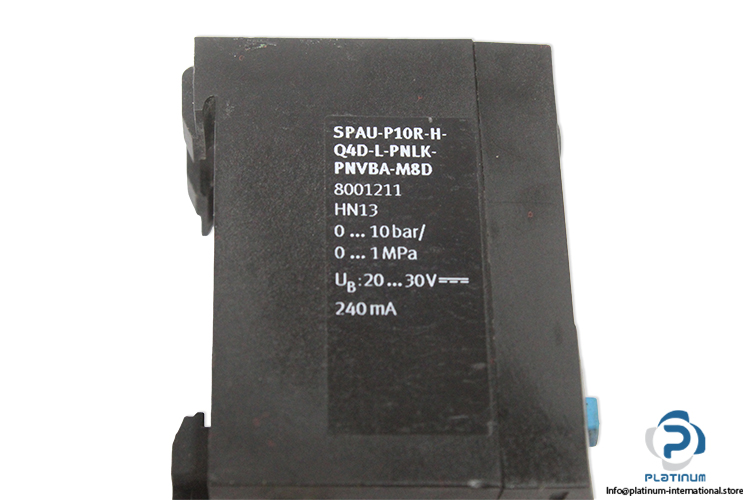

ModelSPAU-P10R-H-Q4D-L-PNLK-PNVBA-M8D
