Festo 8984 Foot Valve
Neu
Auf Lager2 EinheitenVersandbereit
FOOT VALVE
FESTO F-3-1/4-B manually operated 3/2-way foot valve with die-cast aluminum housing, 600 l/min flow rate, and G1/4 pneumatic connection.
Gebraucht
Auf Lager
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

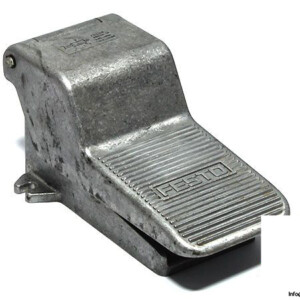

FESTO F-3-1/4-B FOOT VALVE
The FESTO F314B is a robust and ergonomically designed foot valve ideal for manual pneumatic control. Featuring a durable die-cast aluminum body, this 3/2-way poppet seat valve ensures safe and efficient operation in industrial air systems.
Manufacturer: FESTO
Type: Foot Valve
Model: F-3-1/4-B
Part No.: 8984
| Fluid | Air |
| Design | Poppet seat |
| Function | 3/2-way, closed, monostable |
| Type of Actuation | Manually |
| Operating Pressure | -0.95 to 10 bar |
| Nominal Flow Rate | 600 l/min |
| Pneumatic Connection | G1/4 |
| Material | Die-cast aluminum |
| Actuating Force | 50 N |
| Temperature Range | -10 to 60 °C |
