Festo 8985 Roller Lever Valve
Gebraucht
Auf Lager8 EinheitenVersandbereit
ROLLER LEVER VALVE
FESTO R-3-1/4-B mechanical roller lever valve, 3/2-way closed function with 600 l/min flow rate and die-cast aluminium body for pneumatic applications.3/2-wayAirAluminiumconnectiondie-castFestoG1/4IndustrialLeverMechanicalPneumaticR-3-1/4-BRollerValve
Neu
Auf Anfrage verfügbar 75,00$
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

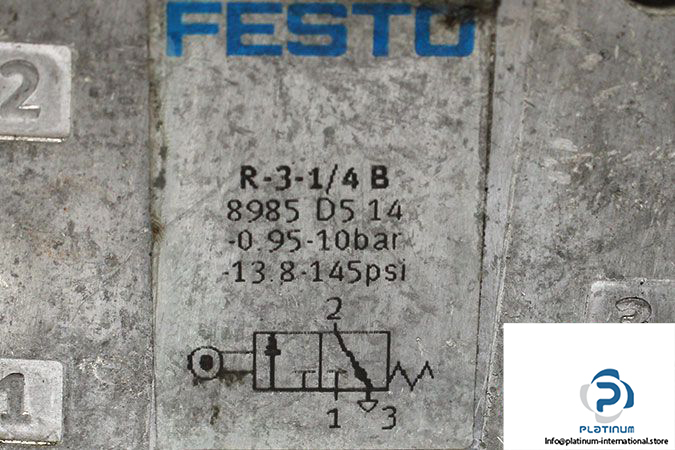

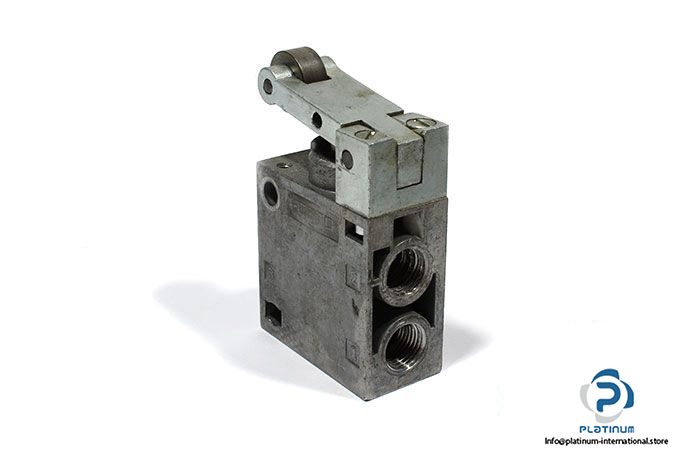

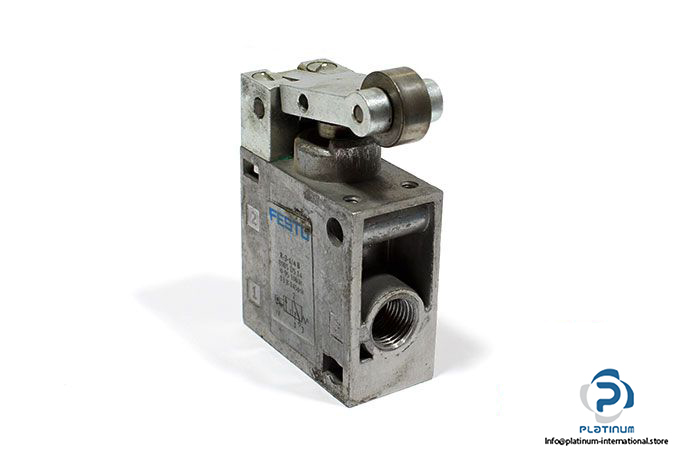

FESTO R-3-1/4-B ROLLER LEVER VALVE
The FESTO R-3-1/4-B is a robust mechanically actuated roller lever valve designed for reliable pneumatic control. Its 3/2-way closed, monostable function makes it suitable for high-performance automation systems. Built from die-cast aluminium, it ensures durability in a wide range of industrial environments.
Manufacturer: FESTO
Type: Roller Lever Valve
Model: R-3-1/4-B
Part No.: 8985
| Fluid | Air |
| Design | Piston seat |
| Function | 3/2-way, closed, monostable |
| Type of Actuation | Mechanically |
| Operating Pressure | -0.95 to 10 bar |
| Nominal Flow Rate | 600 l/min |
| Pneumatic Connection | G1/4 |
| Material | Die-cast aluminium |
| Ambient Temperature | -10 to 60 °C |
