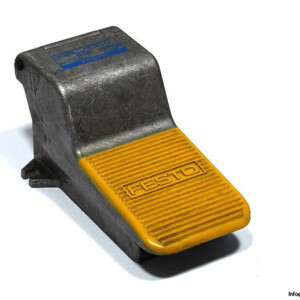

Festo 8992 Foot Valve
Neu
Auf Lager1 EinheitVersandbereit
FOOT VALVE
FESTO F-5-1/4-B manual foot valve with 5/2-way monostable function, poppet seat design, and 550 l/min flow rate for precise pneumatic control.
Gebraucht
Auf Lager
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

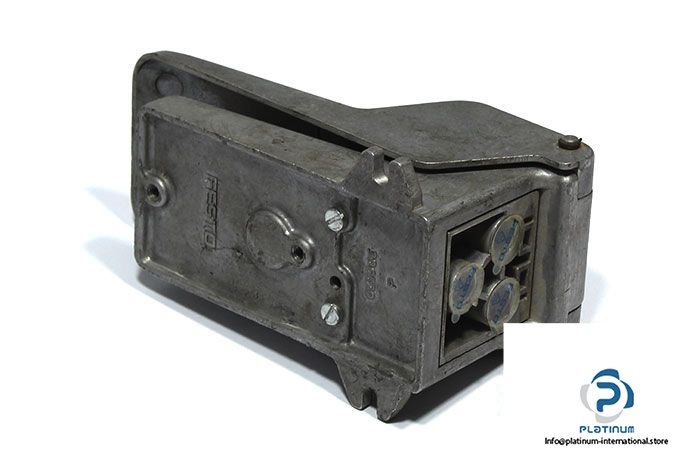

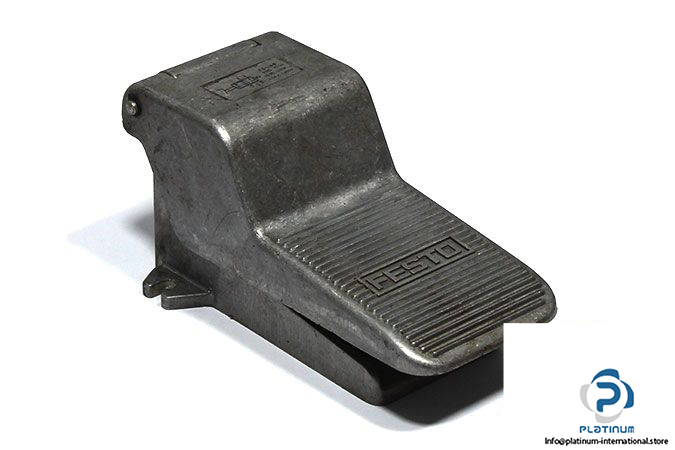

FESTO F-5-1/4-B FOOT VALVE
The FESTO F514B is a robust and efficient foot valve designed for precise manual pneumatic control in industrial systems. Built with a durable die-cast aluminum body and poppet seat design, this valve delivers reliable 5/2-way monostable functionality and high flow performance.
Manufacturer: FESTO
Type: Foot Valve
Model: F-5-1/4-B
Part No.: 8992
| Fluid | Air |
| Design | Poppet seat |

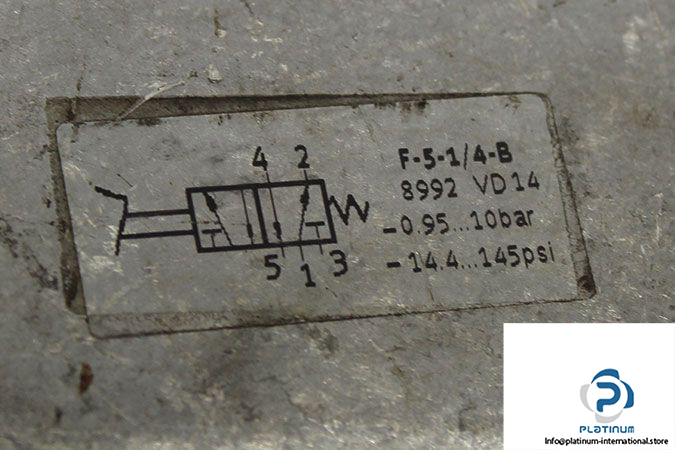

| Function | 5/2-way, monostable |
| Type of Actuation | Manually |
| Operating Pressure | -0.9 / 10 bar |
| Nominal Flow Rate | 550 l/min |
| Pneumatic Connection | G1/4 |
| Material | Die-cast aluminum |
| Actuating Force | 87 N |
| Temperature Range | -10 ... 60 °C |
