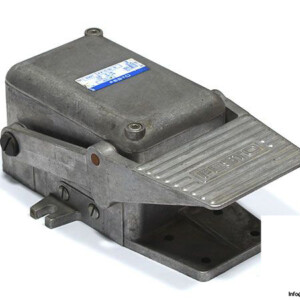

Festo 8997 Foot Valve With Detent
Gebraucht
Auf Lager6 EinheitenVersandbereit
FOOT VALVE WITH DETENT
FESTO FP-5-1/4-B foot valve with 5/2 bistable function, G1/4 connection, and poppet seat design. Ideal for manual pneumatic control systems.
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

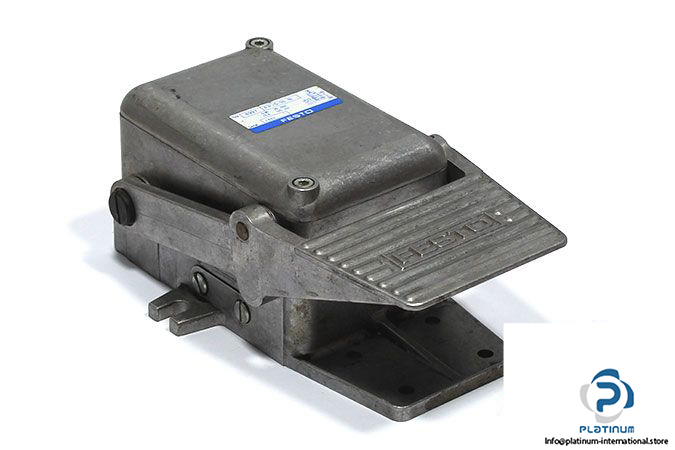

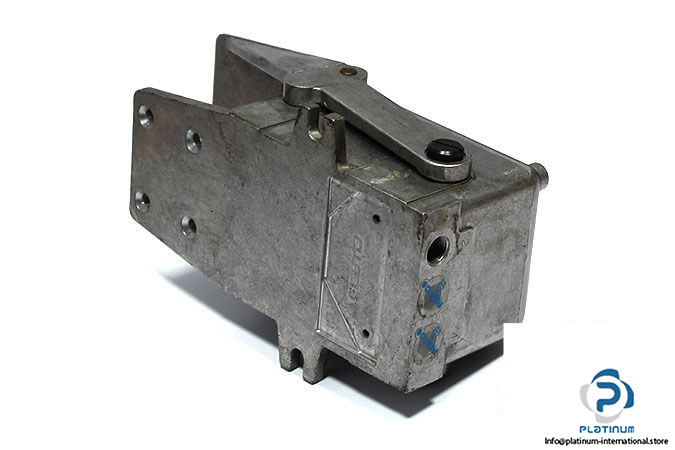

FESTO FP-5-1/4-B FOOT VALVE WITH DETENT
The FESTO FP514B foot valve with detent is a manually actuated, bistable 5/2 pneumatic valve designed for reliable air flow control in industrial systems. With a durable die-cast aluminium body and robust poppet seat design, it offers consistent performance and ergonomic control.
Manufacturer: FESTO
Type: Foot Valve with Detent
Model: FP-5-1/4-B
Part No.: 8997
| Fluid | Air |
| Design | Poppet seat |
| Function | 5/2 bistable |
| Type of Actuation | Manually |
| Operating Pressure | -0.9 to 10 bar |
| Nominal Flow Rate | 550 l/min |
| Pneumatic Connection | G1/4 |
| Material | Die-cast aluminium |
| Actuating Force | 82 N |
| Temperature Range | -10 to 60 °C |
