Festo 9199 Pneumatic Valve
Gebraucht
Auf Lager1 EinheitVersandbereit
PNEUMATIC VALVE
FESTO VL-5-1/4 pneumatic valve with 5/2-way monostable function and poppet seat design, ideal for air systems requiring up to 800 l/min flow.5/2-WayActuatedAirAutomationFestoflowG1/4HighIndustrialMonostablePneumaticPneumaticallyValveVL-5-1/4
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

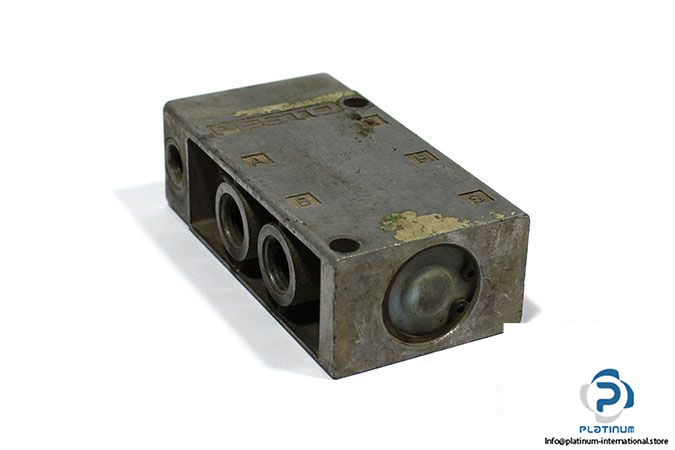

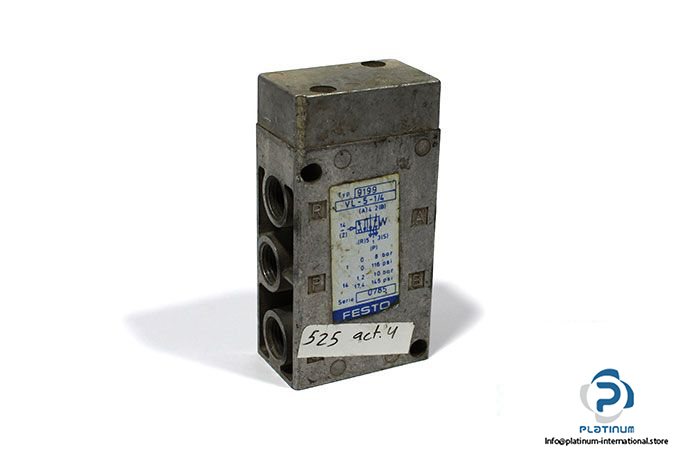

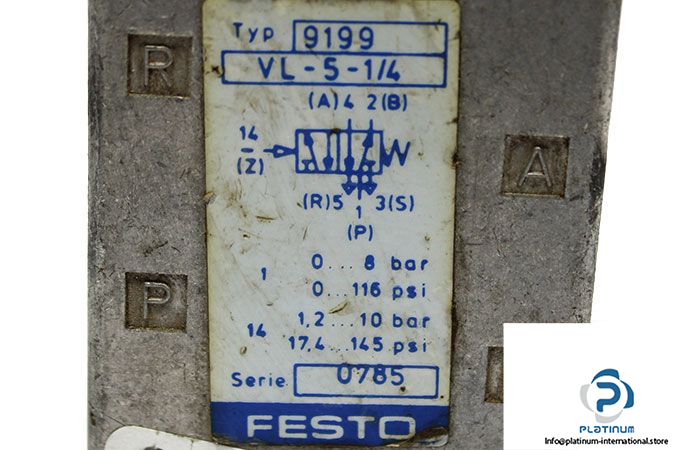

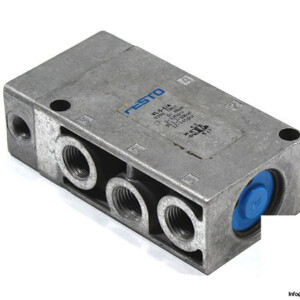

FESTO VL-5-1/4 PNEUMATIC VALVE
The FESTO VL-5-1/4 is a robust and reliable pneumatic valve designed for high-performance automation systems. With a monostable 5/2-way configuration and pneumatically actuated poppet seat design, it delivers optimal flow control for air systems.
Manufacturer: FESTO
Type: Pneumatic Valve
Model: VL-5-1/4
Part No.: 9199
| Fluid | Air |
| Design | Poppet seat |
| Valve Function | 5/2-way, monostable |
| Type of Actuation | Pneumatically |
| Operating Pressure | 0 ... 8 bar |
| Pilot Pressure | 1.5 ... 10 bar |
| Nominal Flow Rate | 800 l/min |
| Pneumatic Connection | G1/4 |
| Material | Die-cast aluminum |
| Ambient Temperature | -10 / 60 °C |
