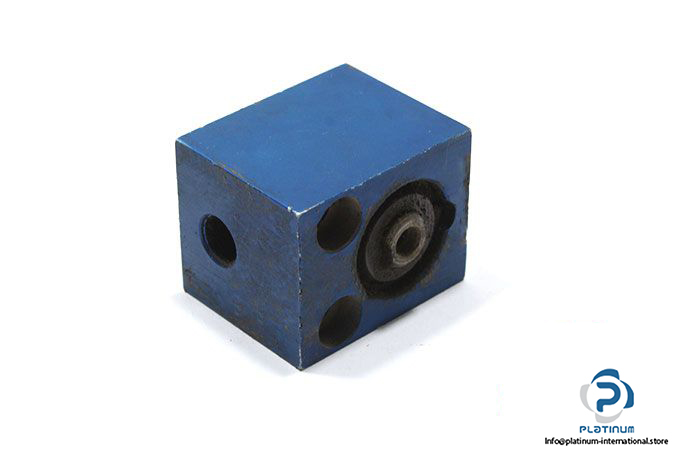

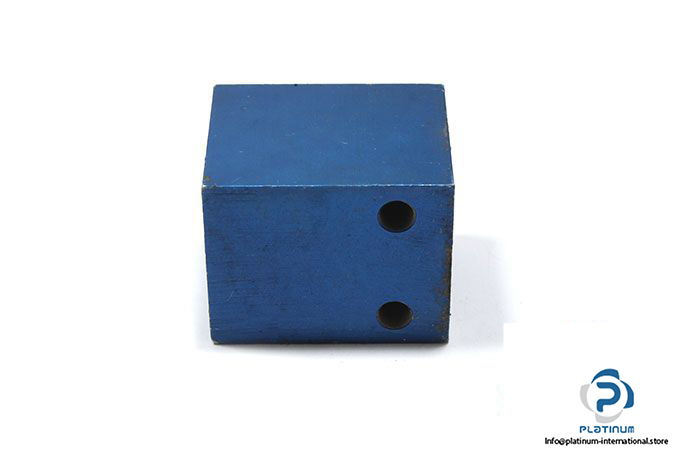

Festo 9700 Compact Cylinder

Manufacturer: FESTO

Type: Compact Cylinder

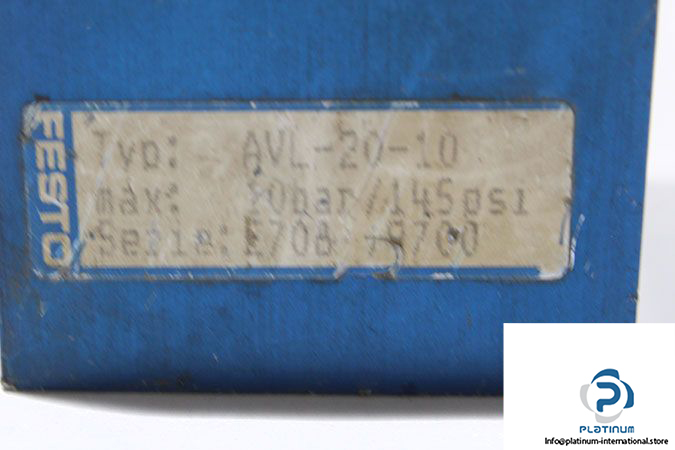

Model: AVL-20-10

Part No.: 9700



Stroke Length: 10 mm

Piston Diameter: 20 mm

Housing Material: anodized aluminium

Piston rod thread:

Max. Operating Pressure: 10 bar

Mode of operation: Single acting

Clamping Force: 170 N

Return Force: 5.9 N

Pneumatic Connection: G1/8

Temperature: -20 … 80 °C

Weight: 0.120 Kg
