Festo 9964 Single Solenoid Valve With 24VDC / 42VAC Coil
Gebraucht
Auf Lager1 EinheitVersandbereit
SINGLE SOLENOID VALVE
FESTO MFH-3-1/4 single solenoid valve with 3/2-way function, poppet seat design, and MSFG-24/42-50/60 coil for reliable air flow control.3/2-way4527AirAutomationcoilFestoIndustrialMFH-3-1/4MSFG-24/42-50/60PneumaticPoppetSeatSinglesolenoidValve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

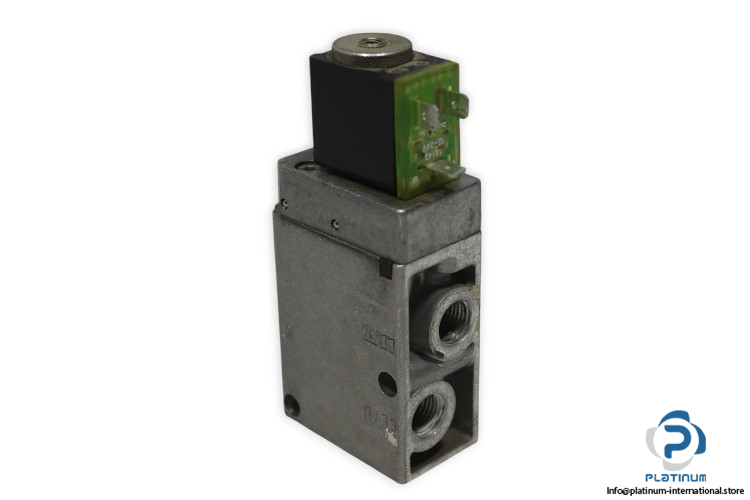

FESTO MFH-3-1/4 SINGLE SOLENOID VALVE WITH MSFG-24/42-50/60 COIL
The FESTO MFH-3-1/4 is a robust and high-performance single solenoid valve ideal for fast-response pneumatic applications. Engineered with a poppet seat design and 3/2-way closed, monostable function, it provides reliable flow control. Supplied with the FESTO MSFG-24/42-50/60 solenoid coil, this setup ensures dependable switching in industrial automation systems.
Manufacturer: FESTO
Type: Single Solenoid Valve

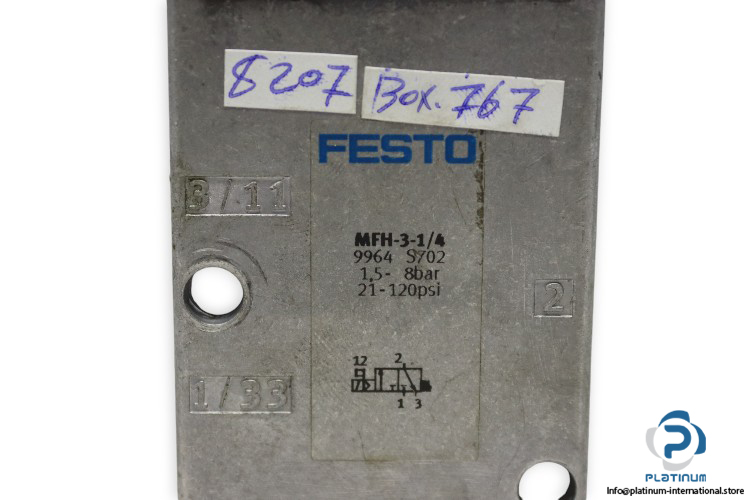

Model: MFH-3-1/4
Part No.: 9964
Valve Technical Information
- Fluid: Air
- Design: Poppet seat
- Function: 3/2-way, closed, monostable
- Type of Actuation: Electrically
- Operating Pressure: 1.5 … 8 bar
- Nominal Flow Rate: 800 l/min
- Pneumatic Connection: G1/4
- Material: Die-cast aluminum
- Ambient Temperature: -5 … 40 °C

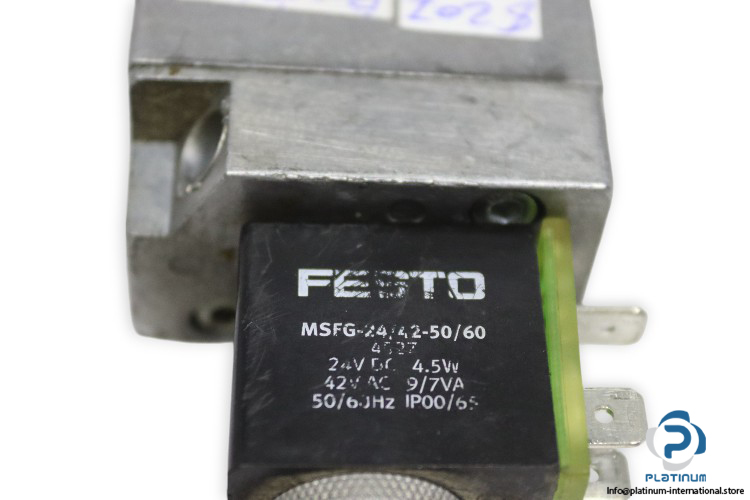

Solenoid Coil: FESTO 4527
Manufacturer: FESTO
Type: Solenoid Coil
Model: MSFG-24/42-50/60
Part No.: 4527
Coil Technical Information
- Supply Voltage: 24 V DC / 42 V AC
- Frequency: 50 / 60 Hz
- Power Consumption: 4.5 W / 9/7 VA
- Protection Class: IP00 / IP65
