Hydraulics & Pneumatics Pneumatic Actuators

Festo ADN-50-20-A-P-A-S2 Compact Cylinder

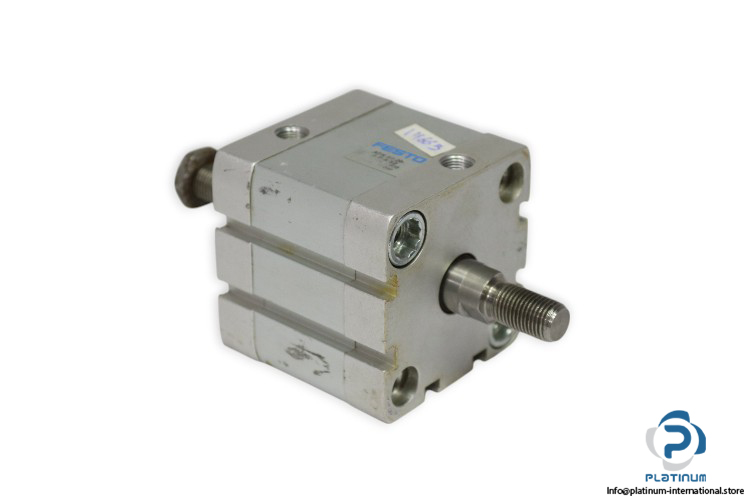

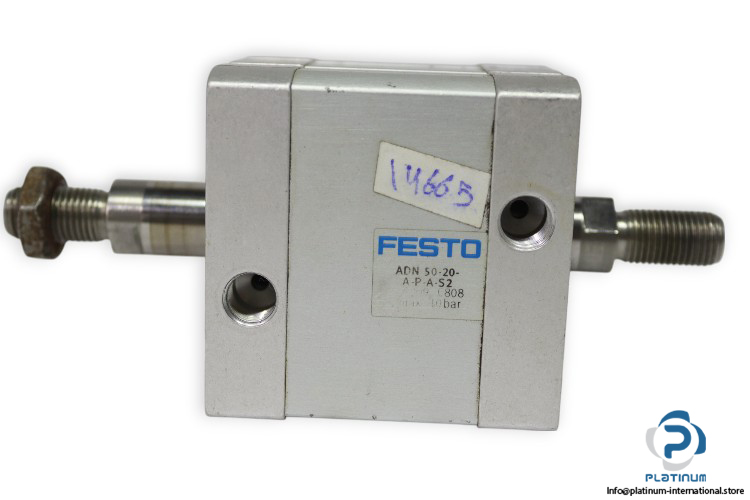

Name: FESTO ADN-50-20-A-P-A-S2 COMPACT CYLINDER
SKU: 1081131
Availability: LimitedAvailability

festo-ADN-50-20-A-P-A-S2-compact-cylinder-(used)

festo-ADN-50-20-A-P-A-S2-compact-cylinder-(used)-1

Gebraucht

Auf Lager1 EinheitVersandbereit

COMPACT CYLINDER

Festo ADN5020APAS2 is a high-performance double-acting compact cylinder featuring elastic cushioning and sensor compatibility for precise pneumatic actuation.

SKU

1081131

Kategorie

Pneumatic Actuators

Zustand

Gebraucht

50mm Acting Actuator ADN5020APAS2 Aluminum Automation Compact Cylinder Double Festo G1/8 High Industrial Piston Pneumatic Pressure Ready Sensor Short Stroke

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

FESTO ADN5020APAS2 COMPACT CYLINDER

The ADN5020APAS2 from Festo is a precision-engineered compact cylinder designed for space-saving pneumatic applications, ensuring reliable double-acting motion with integrated sensing support.

Manufacturer: Festo

Type: Compact cylinder

Model: ADN5020APAS2

Part No.: 536309

Ref. Code: C808

Stroke Length	20 mm
Piston Diameter	50 mm
Piston Rod End	Male External Thread on Both Sides
Operating Pressure	0.6 to 10 bar
Cushioning	Elastic Rings/Plates Both Ends
Position Sensing	For Proximity Sensor
Mode of Operation	Double-Acting
Ambient Temperature	-40 to 120 °C
Pneumatic Connection	G1/8
Flange Screws Material	Steel
Cover Material	Wrought Aluminum Alloy, Anodized
Piston Rod Material	High-Alloy Steel
Material of Cylinder Barrel	Wrought Aluminum Alloy, Smooth-Anodized
