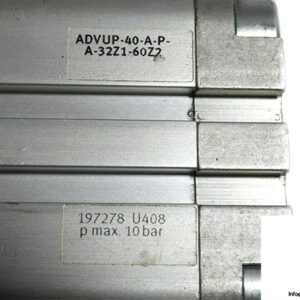

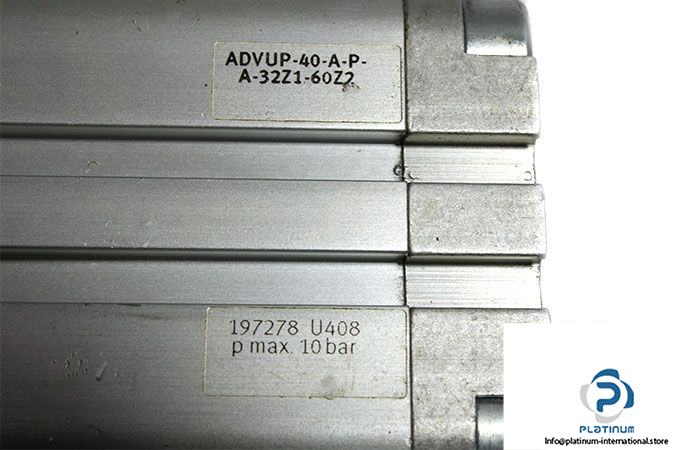

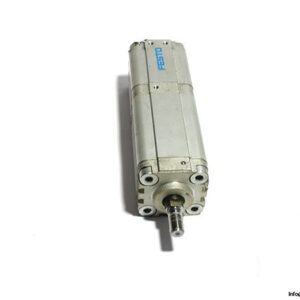

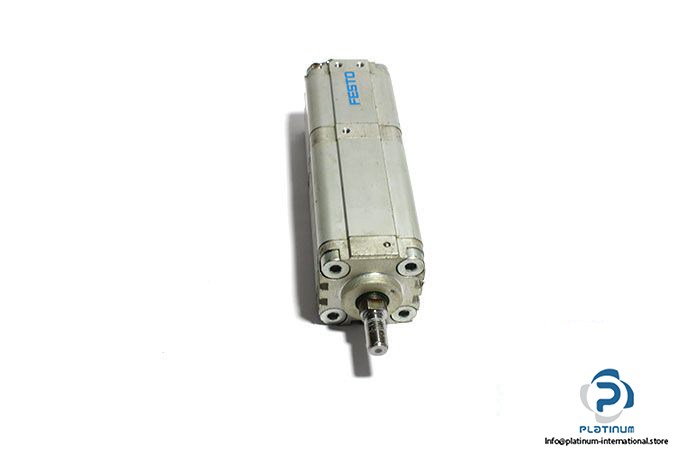

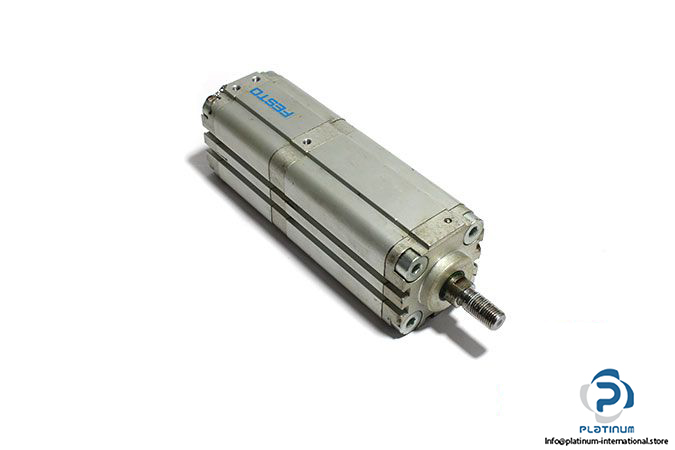

Festo ADVUP-40-A-P-A-32Z1-60Z2 Multi-Position Cylinder

Manufacturer: FESTO

Type: Multi-Position Cylinder

Model: ADVUP-40-A-P-A-32Z1-60Z2

Part No.: 197278

Materials

,,Cylinder Tube: Aluminium wrought alloy Smooth anodised

,,Piston rod: High-alloy steel

Stroke Length ( 1 ): 32 mm

Stroke Length ( 2 ): 60 mm

Piston Diameter: 40 mm

Piston rod thread: Male thread

Operating Pressure: 0.6 … 10 bar

Cushioning: Flexible cushioning rings/pads at both ends

Position Sensing: Via proximity sensor

Pneumatic Connection: 5 mm

Mode of operation: Double-Acting

Variant: Through piston rod

Temperature: -20 … 80 °C

Weight: 1.6 kg
