Festo DC-50-70 ISO Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
ISO Cylinder
The Festo DC-50-70 ISO Cylinder is a pneumatic actuator with a 50 x 70 mm stroke, G 1/4 connection, and 12 bar max pressure. It features a circular design and double-acting operation for industrial applications.1/4125070ActuatorAirAutomationbarboreCircularCompressedconnectionCylinderDC-50-70DoubleFestoGIndustrialISOmalemmOneOperationPneumaticPressureRODShapesideStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

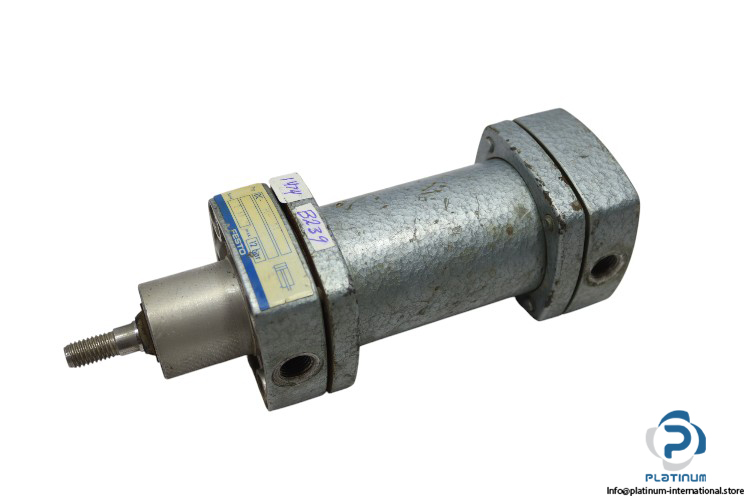

Festo DC-50-70 ISO Cylinder
The Festo DC5070 ISO Cylinder is a robust pneumatic actuator designed for reliable and efficient motion in automation systems. With a circular shape, double operation mode, and high-pressure capability, it ensures precision and durability across industrial applications.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DC-50-70
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke | 70 mm |
| Bore x Stroke | 50 x 70 mm |
| Rod Diameter | 12 mm |
| Frame Dimensions | 70 x 190 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Circular |
| Rod Direction | One Side |
